Selecting the wrong infrared wavelength for a vision system leads to severe consequences. You risk budget bloat, excess power consumption, or outright field failure. Long-Wave Infrared (LWIR) dominates the commercial and tactical thermal market today. However, it is not a universal solution for every monitoring challenge. Engineers and system integrators must understand exactly how these sensors interact with the physical world.
This guide breaks down the physical properties, operational return on investment, and hard limitations of an LWIR Thermal Camera. We explore why they excel in ambient environments and where they fall short. By understanding core metrics like thermal sensitivity and the Johnson Criteria, you can confidently validate your procurement decisions. You will learn to match the right sensor technology to your specific environmental constraints, ensuring long-term reliability and compliance.
Optimal for Ambient Temperatures: Operates in the 8–14 μm spectrum, making it the mathematical ideal (per Wien's Displacement Law) for detecting human and environmental heat (250–350 K).
Cost & SWaP Efficiency: Uncooled microbolometer designs deliver significantly lower Size, Weight, and Power (SWaP) consumption compared to cooled MWIR systems.
Regulatory Advantage: Provides deterministic presence detection without capturing facial details, naturally satisfying strict data privacy frameworks (e.g., GDPR).
Known Constraints: Cannot image through standard glass or water, and yields lower absolute resolution than SWIR due to diffraction limits.
The infrared spectrum spans a wide range. Engineers divide it into distinct bands for specialized imaging. Understanding this hierarchy helps you position long-wave technology against its alternatives. Short-Wave Infrared (SWIR, 1–3 μm) relies primarily on reflected light. Mid-Wave Infrared (MWIR, 3–5 μm) captures high-temperature thermal events and requires expensive cooling. Long-Wave Infrared (LWIR, 8–14 μm) detects ambient heat radiation.
| Infrared Band | Wavelength Range | Primary Detection Method | Optimal Target Temperature |
|---|---|---|---|
| SWIR | 1–3 μm | Reflected ambient starlight or artificial light | Varies (Relies on reflection, not emission) |
| MWIR | 3–5 μm | High-energy thermal radiation | Very High (e.g., engine exhaust, industrial furnaces) |
| LWIR | 8–14 μm | Ambient thermal radiation | Room Temperature (250–350 K) |
Why does long-wave infrared dominate standard surveillance? Physics provides the definitive answer. Objects near room temperature naturally emit peak thermal radiation around 10 μm. This aligns perfectly with the 8–14 μm band. According to Wien’s Displacement Law, human bodies and everyday environmental objects glow brightest in this specific wavelength. It makes long-wave sensors the mathematical ideal for human tracking and facility monitoring.
System architecture also sets this technology apart. Most long-wave systems utilize uncooled microbolometers. Manufacturers typically build these pixel arrays from Vanadium Oxide (VOx) or amorphous silicon. This uncooled design completely eliminates the need for bulky, failure-prone Stirling coolers. You gain a massive power advantage in the field. An uncooled camera often draws just 1 to 2 watts of power. In stark contrast, cooled mid-wave systems require 5 to 10 watts simply to maintain their cryogenic operational temperatures.
Integrating passive thermal imaging delivers compelling business value. We can contrast passive uncooled systems directly against active Near-IR (NIR) alternatives. Active systems require arrays of LED illuminators to flood a scene with infrared light. These LEDs degrade significantly over time. They typically lose 30% of their output capacity over a five-year period. You must eventually replace them to maintain visibility. Passive thermal sensors offer a longer, maintenance-free lifecycle. They require no external light sources to function, significantly reducing long-term maintenance burdens.
Complete concealment represents another major operational advantage. These cameras operate non-invasively. They emit absolutely zero energy into the environment. Tactical military applications rely heavily on this invisible operation to keep positions hidden from adversaries. Wildlife researchers also depend on passive observation. You avoid observer-effect behavioral changes because the equipment emits no visible glow. Studies show passive monitoring captures a much higher rate of natural nocturnal animal behaviors compared to active lighting.
Next, consider the unique legal advantages of thermal imaging. Many buyers view the lack of facial detail as a distinct flaw. You should reframe this characteristic as a massive commercial benefit. Deployments in healthcare facilities, open office environments, and public spaces demand strict privacy compliance. These cameras provide deterministic presence detection. You know exactly where a person is moving without ever exposing their identity. They inherently satisfy strict data privacy frameworks, including the European Union's GDPR.
Finally, these systems provide unmatched atmospheric resilience. Visible light cameras fail completely in heavy fog, smog, or smoke. The longer wavelengths of the 8–14 μm band easily pass through airborne particulates. They maintain high transmission rates through moderate rain and industrial dust. They keep your monitoring systems online when local weather conditions turn harsh.
Knowing exactly where to deploy these sensors maximizes your operational investment. They outshine traditional optics in several specific domains.
Perimeter security and short-to-medium range surveillance rely heavily on thermal detection. However, you should never trust simple marketing claims about "maximum range." Engineers use the Johnson Criteria instead. This military-derived framework calculates the actual required line-pairs across a target to validate detection capabilities.
| Johnson Criteria Level | Required Line Pairs | Operational Meaning |
|---|---|---|
| Detection | 1.0 | You can determine something is present in the scene. |
| Recognition | 3.0 | You can classify the object type (e.g., a human vs. a vehicle). |
| Identification | 6.0 | You can identify specific characteristics (e.g., a person holding a tool). |
Industrial predictive maintenance also benefits immensely from uncooled thermal sensors. You can detect thermal anomalies in complex electrical substations seamlessly. Inspectors evaluate building envelopes and high-speed manufacturing lines without interrupting daily workflows. The camera clearly highlights overheating transformer components or loose wiring connections long before they cause catastrophic failure.

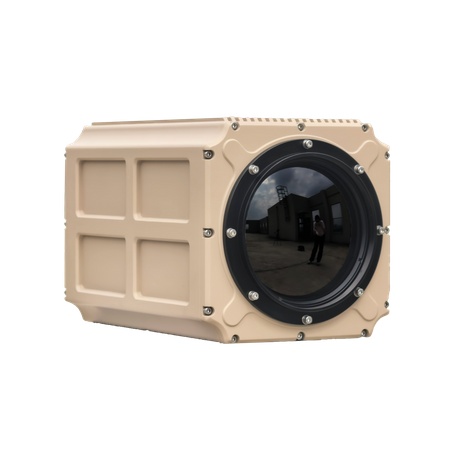

Harsh environment deployments demand careful mechanical packaging. A commercial IP54 plastic housing works perfectly for basic indoor security. Mission-critical deployments require ruggedized IP69K or MIL-STD-810 metal housings. They withstand high-pressure chemical washdowns and extreme mechanical shocks. Material selection is equally crucial for the optical path. Standard optical glass completely blocks long-wave thermal radiation. Engineers must specify expensive germanium or chalcogenide lenses. They often wrap camera bodies in hard-anodized aluminum to resist corrosive salt fog in maritime environments.
Despite its vast strengths, this technology faces hard physical boundaries. Recognizing these constraints early prevents costly system design failures. If you ignore these limitations, your deployment will struggle.
The Glass and Water Barrier: Long-wave radiation absolutely cannot penetrate standard silica glass or liquid water. To a thermal sensor, a standard glass window acts exactly like a thermal mirror. It simply reflects ambient background heat back into the lens. You cannot monitor individuals sitting inside a closed vehicle or looking out from behind a standard storefront window.
The Resolution Trade-off: You face a significant resolution penalty. We turn to the Rayleigh Criterion to explain this limitation. Longer wavelengths inherently lower the diffraction limit of an optical system. An 8–14 μm camera will never match the sharp edge-detail of a short-wave or visible-light sensor using the same optics size. Images will always appear slightly softer.
Long-Range Atmospheric Scattering: Some projects require extreme distance monitoring, such as 15–30 km maritime border surveillance. In these specific scenarios, mid-wave systems penetrate dense atmospheric water vapor and carbon dioxide much more effectively. For extreme ranges over large bodies of water, MWIR firmly outperforms uncooled long-wave systems.
High-Velocity Tracking Limits: Traditional uncooled microbolometers may blur when tracking exceptionally high-speed targets. They simply lack the microsecond integration times of cooled mid-wave InSb detectors. However, advanced Strained Layer Superlattice (SLS) detectors are rapidly bridging this performance gap. They allow faster snapshot speeds within the long-wave band.
You must evaluate specific engineering metrics when comparing different hardware models. Do not rely solely on pixel count. Hardware specifications and software processing together dictate the overall system performance.
Thermal Sensitivity (NETD): Look closely at the Noise Equivalent Temperature Difference (NETD). Buyers should seek values ranging from ≤18mK for premium systems down to 50mK for standard commercial units. Lower NETD equates directly to better image contrast. You desperately need low NETD in low-humidity environments or scenes with minimal temperature variance.
Thermal Time Constant (τth): We frame this specification as the standard metric for thermal latency. A 7–10 ms constant prevents motion blur effectively. Security applications require this baseline speed to track moving intruders accurately without leaving long thermal ghosting trails on the screen.
Non-Uniformity Correction (NUC) Mechanisms: You will eventually hear your camera produce a mechanical "click." The device momentarily freezes the video feed to recalibrate. This happens when internal temperatures shift by as little as 0.5°C. Buyers must understand this freeze. It heavily impacts continuous targeting or tracking setups. You may need shutterless designs for uninterrupted military applications.
Software and Algorithmic Enhancement: Raw hardware represents only half the final equation. Advanced processing determines final image clarity and usability. Specify requirements for edge-reinforcement, dynamic range optimization, and automated noise reduction algorithms. Modern software can dramatically increase effective detection ranges without changing the physical lens.
We see long-wave thermal imaging as the default choice for the vast majority of passive monitoring needs. It successfully handles 80% of commercial and industrial thermal applications today. Uncooled reliability, built-in privacy compliance, and ambient temperature sensitivity make it highly practical for system integrators.
You should define your specific DRI (Detect, Recognize, Identify) requirements before requesting quotes or evaluation units. Evaluate your environmental constraints thoroughly. Check if you face glass barriers, extreme humidity, or require long-range maritime observation. By accurately matching the underlying physics to your operational reality, you guarantee a robust, effective, and compliant deployment.
A: The camera uses a mechanical shutter to perform Non-Uniformity Correction (NUC). When ambient or internal temperatures shift slightly, sensor pixels drift out of alignment. The shutter closes momentarily to provide a uniform temperature reference block. The system recalibrates itself against this reference to maintain accurate temperature readings and a crisp image.
A: No. This is a persistent Hollywood myth. Thermal cameras only detect surface temperature differences. They cannot penetrate dense materials like drywall, brick, or standard winter clothing. If a heat source strongly warms a wall, the camera detects the warm wall itself, not the distinct object behind it.
A: Standard optical glass completely blocks long-wave infrared radiation. Manufacturers must use specialized materials like Germanium or Chalcogenide glass for the lenses. These expensive materials allow infrared wavelengths to pass straight through to the detector array. Without them, the camera would merely reflect its own internal heat signature.
