In modern surveillance, targeting, and electro-optical tracking systems, the choice of pan-tilt platform (PTZ) directly impacts performance, stability, and system integration. Among the most widely used configurations are U-type pan-tilt, radar pan-tilt, and T-type dual-payload pan-tilt systems.
Each architecture is optimized for different operational scenarios—from high-precision imaging to multi-sensor fusion. This article provides a clear, engineering-focused comparison to help you select the right solution.
The U-type pan-tilt system features a classic U-shaped yoke structure, where the payload is mounted between two arms. This symmetrical mechanical design provides excellent balance and rigidity.
High structural stability: Ideal for long-range imaging with minimal vibration
Strong load capacity: Suitable for heavy EO/IR payloads
Precise control: Supports fine angular positioning and smooth tracking
Environmental durability: Performs well under wind load and harsh conditions
Larger physical profile may increase system weight
Slightly more complex mechanical structure
Long-range thermal imaging systems
Border surveillance platforms
Maritime electro-optical tracking
Vehicle-mounted stabilized imaging systems
The radar pan-tilt system is specifically engineered for rotating radar antennas or large sensor arrays. It emphasizes torque output, continuous rotation, and structural robustness.
High torque drive system: Supports large radar or antenna payloads
Continuous 360° rotation: Ideal for scanning and detection applications
Heavy-duty construction: Designed for continuous operation
High reliability in mission-critical environments
Lower positioning precision compared to EO-focused systems
Typically optimized for rotational scanning rather than fine tracking
Bulkier and heavier than standard PTZ systems
Radar systems (ground surveillance radar, marine radar)
Airspace monitoring and early warning systems
Integrated radar + EO tracking platforms
Fixed-site perimeter detection

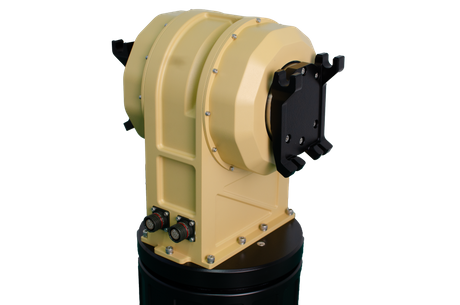

The T-type pan-tilt system features a horizontal mounting bar, allowing dual payload integration—commonly used for combining thermal and visible cameras.
Dual-sensor capability: Supports thermal + visible or multi-spectrum payloads
Compact and efficient design: Optimized for integration flexibility
Cost-effective multi-sensor solution
Synchronized movement for sensor fusion applications
Lower load capacity compared to U-type systems
Less structural rigidity under extreme conditions
Balance considerations when mounting asymmetric payloads
Multi-sensor surveillance systems
Perimeter security (thermal + daylight cameras)
UAV / unmanned ground vehicle payloads
Smart city and industrial monitoring
| Feature | U-Type Pan-Tilt | Radar Pan-Tilt | T-Type Pan-Tilt (Dual Payload) |
|---|---|---|---|
| Structure | U-shaped bracket | Heavy-duty rotary base | Horizontal T-bar |
| Load Capacity | High | Very High | Medium |
| Precision | High | Medium | Medium |
| Rotation Capability | Limited / Controlled | Continuous 360° | Controlled |
| Sensor Support | Single / heavy payload | Radar / large systems | Dual cameras / multi-sensor |
| Best Use Case | Long-range imaging | Radar scanning | Multi-sensor integration |
When selecting a pan-tilt platform, consider the following engineering factors:
Payload weight and size: U-type for heavy EO/IR, radar PTZ for antennas, T-type for dual sensors
Operational objective: Tracking vs scanning vs multi-sensor fusion
Precision requirements: High-accuracy targeting favors U-type systems
Environmental conditions: Wind load, vibration, and temperature range
Integration needs: Whether combining radar, thermal, and visible sensors
Choose a U-type pan-tilt for stability and precision in long-range imaging
Opt for a radar pan-tilt system when continuous rotation and heavy payload support are required
Select a T-type pan-tilt system for flexible, dual-sensor integration
A well-matched pan-tilt system not only enhances imaging performance but also ensures long-term operational reliability in demanding environments.
