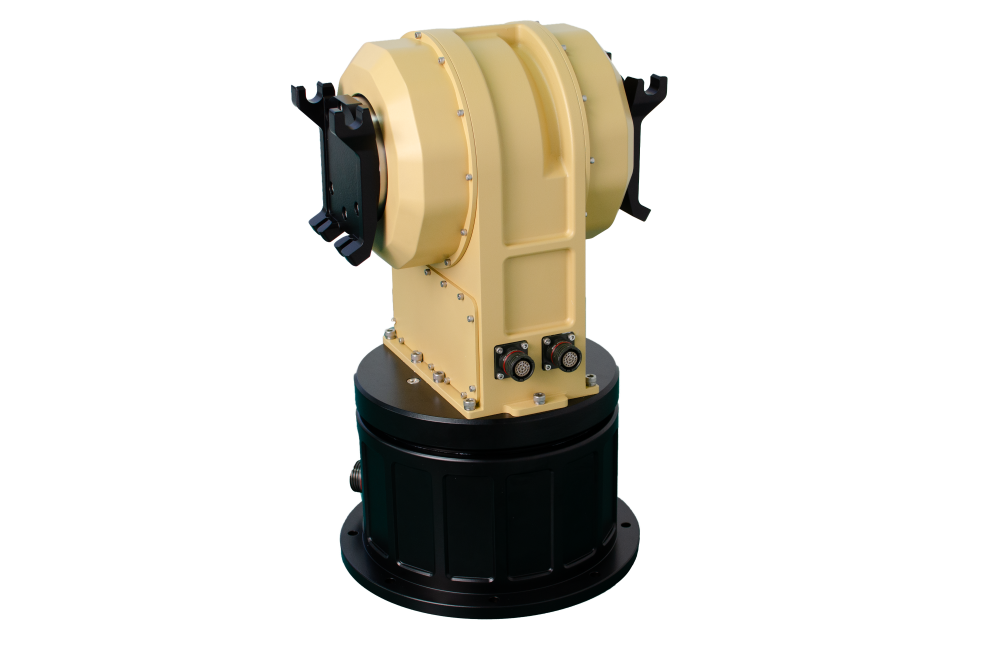

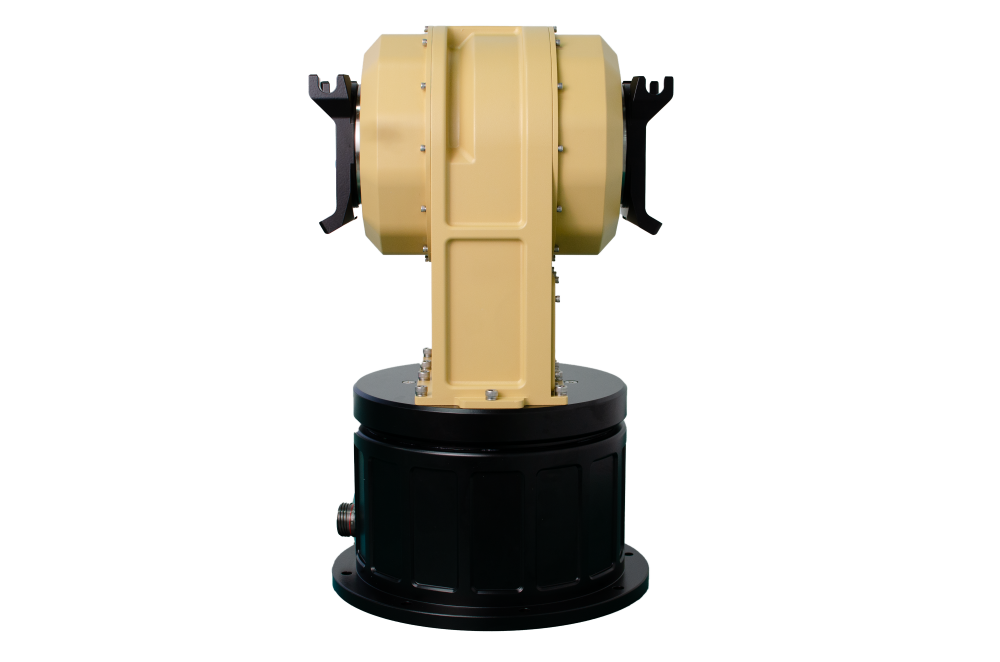

The single-arm architecture is designed to maximize mechanical rigidity while maintaining integration flexibility. The azimuth base provides continuous rotation capability for seamless panoramic scanning, while the elevation axis ensures wide vertical coverage for observation and tracking missions.

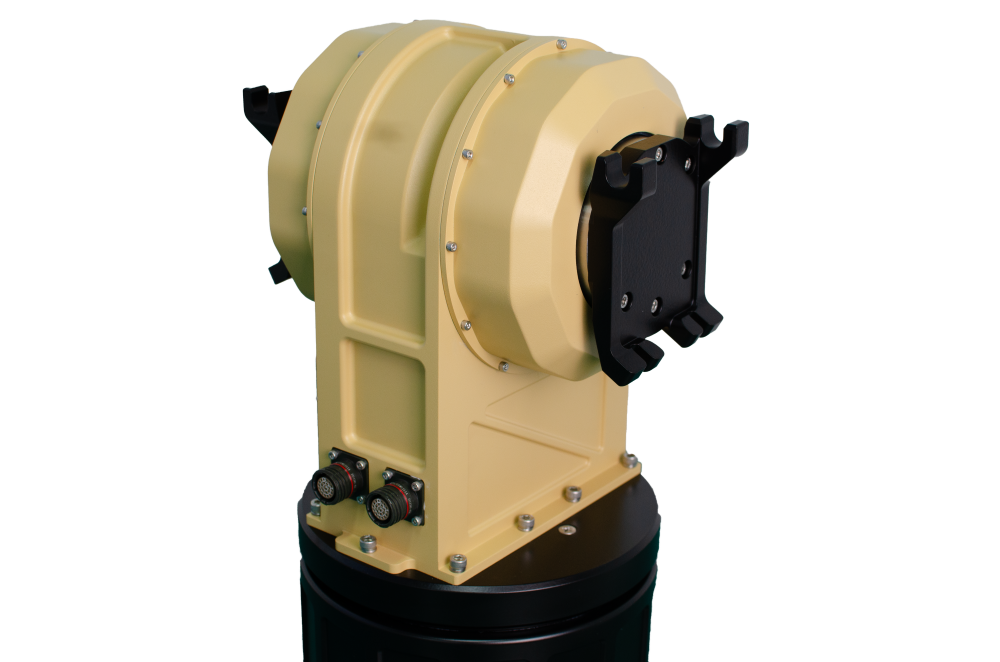

Two mounting interfaces located on either side of the arm enable balanced payload integration, allowing the platform to support various electro-optical modules without compromising stability or performance.
The system can be integrated with:
Long-range daylight cameras
Infrared thermal imaging cameras
Laser rangefinders
Radar detection modules
Multi-sensor surveillance systems
The modular design allows easy adaptation for different mission profiles, enabling rapid customization in payload interfaces, control systems, and mechanical configurations.
Full 360° continuous horizontal rotation
Wide ±60° elevation movement for flexible observation
Up to 20 kg payload capacity for EO/IR and sensor systems
Dual payload mounting structure for balanced integration
Stable platform for long-range optical sensors
Modular design for custom engineering projects
Compatible with surveillance, tracking, and targeting systems
Supporting fully customizable controls of every sensor, gimbal, smart function and pan tilt size/color to your specifications.
