Gyro-stabilization | Platform | 2-axis |
Stable accuracy | ≤1mrad (RMS) | |
Pan | 360° continuously | |
Tilt | -90°～+90° | |
Pan speed | ≥80°/s | |
Tilt speed | ≥60°/s | |
Pan Accelerate speed | ≥80°/s2 | |
Tilt Accelerate speed | ≥60°/s2 | |
Repeat positioning accuracy | ±0.01° | |
Day Camera | Sensor type | 1/1.8 '' Progressive Scan CMOS |
Pixels | 200Mp, 400Mp | |
Resolution | 1920(H) × 1080(V), 2560(H) × 1440(V) | |
Focal length | 5.5mm～180mm, 6.5mm～240mm, 6.1mm～317mm | |
Focus | Auto/Manual/Semi-auto | |
Minimum illumination | Color : 0.0005Lux/F1.4/AGC ON; Black and White : 0.0001Lux/F1.4/AGC ON | |
Optical fog penetration | Support | |
Thermal Camera | Detector type | Uncooled Vanadium Oxide Microbolometer |
Resolution | 640 × 512@17μm, 1280 × 1024@12μm | |
Spectrum | 8～14μm | |
NETD | ≤40mK@F1.0,300K | |
Focal length | 50mm, 75mm, 100mm, 25～75mm | |
Focus type | Electric focus/Auto focus | |
Digital zoom | 1×/2×/4×/8× | |
Pseudo-color | White Hot / Black Hot / Rainbow / Iron Red / Lava / Sky / Purple Orange / Gradient Red / Gradient Green / Gradient Blue | |
Image process | Nonuniformity Correction/Digital Filter Noise Reduction/DDE | |
General | OSD | Date, time, longitude, latitude, altitude, speed, azimuth and pitch information (displaying and blanking superimposed characters) |
Encode | H.265/H.264 | |
Interface protocol | ONVIF/GB28181 | |
Communication interface | 1×RS422/1×RJ45 | |
Power interface | DC24V | |
RH | <90%RH | |
Protection grade | IP66 | |
Anti-salt-fog | PH value 6.5～7.2, continuous spraying for 48 hours, no surface change | |
Operating temperature | -40℃～+55℃ | |
Storage temperature | -55℃～+65℃ | |
Consumption | Average power consumption ≤60W | |
Weight | ≤12Kg | |
Dimension | Φ260mm × 400mm | |
Laser Rangefinder | 5km/10km/15km Optional | |
Laser lighting | 500m/800m Optional |
Start a free consultation with our engineer to discuss detailed and customized specifications.

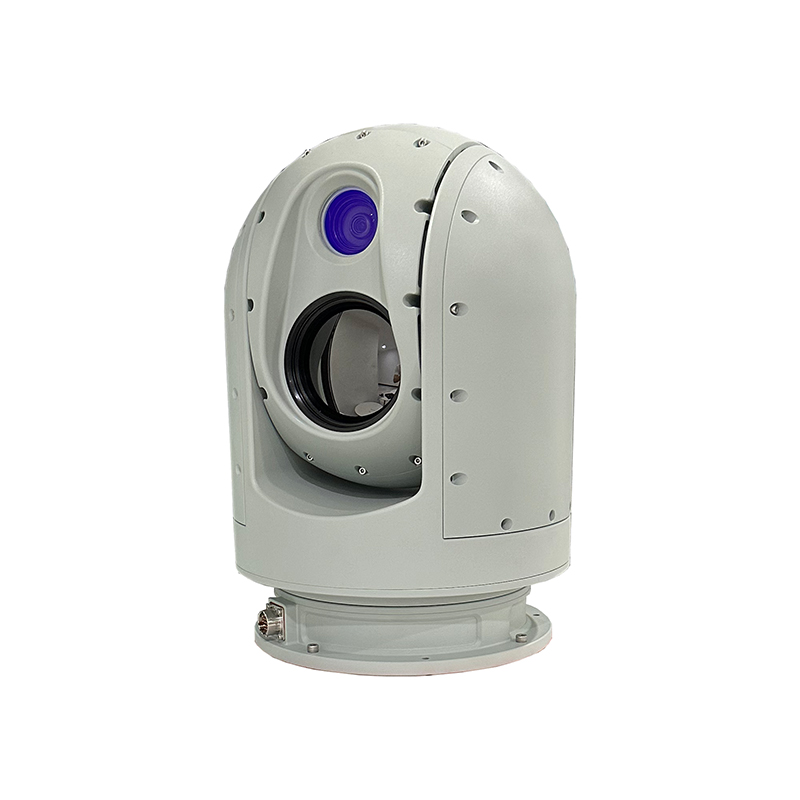

The Universal & Low-cost Marine Gyro Stabilization Camera is a game-changing solution for cost-sensitive and large-scale maritime surveillance operations. It integrates high-definition visible light, infrared thermal imaging, and laser night vision for complementary detection, enabling rapid target locking and multi-band countermeasures when needed. Powered by military-grade gyro stabilization technology, it delivers 360° wave-resistant stabilization and ~0.05° precision tracking, ensuring rock-steady imaging even in rough seas—redefining maritime surveillance standards with land-like stability on turbulent waters. By optimizing structure and using standardized components, it maintains core performance while reducing costs, making it accessible for routine maritime law enforcement, port security, and coastal surveillance.
Streamlined design and standardized components lower production costs without compromising stabilization capability. It offers the same core gyro technology as high-end models at a more accessible price point, ideal for budget-constrained or large-scale deployments.
With a precision of ~0.05° and stable accuracy of ≤1mrad (RMS), it ensures clear, blur-free imagery for routine surveillance tasks. It compensates for vessel motion in six degrees of freedom, maintaining stability even in moderate sea states.
Built to withstand maritime conditions, it features water resistance (IP66 protection grade), salt-fog resistance (PH 6.5–7.2, 48-hour continuous spraying), and moderate sea impact resistance. Its operating temperature range of -40℃ to +55℃ ensures performance in extreme coastal and inland water environments.
Supporting common visible and infrared cameras with standard interfaces (ONVIF/GB28181), it reduces integration effort. The modular design simplifies servicing, minimizes downtime, and lowers operational costs—critical for long-term maritime deployments.
Integrated high-definition visible light, infrared thermal imaging (8–14μm spectrum), and laser night vision (500m/800m optional) enable round-the-clock monitoring. It captures clear imagery day and night, even in low-light or adverse weather conditions.
Deployed at shipping channels, port entrances, and harbor areas, it provides 24/7 real-time surveillance. It tracks suspicious vessels, deters smuggling, and collects clear evidence for law enforcement, even under wave impact and vessel motion.
Ideal for coastal patrol, lake management, and dam protection, it performs reliably in day, night, and adverse weather. It secures critical water resources, supports environmental monitoring, and maintains public safety with consistent situational awareness.
For fisheries administration, it monitors fishing activities and detects illegal operations. Its stabilized imaging ensures clear visuals during high-speed pursuits or rough seas, strengthening enforcement efficiency and supporting prosecution with solid video evidence.
It safeguards sea-crossing bridges, offshore platforms, and water facilities with continuous monitoring. It detects approaching vessels and potential threats, enabling early warning and rapid response to prevent intrusion or sabotage.
It operates on DC24V with an average power consumption of ≤60W, making it compatible with most vessel power systems and reducing energy costs during long-term operations.
With a weight of ≤12Kg and compact dimension (Φ260mm × 400mm), it is easy to install on patrol vessels, port structures, and coastal platforms without extensive modifications.
Yes, it features a 1×RJ45 communication interface and supports remote access, allowing operators to monitor feeds, adjust settings, and control tracking from onshore or onboard consoles.
