Gyro-stabilization | Platform | 2-axis |
Stable accuracy | ≤0.2mrad (RMS) | |
Pan | 360° continuously | |
Tilt | -90°～+90° | |
Pan speed | ≥100°/s | |
Tilt speed | ≥80°/s | |
Pan Accelerate speed | ≥100°/s2 | |
Tilt Accelerate speed | ≥80°/s2 | |
Repeat positioning accuracy | ±0.01°, ±0.003° | |
Day Camera | Sensor type | 1/1.8 '' Progressive Scan CMOS |
Pixels | 200Mp, 400Mp | |
Resolution | 1920(H) × 1080(V), 2560(H) × 1440(V) | |
Focal length | 10～550mm, 15～850mm, 11.3～1000mm, 15～120mm | |
Focus | Auto/Manual/Semi-auto | |
Minimum illumination | Color : 0.0005Lux/F1.4/AGC ON; Black and White : 0.0001Lux/F1.4/AGC ON | |
Optical fog penetration | Support | |
Thermal Camera | Detector type | Uncooled Vanadium Oxide Microbolometer |
Resolution | 640 × 512@17μm, 1280 × 1024@12μm | |
Spectrum | 8～14μm | |
NETD | ≤40mK@F1.0,300K | |
Focal length | 20～120mm, 30～150mm, 30～180mm, 25～225mm, 20～240mm, 30～300mm | |
Focus type | Electric focus/Auto focus | |
Digital zoom | 1×/2×/4×/8× | |
Pseudo-color | White Hot / Black Hot / Rainbow / Iron Red / Lava / Sky / Purple Orange / Gradient Red / Gradient Green / Gradient Blue | |
Image process | Nonuniformity Correction/Digital Filter Noise Reduction/DDE | |
General | OSD | Date, time, longitude, latitude, altitude, speed, azimuth and pitch information (displaying and blanking superimposed characters) |
Encode | H.265/H.264 | |
Interface protocol | ONVIF/GB28181 | |
Communication interface | 1×RS422/1×RJ45 | |
Power interface | DC24V, DC48V | |
RH | <90%RH | |
Protection grade | IP66 | |
Anti-salt-fog | PH value 6.5～7.2, continuous spraying for 48 hours, no surface change | |
Operating temperature | -40℃～+55℃ | |
Storage temperature | -55℃～+65℃ | |
Consumption | Average power consumption ≤80W, ≤100W | |
Weight | ≤50Kg, ≤100Kg | |
Dimension | 400mm × 600mm × 650mm, 920mm × 650mm × 930mm | |
Laser Rangefinder | 5km/10km/15km/20km Optional | |
Laser lighting | 500m/800m/1500m/2000m/3000m Optional |

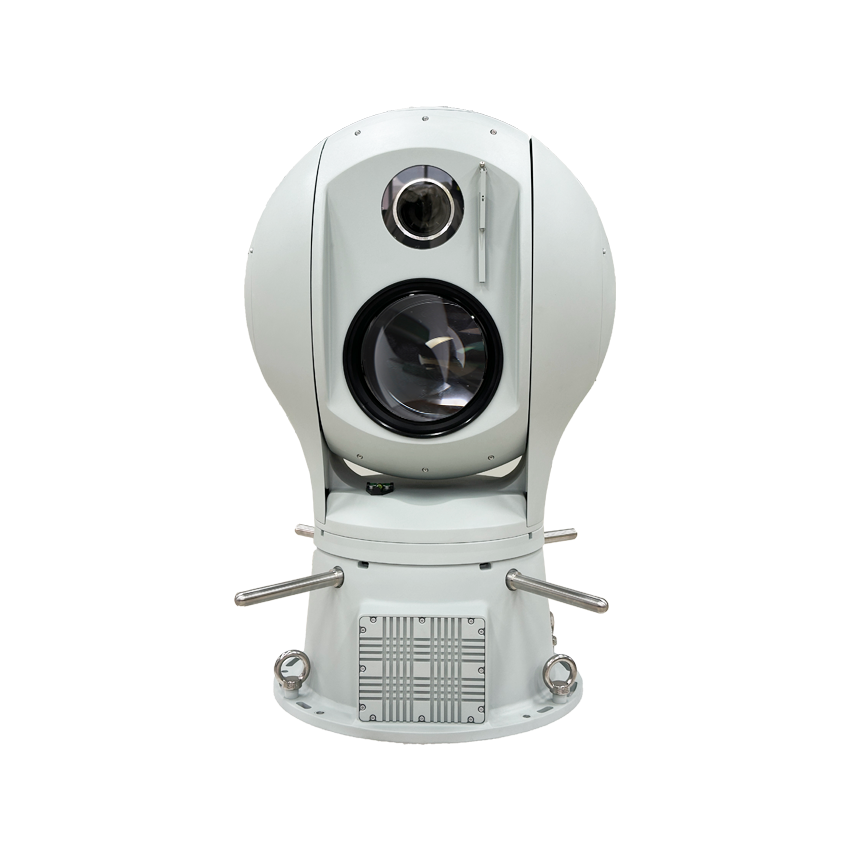

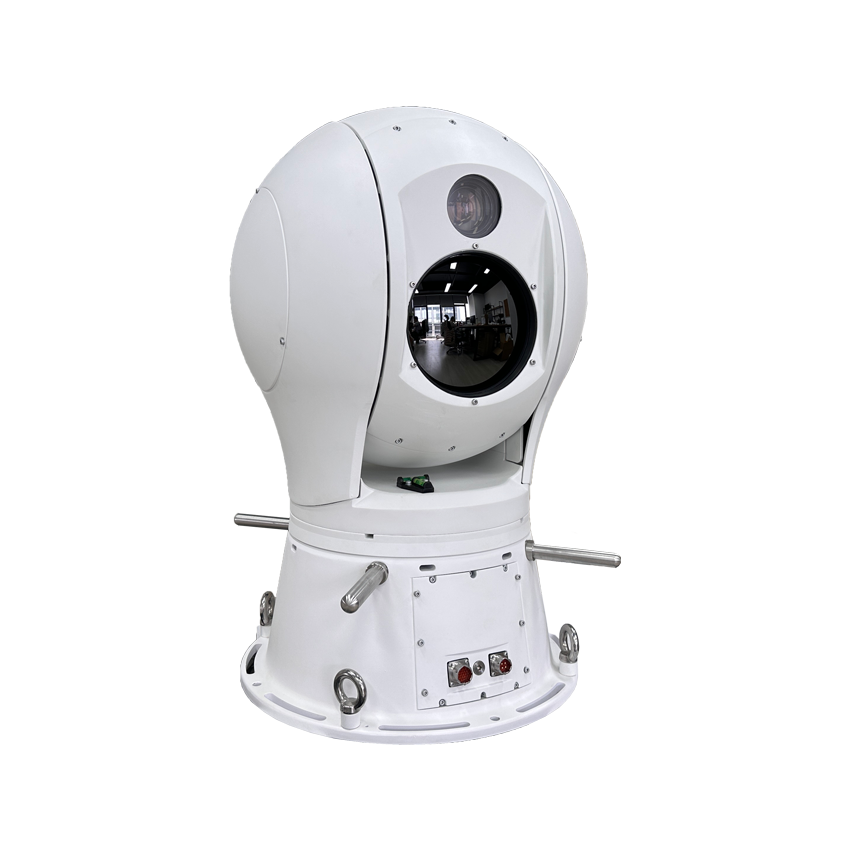

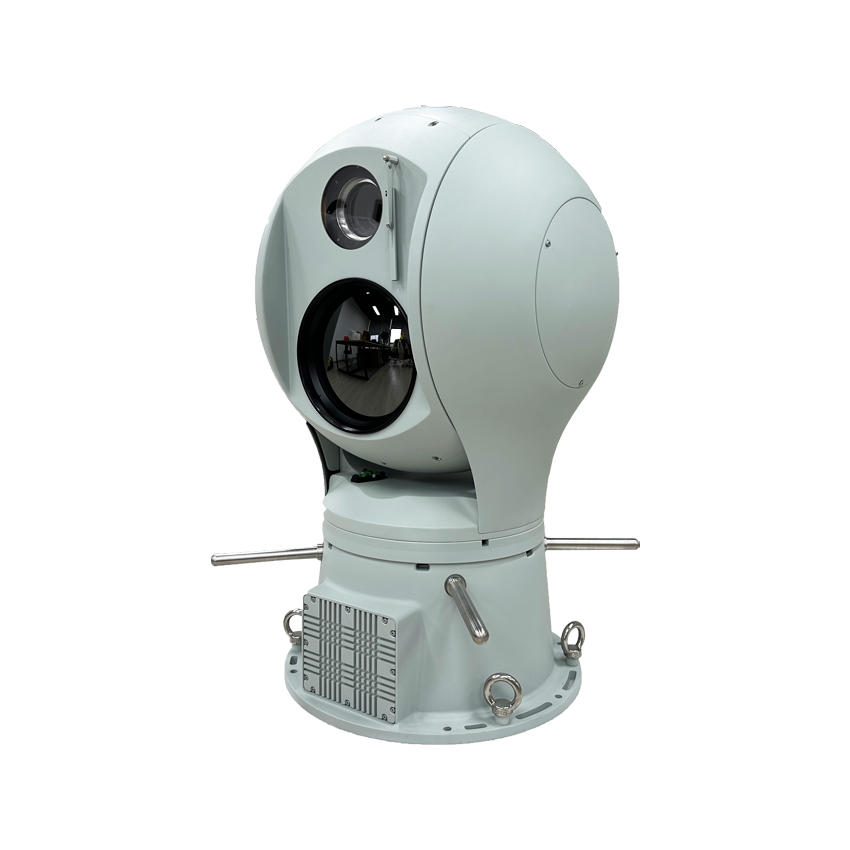

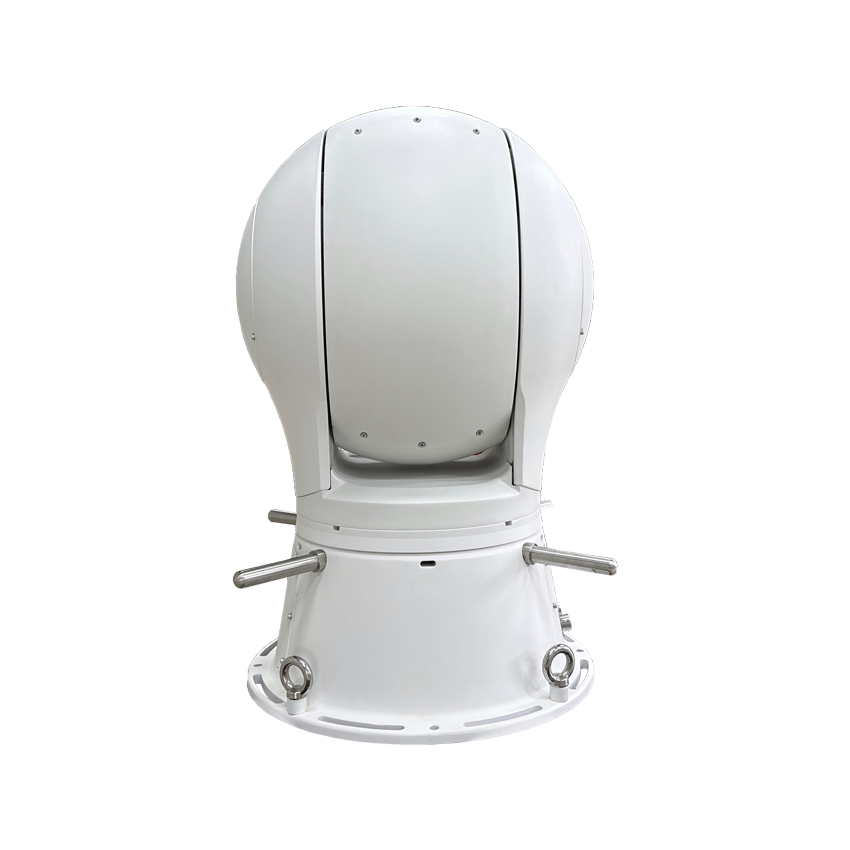

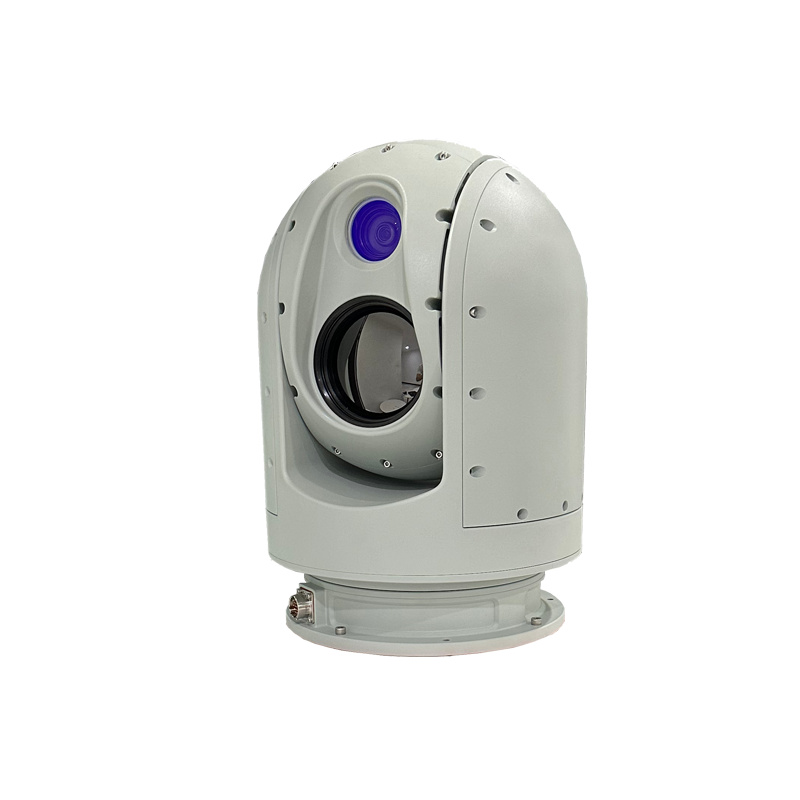

The High-Precision Globe-shaped Gyro Stabilization System is an integrated, highly stable electro-optical observation platform designed for all-weather, all-directional surveillance. Its spherical design enables 360° omnidirectional rotation and wide field-of-view coverage, while advanced gyro-stabilization technology ensures clear, steady imagery even under complex environments and high-speed motion. Built with military-grade reliability, it supports flexible integration of multiple sensors—including visible cameras, thermal imagers, and laser rangefinders—and excels in aerial, maritime, and ground surveillance missions. From border patrol and maritime law enforcement to environmental monitoring and critical infrastructure protection, it provides dependable support for target observation and intelligence acquisition in dynamic scenarios.
The spherical architecture delivers balanced multi-axis compensation for roll, pitch, and yaw. It maintains full-range stability in rough seas or on moving platforms, minimizing motion blur and maximizing detection/tracking performance for continuous surveillance.
Engineered for demanding missions, it features shock- and vibration-hardened mechanics, sealed housings, and corrosion resistance. It withstands salt-fog, spray, and temperature extremes (-40℃ to +55℃ operating temperature), aligning with defense and marine test standards for long-term deployment.
High-sensitivity gyroscopes and advanced control algorithms achieve stabilization accuracy of ≤0.2mrad (RMS) and repeat positioning accuracy of ±0.01°. It keeps optics precisely aligned during maneuvers and wave impact, supporting long-range identification and evidence-grade recording.
An open, modular platform supports visible cameras (200Mp/400Mp), thermal imagers (640×512@17μm to 1280×1024@12μm), laser rangefinders (5km–20km optional), and mission-specific payloads. Standardized interfaces simplify integration with existing systems.
With a pan speed of ≥100°/s and tilt speed of ≥80°/s, it rapidly locks onto fast-moving targets. It accelerates at ≥100°/s⊃2; (pan) and ≥80°/s⊃2; (tilt), ensuring responsiveness in dynamic surveillance scenarios.
Installed on patrol vessels and coastal defense platforms, it enables round-the-clock monitoring of waterways and offshore zones. For border defense, it monitors cross-border vessels and suspicious activities, supporting anti-smuggling and anti-infiltration efforts.
Suitable for shipborne, vehicle-mounted, or fixed-base deployment, it supports long-range target identification and battlefield awareness. It enables all-weather tactical surveillance and target tracking to assist reconnaissance and command missions.
Applied to sea-crossing bridges, offshore platforms, and dams, it provides continuous monitoring and early warning. It detects approaching threats, safeguarding strategic facilities against intrusion or sabotage for uninterrupted operations.
Integrated into UAVs, helicopters, or ground vehicles, it conducts aerial reconnaissance and ground target tracking. It is effective for disaster monitoring, environmental research, and urban security, enhancing situational control in diverse terrains.
It offers two configurations: ≤50Kg (400mm × 600mm × 650mm) and ≤100Kg (920mm × 650mm × 930mm), accommodating different installation requirements for vessels, aircraft, or fixed platforms.
Yes, it supports full customization of sensors, detectors, and gimbal functions. We can design unique configurations based on your requirements for sensor type, environmental conditions, and mission objectives.
It uses H.265/H.264 encoding, ensuring efficient video compression without quality loss—ideal for real-time transmission and long-term storage of surveillance footage.
