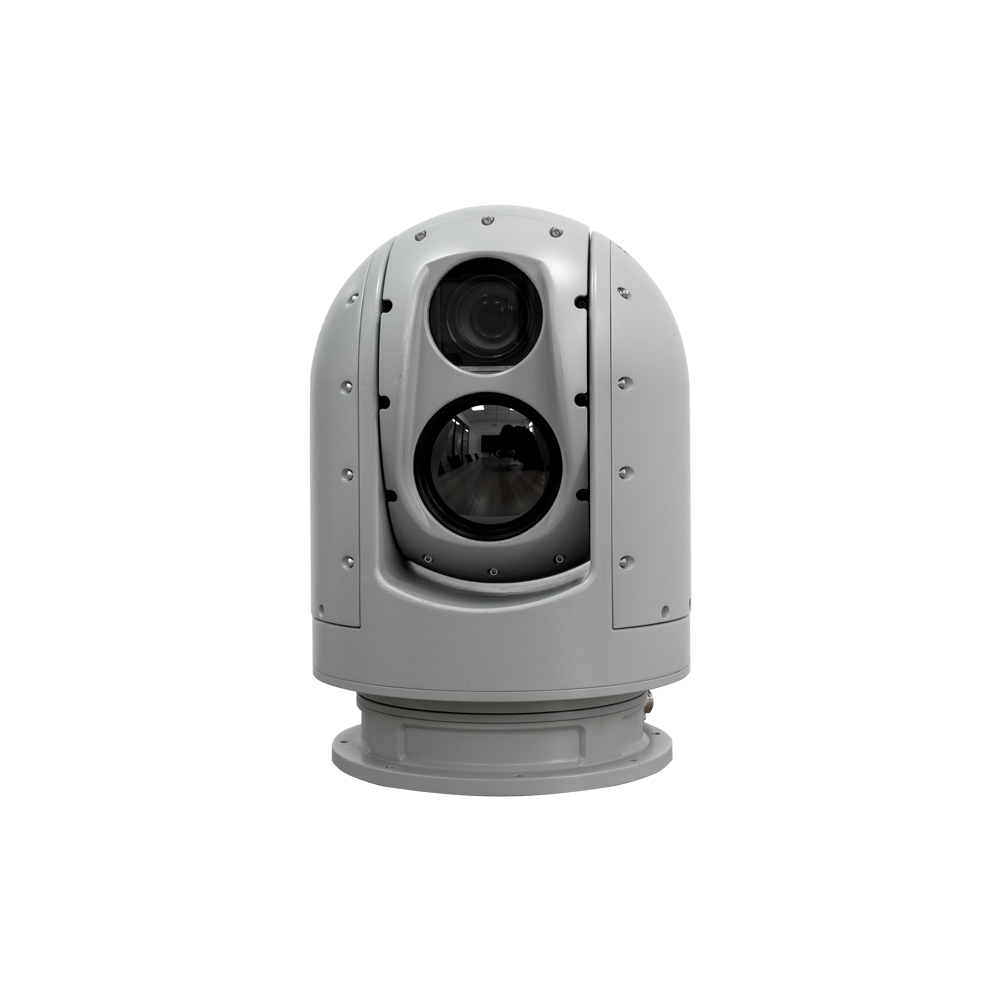

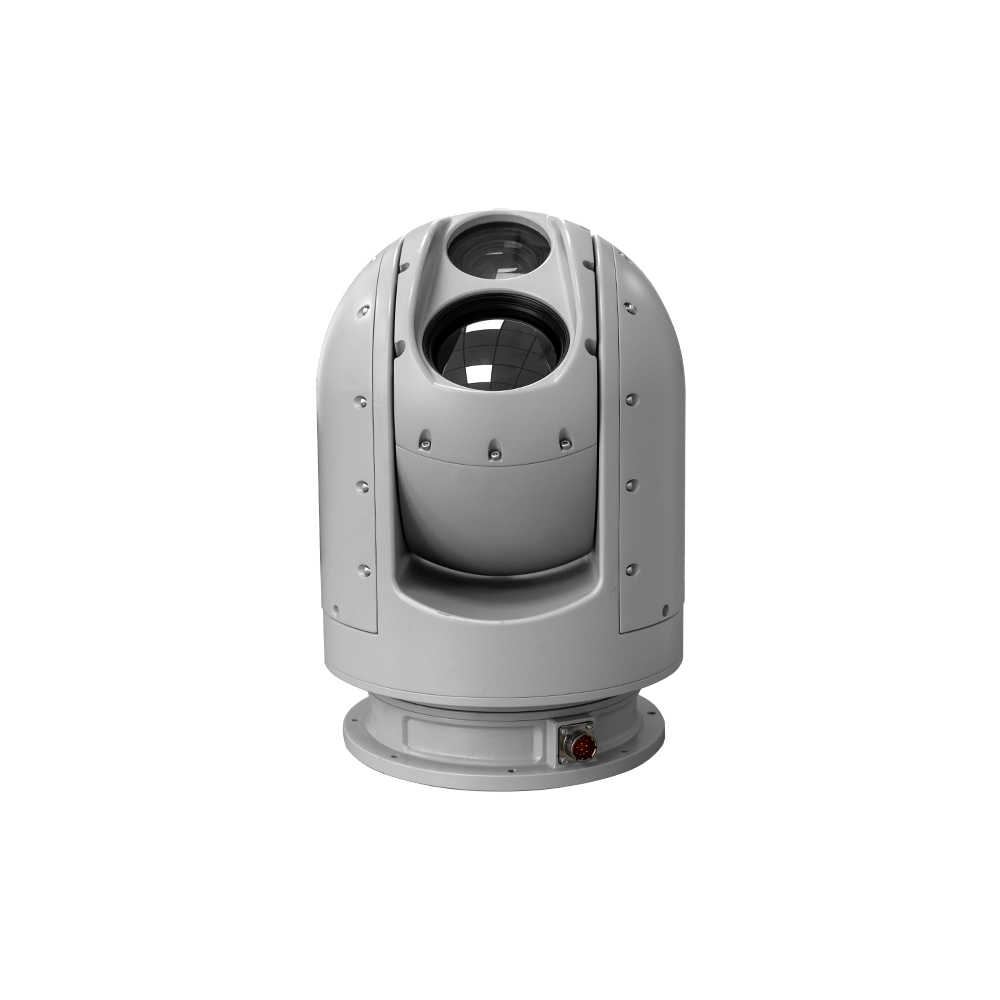

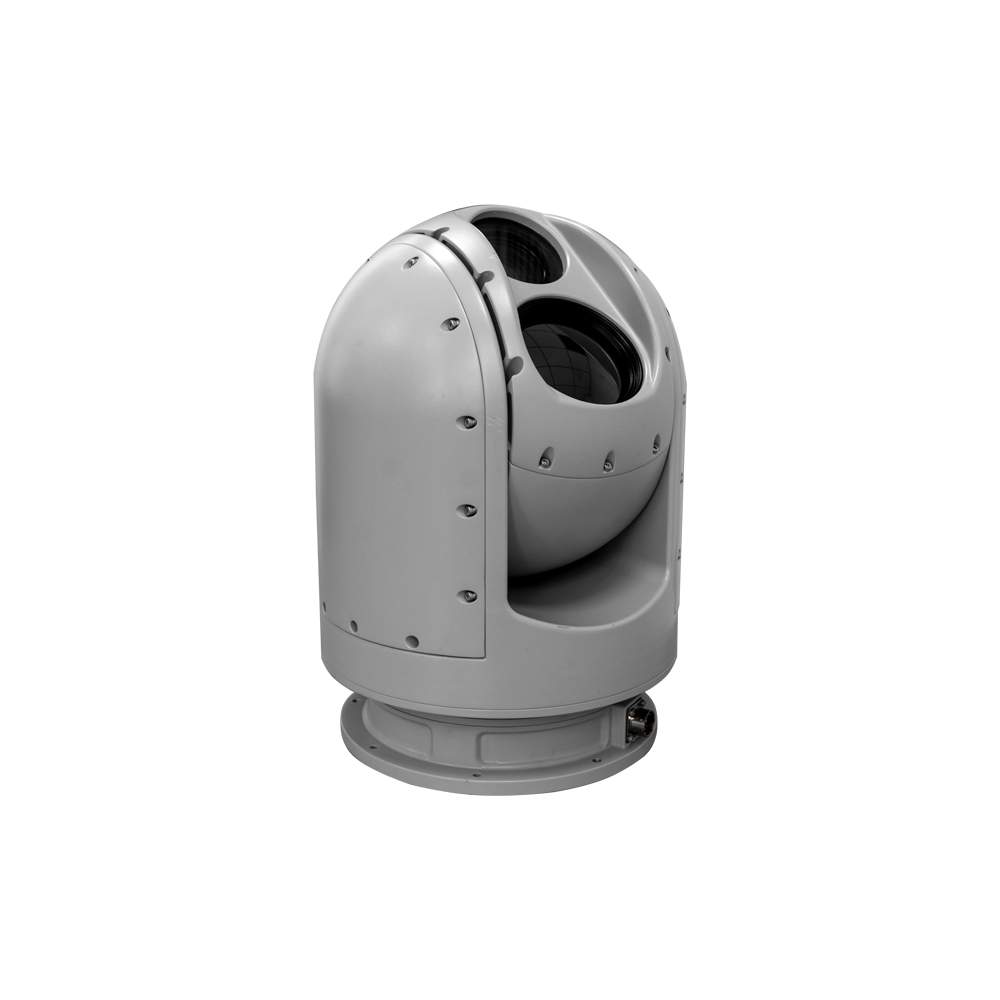

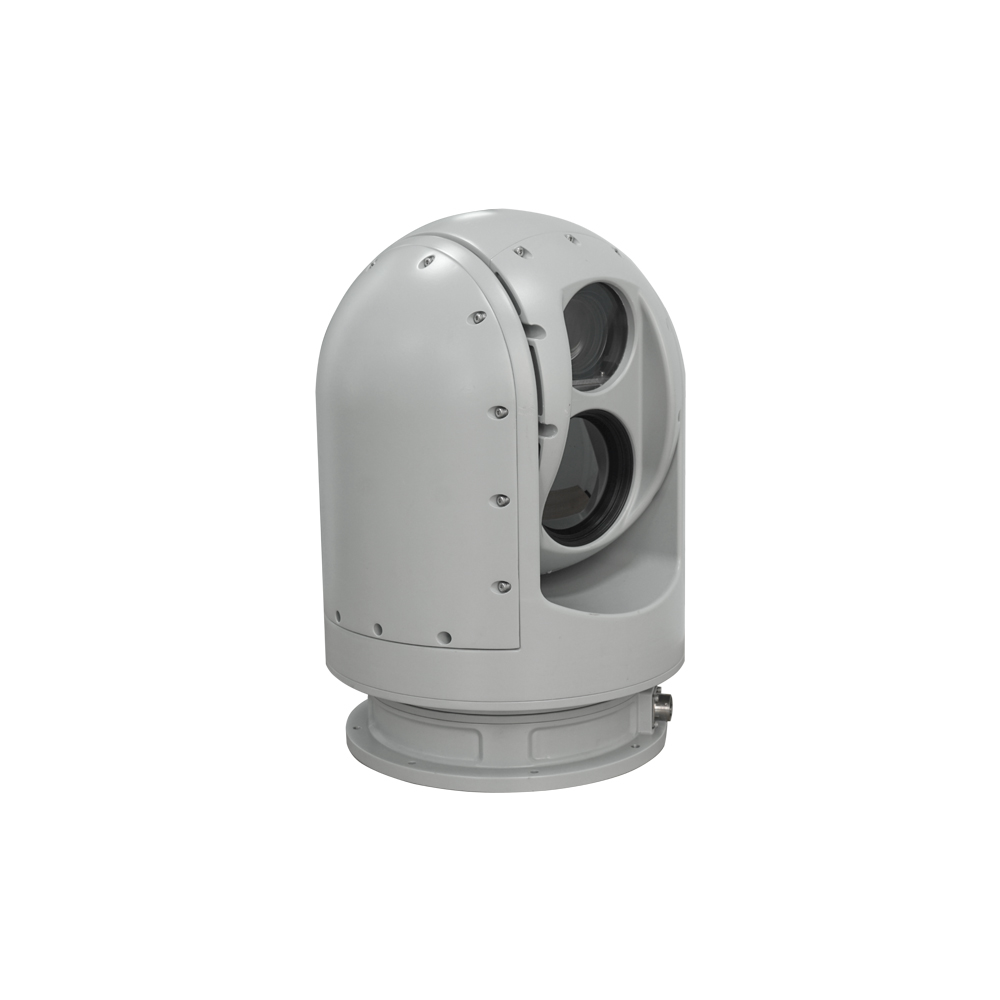

3km HD 2688×1520 Marine Long Range Gyro-Stabilized Thermal Camera with Accurate Positioning And Coastal Monitoring

This system provides superior navigation assistance and hazard detection, enabling safe maneuvering in congested waterways and low-visibility maritime environments.

  • Day camera
Pixel: 2MP
Resolution: 1920(H) × 1080(V)
Focal length: 6mm～210mm
  • Thermal imaging
Detector type : Uncooled Vanadium Oxide Microbolometer
Resolution: 640 × 512@12μm
Focal length: 50mm/F1.0

More discussion with engineers.

Availability:
Inquiry Add to Basket


Model

RYAN-GQLWF05V2K-H

Day Camera

Sensor type

1/2" Progressive Scan CMOS

Pixel

2MP

Frame rate

50/60Hz

Minimum illumination

Color: 0.001 lux @ (F1.5, AGC ON); B/W: 0.0001   lux @ (F1.5, AGC ON)

Resolution

1920(H) × 1080(V)

Focal length

6mm～210mm

Zoom speed

4.5s±0.5s (Wide-Tele)

Optical/Digital zoom

35×/16×

Iris

F1.5～F4.8

FOV

61.9°×37.2°～1.9°×1.1° (Wide-Tele)

Minimum working distance

1m～5m (Wide-Tele)

Focus

Auto/Manual/Semi-auto

Thermal   Camera

Detector type

Uncooled Vanadium Oxide Microbolometer

Resolution

640 × 512@12μm

Spectrum

8～14μm

NETD

≤40mK@F1.0,300K

Focal length

50mm/F1.0

FOV

8.8°×7.0°

Focus

Auto/Manual

Digital zoom

1×/2×/4×/8×

Pseudo

White Hot / Black Hot / Rainbow / Iron Red / Lava   / Sky / Purple Orange / Gradient Red / Gradient Green / Gradient Blue

Image process

Non-uniformity Correction/Digital Filter Noise   Reduction/DDE

Pan-Tilt

Platform

2-axis

Stable accuracy

≤0.5mrad

Pan speed

0.003°～100°/s (customization supported)

Tilt speed

0.003°～100°/s (customization supported)

Pan accelerate speed

≥80°/s2

Tilt accelerate speed

≥80°/s2

Repeat positioning accuracy

±0.003°

Position Resolution

0.00035°

Driving forms

Direct   drive

Preset

Max 256

Pan/ Tilt

360° rotating continuously / -75°～+75°

Patrol scanning

8 patrols, up to 32 presets for each patrol

General

Encode

H.265/H.264

Interface protocols

ONVIF,   НТТР, TCP/IP, UDP, RTP, RTSP, RTCP, DNS, DDNS, DHCP, FTP, NTP, PPPOE, SMTP,   UPNP;

Communication

1×RJ45/1×RS422/2×SDI (customization   supported)

Power

DC24V

RH

<95%RH

Protection grade

IP66

Anti-salt-fog

PH value 6.5～7.2, continuous   spraying for 48 hours, no surface change

Operation temp

-40℃～+55℃

Storage temp

-55℃～+65℃

Consumption

≤50W Static / ≤200W Peak

Weight

≤20Kg

Dimension

Φ280mm × 445mm

RYAN-GQLWF05V2K

Start a free consultation with our engineer   to discuss detailed and customization options.


Overview of Product


The Commercial-Grade Gyro-Stabilized Marine PTZ Camera is engineered for professional maritime monitoring and navigation support. Equipped with active 2-axis gyro stabilization, the system ensures steady imagery under vessel motion, delivering clear visual and thermal imaging even in moderate sea states. The dual-sensor payload integrates a high-definition ultra-low-light visible camera and a thermal imaging module, providing enhanced situational awareness in night navigation, glare, haze, and light fog conditions.

Designed for ease of integration, the platform supports standard marine network protocols and can be seamlessly connected to onboard monitoring systems.



Product Features


Gyro-stabilized imaging under continuous vessel motion

Long-range day/night maritime target identification

Wide-area coastal coverage with continuous rotation

EO/IR sensor fusion for low-visibility environments

Ruggedized, corrosion-resistant design for marine use

Rapid target search & automatic tracking

Accurate positioning and coastal monitoring

24/7 all-weather observation

Real-time image optimization for critical decision-making

High-reliability mechanical transmission system



Applications


Waterway & Port Security

Coastal & Inland Water Security

Fisheries Enforcement & Maritime Law Enforcement

Marine Operations

Yachts & Commercial Vessel Navigation Assistance

Offshore Platform & Infrastructure Protection

Harbor Traffic Monitoring

Environmental Monitoring & Pollution Detection

Maritime Patrol

Search & Rescue (SAR)


Customization

Supporting fully customizable controls of every sensor, gimbal function and pan tilt size to your specifications.
