640×512 Uncooled LWIR Multi-Spectral Surveillance Thermal Imaging System

The mobile multi-spectral imaging system is engineered to provide comprehensive situational awareness through the integration of visible imaging, LWIR thermal sensing, and laser distance measurement. Its modular architecture allows flexible configuration depending on mission requirements.

  • Day camera
Pixel: 2MP
Resolution: 1920(H) × 1080(V)
  • Thermal imaging
Detector type : Uncooled Vanadium Oxide Microbolometer
Resolution: 640 × 512@12μm
  • Laser Rangefinder: 50m～3000m

Availability:
Inquiry Add to Basket

Day Camera

Sensor type

1/1.8" Progressive Scan CMOS

Pixel

2MP

Resolution

1920(H) × 1080(V)

Focal length

6～210mm/35×

Iris

F1.5～4.8

FOV

61.9°×37.2°～1.9°×1.1°

Frame rate

50/60Hz

Focus

Auto/Manual/Semi-auto

Thermal   Camera

Detector type

Uncooled Vanadium Oxide Microbolometer

Resolution

640 × 512@12μm

Spectrum

8～14μm

NETD

≤40mK@F1.0,300K

Focal length

45/135mm

FOV

19.4°×15.6°/6.5°×5.2°

Frame rate

25Hz/30Hz

Pseudo

White Hot / Black Hot / Rainbow / Iron Red / Lava   / Sky / Purple Orange / Gradient Red / Gradient Green / Gradient Blue

Image process

Non-uniformity Correction/Digital Filter Noise   Reduction/DDE

LRF

Wave-length

1535nm

Type of light source

Semiconductor pumping

Ranging Ability

50m～3000m(2.3m × 2.3m)

Accuracy

±2m

Frequency

1Hz/5Hz/10Hz

Accuracy rate

98%

Recognition   Distance

Person(1.8m × 0.5m)

1.3km

Vehicle(2.3m × 2.3m)

3.8km

General

Communication

1×SDI/1×RS422/1×RJ45

Power

DC12V

RH

<95%RH

Protection grade

IP66

Anti-salt-fog

PH value 6.5～7.2, continuous spraying for   48 hours, no surface change

Shock

40g/11ms final peak sawtooth wave;

three axes and six directions; three times in each direction

Operation temp

-40℃～+55℃

Storage temp

-55℃～+65℃

Consumption

≤24W Static / ≤40W Peak

Weight

≤10Kg

Dimension

≤317mm × 260mm × 190mm

Start a free consultation with our engineer  to discuss detailed and customization options.

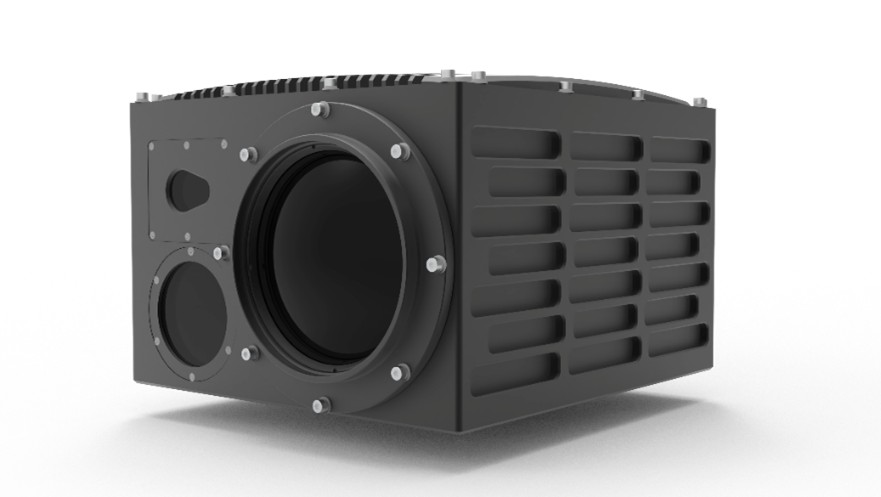

渲染图1


Overview of Product


This advanced vehicle-mounted surveillance solution delivers reliable performance across diverse operational environments. From day to night and from clear skies to dense fog, it ensures uninterrupted visibility and target detection. Its intelligent multi-spectral fusion capability allows operators to see beyond the limitations of traditional cameras, revealing hidden threats and enhancing decision-making.



Product Features


Multi-sensor integrated imaging platform

High-resolution thermal imaging (LWIR)

Laser-assisted target positioning

Automatic target tracking

Strong adaptability to harsh environments

Low-light and zero-light operation



Applications


Border patrol vehicles

Anti-smuggling operations

Industrial inspection vehicles

Forestry and environmental monitoring

Search and rescue missions



Customization Options

Start a free consultation with our engineer  to discuss detailed and customization options.

Click here to make an Inquiry
