Model | RYAN-GQLW22V8K-HT | |
Day Camera | Sensor type | 1/1.8" Progressive Scan CMOS |
Pixel | 2MP | |
Frame rate | 25/30Hz | |
Minimum illumination | Color: 0.001 lux @ (F2.8, AGC ON); B/W: 0.0001 lux @ (F2.8, AGC ON) | |
Resolution | 1920(H) × 1080(V) | |
Focal length | 15mm～850mm | |
Zoom speed | 8s±0.5s (Wide-Tele) | |
Optical/Digital zoom | 57×/16× | |
Iris | F2.8～F8.2 | |
FOV | 29.1°×16.6°～0.5°×0.2° (Wide-Tele) | |
Minimum working distance | 1m～10m (Wide-Tele) | |
Focus | Auto/Manual/Semi-auto | |
Thermal Camera | Detector type | Uncooled Vanadium Oxide Microbolometer |
Resolution | 640 × 512@12μm | |
Spectrum | 8～14μm | |
NETD | ≤40mK@F1.0,300K | |
Focal length | 25mm～225mm/F1.3 | |
FOV | 17.5°×14.0°～2.0°×1.6° | |
Focus | Auto/Manual | |
Digital zoom | 1×/2×/4×/8× | |
Pseudo | White Hot / Black Hot / Rainbow / Iron Red / Lava / Sky / Purple Orange / Gradient Red / Gradient Green / Gradient Blue | |
Image process | Non-uniformity Correction/Digital Filter Noise Reduction/DDE | |
Pan-Tilt | Platform | 2-axis |
Stable accuracy | ≤0.5mrad | |
Pan speed | 0.003°～100°/s (customization supported) | |
Tilt speed | 0.003°～100°/s (customization supported) | |
Pan accelerate speed | ≥80°/s2 | |
Tilt accelerate speed | ≥80°/s2 | |
Repeat positioning accuracy | ±0.003° | |
Position Resolution | 0.00035° | |
Driving forms | Direct drive | |
Preset | Max 256 | |
Pan/ Tilt | 360° rotating continuously / -75°～+75° | |
Patrol scanning | 8 patrols, up to 32 presets for each patrol | |
Target recognition and tracking | Supported Target Types | Personnel, vehicles, vessels, aircraft, and other moving targets |
Multi-Target Capability | Supports simultaneous detection and tracking of multiple targets | |
Detection ROI | Configurable rectangular Region of Interest (ROI) | |
Detectable Target Size | 2×2 pixels to 200×100 pixels | |
Detection Algorithms | Grayscale analysis, motion detection, and contour-based detection | |
Tracking Algorithms | Phase correlation, centroid tracking, and color feature matching | |
Tracking Target Size | 2×2 pixels to 200×100 pixels | |
Tracking Accuracy | ≤0.15 mrad (Line-of-Sight tracking accuracy) | |
General | Encode | H.265/H.264 |
Interface protocols | ONVIF, НТТР, TCP/IP, UDP, RTP, RTSP, RTCP, DNS, DDNS, DHCP, FTP, NTP, PPPOE, SMTP, UPNP; | |
Communication | 1×RJ45/1×RS422/2×SDI (customization supported) | |
Power | DC24V/DC48V | |
RH | <95%RH | |
Protection grade | IP66 | |
Anti-salt-fog | PH value 6.5～7.2, continuous spraying for 48 hours, no surface change | |
Operation temp | -40℃～+55℃ | |
Storage temp | -55℃～+65℃ | |
Consumption | ≤100W Static / ≤300W Peak | |
Weight | ≤88Kg | |

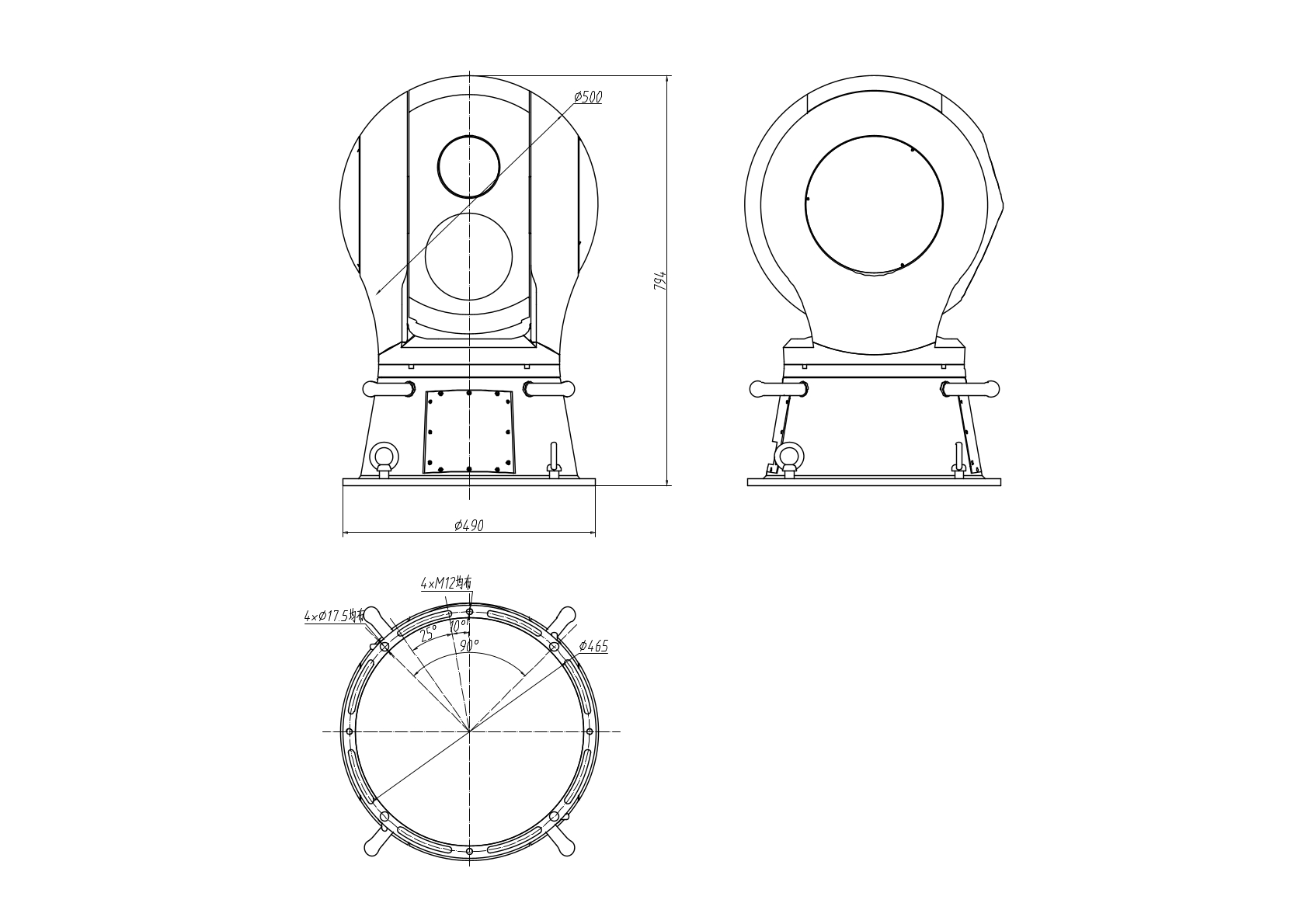

Dimension | Φ500mm × 795mm |
Start a free consultation with our engineer to discuss detailed and customization options.
The High-Precision Globe-Shaped Gyro Stabilization System is a high-performance security solution for border and perimeter security. With full-coverage spherical rotation and long-range stabilized imaging, the system enables persistent monitoring of wide border areas and critical corridors. Its multi-sensor fusion capability allows operators to detect, identify, and track targets under all lighting and weather conditions, significantly enhancing early warning and response effectiveness.
Deployed on fishery patrol vessels or coastal monitoring platforms, the system delivers stable, long-range visual or thermal imagery for continuous target tracking and identification. It enables effective detection of illegal fishing activities and improves evidence collection reliability in rough sea conditions.
Ideal for power plants, ports, oil & gas facilities, pipelines, substations, and industrial parks, the system provides 24/7 wide-area security with early intrusion detection capability, significantly enhancing the overall security level of high-value assets and sensitive sites.
When equipped with a thermal sensor, the system continuously monitors temperature anomalies and potential hotspots across large forested or grassland areas, enabling early-stage fire detection and rapid alarm generation to gain critical response time for emergency teams.
Mounted on emergency response vehicles, border patrol vehicles, or special mission trucks, the system maintains stable imaging while on the move, supporting real-time situational awareness, rapid scene assessment, and efficient on-site command operations. Integrated with drones or light aviation platforms, the gyro-stabilized system compensates for turbulence and platform movement, enabling clear aerial observation for missions such as border security, search and rescue, power line inspection, and large-area reconnaissance.
Installed on port observation towers or shipborne masts, the system provides continuous monitoring of waterways, docking areas, and surrounding waters, supporting early detection of suspicious vessels, unauthorized access, and abnormal maritime behavior.
