Model | RYAN-GULW22V8K-HT | |
Day Camera | Sensor type | 1/1.8" Progressive Scan CMOS |
Pixel | 2MP | |
Frame rate | 25/30Hz | |
Minimum illumination | Color: 0.001 lux @ (F2.8, AGC ON); B/W: 0.0001 lux @ (F2.8, AGC ON) | |
Resolution | 1920(H) × 1080(V) | |
Focal length | 15mm～850mm | |
Zoom speed | 8s±0.5s (Wide-Tele) | |
Optical/Digital zoom | 57×/16× | |
Iris | F2.8～F8.2 | |
FOV | 29.1°×16.6°～0.5°×0.2° (Wide-Tele) | |
Minimum working distance | 1m～10m (Wide-Tele) | |
Focus | Auto/Manual/Semi-auto | |
Thermal Camera | Detector type | Uncooled Vanadium Oxide Microbolometer |
Resolution | 640 × 512@12μm | |
Spectrum | 8～14μm | |
NETD | ≤40mK@F1.0,300K | |
Focal length | 25mm～225mm/F1.3 | |
FOV | 17.5°×14.0°～2.0°×1.6° | |
Focus | Auto/Manual | |
Digital zoom | 1×/2×/4×/8× | |
Pseudo | White Hot / Black Hot / Rainbow / Iron Red / Lava / Sky / Purple Orange / Gradient Red / Gradient Green / Gradient Blue | |
Image process | Non-uniformity Correction/Digital Filter Noise Reduction/DDE | |
Pan-Tilt | Platform | 2-axis |
Stable accuracy | ≤0.5mrad | |
Pan speed | 0.003°～100°/s (customization supported) | |
Tilt speed | 0.003°～100°/s (customization supported) | |
Pan accelerate speed | ≥80°/s2 | |
Tilt accelerate speed | ≥80°/s2 | |
Repeat positioning accuracy | ±0.003° | |
Position Resolution | 0.00035° | |
Driving forms | Direct drive | |
Preset | Max 256 | |
Pan/ Tilt | 360° rotating continuously / -75°～+75° | |
Patrol scanning | 8 patrols, up to 32 presets for each patrol | |
Target recognition and tracking | Supported Target Types | Personnel, vehicles, vessels, aircraft, and other moving targets |
Multi-Target Capability | Supports simultaneous detection and tracking of multiple targets | |
Detection ROI | Configurable rectangular Region of Interest (ROI) | |
Detectable Target Size | 2×2 pixels to 200×100 pixels | |
Detection Algorithms | Grayscale analysis, motion detection, and contour-based detection | |
Tracking Algorithms | Phase correlation, centroid tracking, and color feature matching | |
Tracking Target Size | 2×2 pixels to 200×100 pixels | |
Tracking Accuracy | ≤0.15 mrad (Line-of-Sight tracking accuracy) | |
General | Encode | H.265/H.264 |
Interface protocols | ONVIF, НТТР, TCP/IP, UDP, RTP, RTSP, RTCP, DNS, DDNS, DHCP, FTP, NTP, PPPOE, SMTP, UPNP; | |
Communication | 1×RJ45/1×RS422/2×SDI (customization supported) | |
Power | DC24V/DC48V | |
RH | <95%RH | |
Protection grade | IP66 | |
Anti-salt-fog | PH value 6.5～7.2, continuous spraying for 48 hours, no surface change | |
Operation temp | -40℃～+55℃ | |
Storage temp | -55℃～+65℃ | |
Consumption | ≤100W Static / ≤300W Peak | |
Weight | ≤75Kg | |

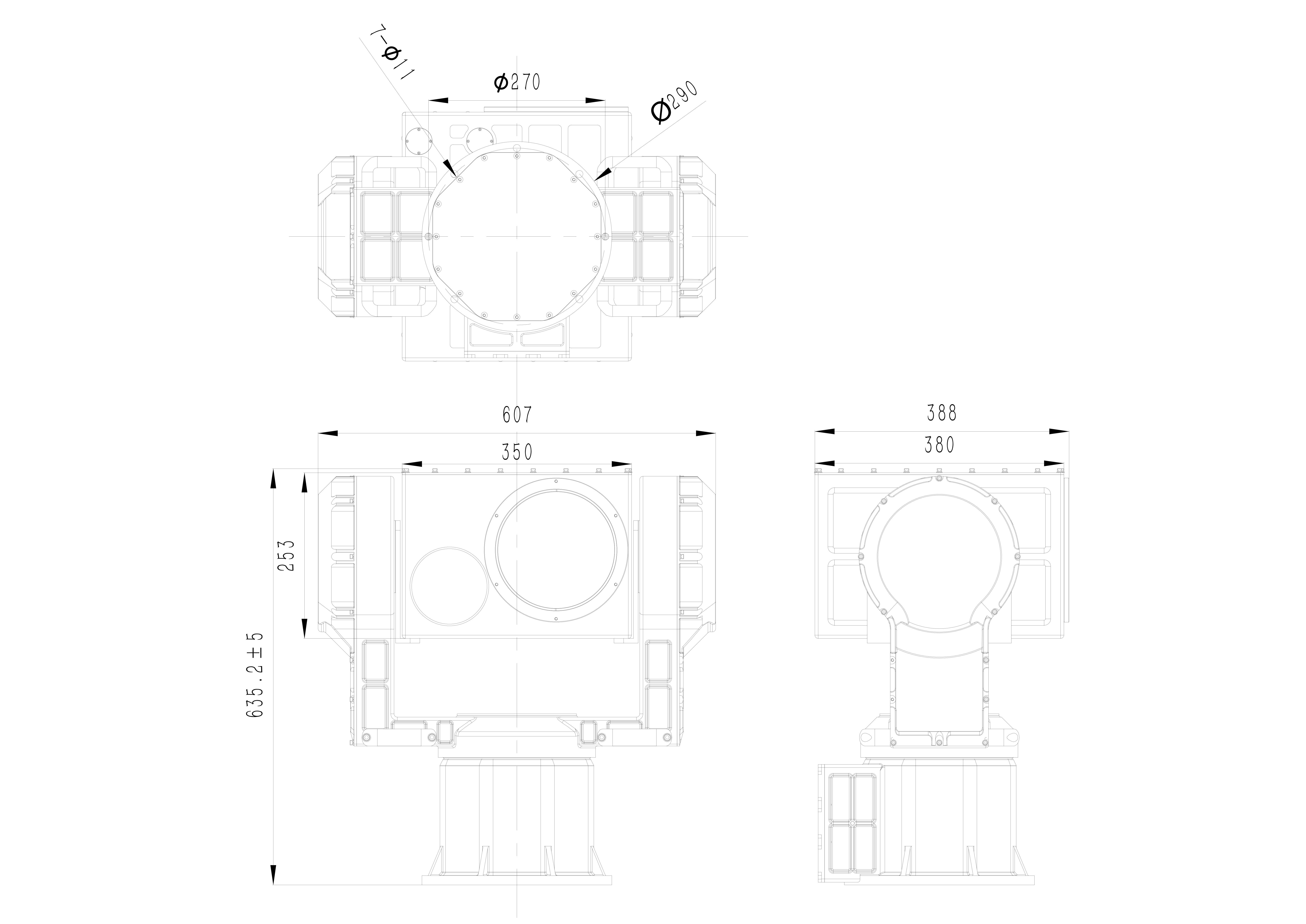

Dimension | 610mm × 388mm × 635mm |
Start a free consultation with our engineer to discuss detailed and customization options.
Key features

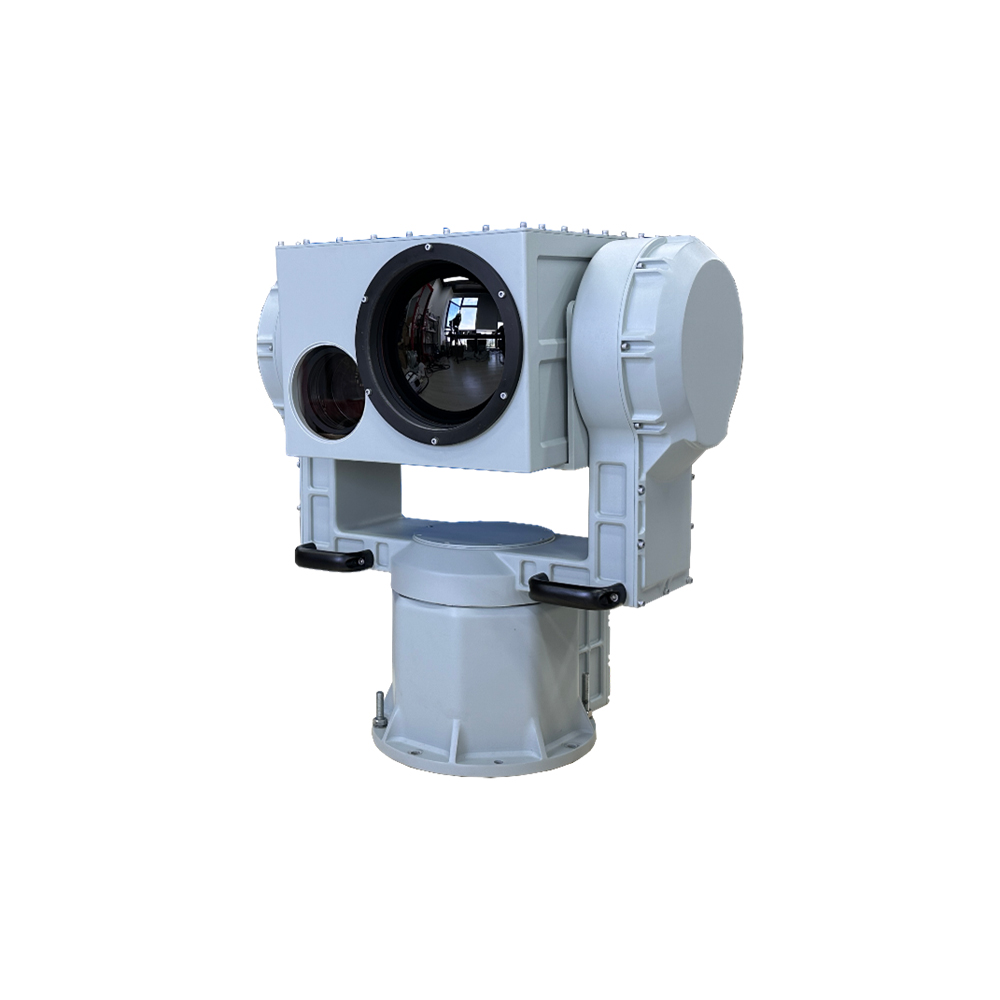

Aimed to assist in naval security and maritime protection missions, this marine camera can deliver exceptional imaging performance even in the most demanding sea conditions. Seamlessly integrating with combat management systems, radar displays, or navigation consoles, it provides real-time thermal and electro-optical imagery for enhanced situational awareness. This flexible multi-sensor configuration allows precise target detection, recognition, and identification across extended ranges, adapting to mission-specific requirements.
Designed for marine operations, the rugged housing is corrosion-resistant and fully sealed to meet IP66/67 and military standards for shock, vibration, and salt-fog protection.
It can be seamlessly integrated with shipboard navigation systems, radar displays, or control consoles, allowing operators to view live thermal and visible imagery and control pan, tilt, and zoom functions directly from onboard interfaces.
With its combination of stability, clarity, and versatility, this system delivers reliable high performance imaging for naval security, coastal protection, offshore platforms, and other critical maritime applications.
Operators can control the pan, tilt, and zoom functions directly through the vessel's integrated control interface, ensuring rapid target acquisition and precision tracking during critical operations. Designed for continuous operation in rough seas, this system combines high-stability gimbal mechanics with multi-spectral imaging capabilities, making it a trusted asset for coastal protection, reconnaissance, and shipborne security missions.
Customization Services Provided
Fully customizable controls of every sensor and gimbal function. All Gimbal sizes can be designed to your specifications. Other lenses available upon request. Tell us your requirements (Sensor; Detector; Mount; Environmental Conditions, etc.), let us design your unique solution.
