Visible Light | Sensor type | 1/1.8" Progressive Scan CMOS | |
Pixel | 2MP | 4MP | |
Resolution | 1920(H) × 1080(V) | 2560(H) × 1440(V) | |
Focal length | 22.2mm～755mm | 11mm～1100mm | |
Optical/Digital zoom | 34× | 100× | |
Iris | / | F2.2～F11 | |
HFOV | 15.72°～0.48° (Wide-Tele) | 32°～0.45° (Wide-Tele) | |
Focus | Auto/Manual/Semi-auto | ||
Cooled MWIR | Detector type | Mercury Cadmium Telluride Medium Wave Cooled Infrared Detector | |
Resolution | 640 × 512 | ||
Spectrum | 3.7～4.8μm | ||
NETD | ≤20mK@F1.0,300K | ||
Cooling time | ≤7 minutes | ||
Focal length | 15mm～300mm | 35mm～690mm | |
FOV | 35.5°×28.7°～1.8°×1.5° | 15.6°×12.5°～0.8°×0.6° | |
IFOV | 1～0.05mrad | 0.43～0.02mrad | |
Focus/Zoom type | Electric focus/zoom | ||
Frame rate | 50Hz/100Hz | 50Hz/100Hz | |
Digital zoom | 1×/2×/3×/4× | ||
Pseudo | White Hot / Black Hot / Rainbow / Iron Red / Lava / Sky / Purple Orange / Gradient Red / Gradient Green / Gradient Blue | ||
Image process | Non-uniformity Correction/Digital Filter Noise Reduction/DDE | ||
Gimbal | Pan speed | 0.01°～30°/s | |
Tilt speed | 0.01°～15°/s | ||
Preset | Max 256 | ||
Pan | 360° rotating continuously | ||
Tilt | -45°～+45° | ||
Cruise | 200, 4 tracks | ||
Dimension | Encode | H.265/H.264 | |
Interface protocol | ONVIF/GB28181 | ||
Communication | 1×BNC/1×RJ45 | ||
Power | DC24V | ||
RH | <90%RH | ||
Protection grade | IP66 | ||
Anti-salt-fog | PH value 6.5～7.2, continuous spraying for 48 hours, no surface change | ||
Operation temp | -40℃～+55℃ | ||
Storage temp | -55℃～+65℃ | ||
Consumption | ≤110W | ||
Weight | ≤50Kg | ||
Dimension | 370mm × 593mm × 550mm | ||
Start a free consultation with our engineer to discuss detailed and customization options.

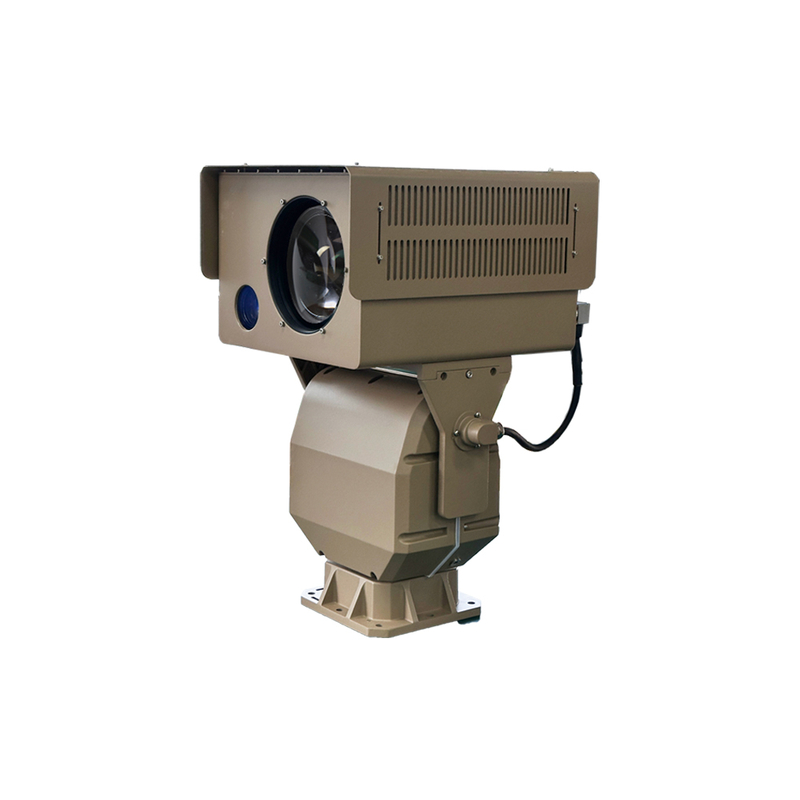

The Cooled MWIR Long-Range Dual-Spectrum Imaging System integrates a high-performance Mercury Cadmium Telluride (MCT) medium-wave cooled infrared detector operating within the 3.7–4.8μm spectral band. With a native resolution of 640 × 512 and a thermal sensitivity of ≤20mK @F1.0, 300K, the system is capable of detecting extremely subtle temperature variations at extended distances. The cooled detector architecture significantly enhances signal-to-noise ratio and long-range discrimination capability compared to uncooled systems.
The visible imaging module adopts a 1/1.8” Progressive Scan CMOS sensor, available in 2MP (1920 × 1080) or 4MP (2560 × 1440) configurations. It supports ultra-long focal length options ranging from 22.2mm up to 1100mm, delivering up to 100× optical zoom. Combined with 3D digital noise reduction and optical defog functionality, the visible channel ensures high-detail target identification even in low-contrast atmospheric conditions.
The system is mounted on a heavy-duty intelligent variable-speed PTZ platform, supporting 360° continuous pan, ±45° tilt, ultra-low 0.01°/s precision movement, and up to 256 presets. Intelligent analytics include regional intrusion detection, cross-boundary detection, multi-scene group cruise detection, and 3D frame selection zoom/positioning, enabling fully automated, unattended operation.
The cooled MCT detector provides superior long-range detection performance and thermal clarity in low-contrast conditions.
≤20mK thermal sensitivity enhances early anomaly detection capability.
Long focal visible optics enable detailed identification and evidence-grade imaging.
Intelligent analytics reduce manpower requirements and improve alarm accuracy.
Heavy-duty PTZ ensures high positioning precision and stable tracking under wind load.
Wide operating temperature range (-40°C to +55°C) guarantees environmental adaptability.
Border and coastal security
Port and harbor monitoring
Airports and transportation hubs
Oil fields and petrochemical complexes
Forest and ecological monitoring
Mining sites and industrial parks
Highways and railway corridors
Strategic storage facilities
Supporting fully customizable controls of every sensor, gimbal function and pan tilt size to your specifications. Tell us your requirements, let us design your unique solution.
