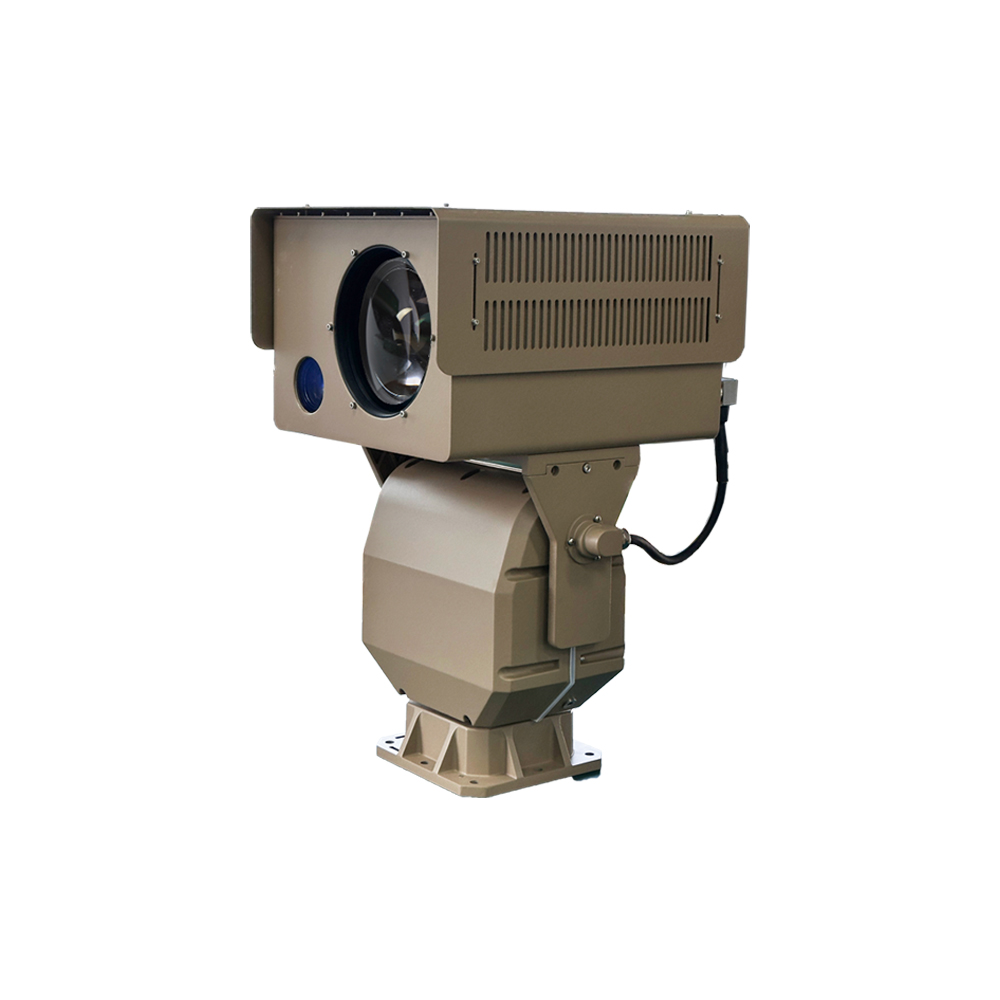

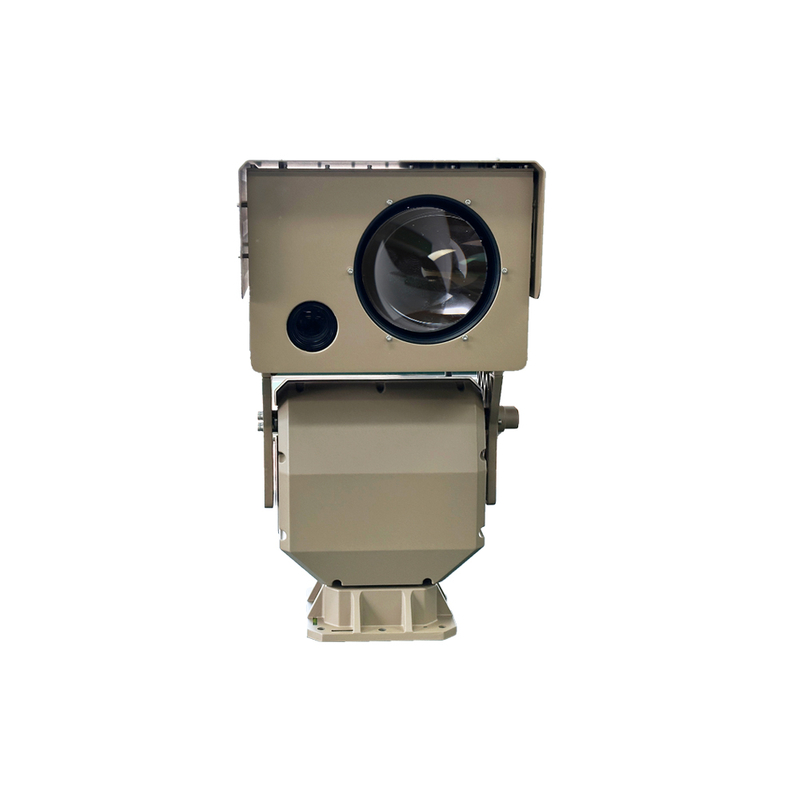

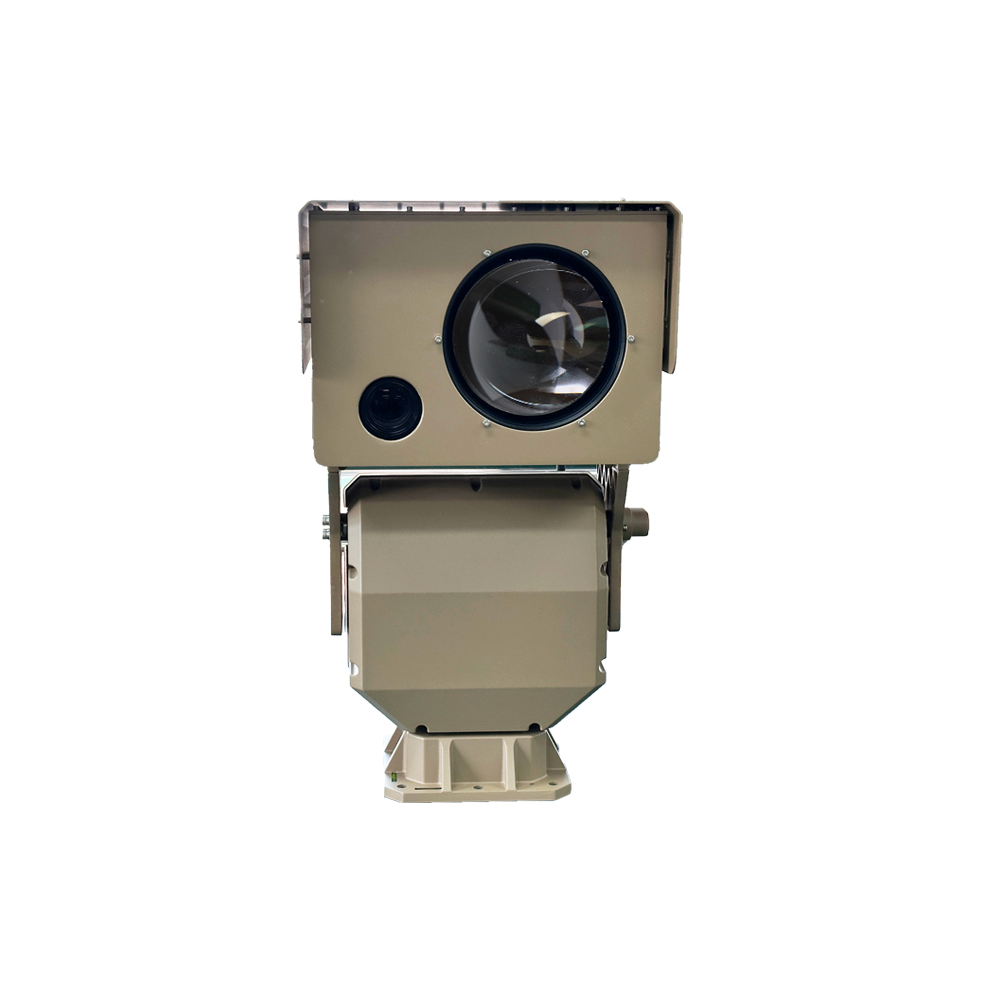

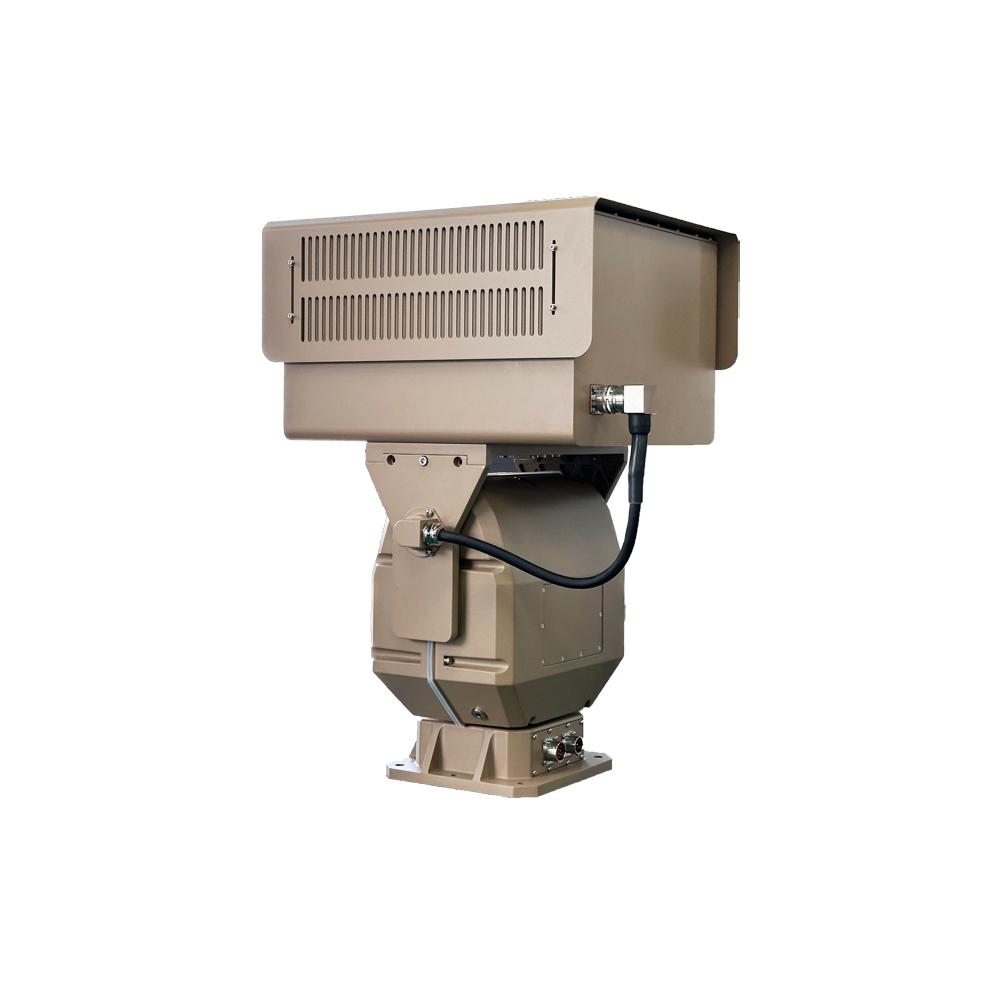

Heavy-Duty Integrated High-Precision Long-Range Dual-Spectrum Cooled Thermal Security Camera

Weighing ≤50kg, this heavy-duty platform integrates cooled MWIR imaging with long-range visible optics in a structurally reinforced housing. It supports electric focus and zoom, digital magnification up to 4×, and advanced image processing including non-uniformity correction and digital noise filtering.
Availability:
Inquiry Add to Basket

Visible Light

Sensor type

1/1.8" Progressive Scan CMOS

Pixel

2MP

4MP

Resolution

1920(H) × 1080(V)

2560(H) × 1440(V)

Focal length

22.2mm～755mm

11mm～1100mm

Optical/Digital zoom

34×

100×

Iris

/

F2.2～F11

HFOV

15.72°～0.48° (Wide-Tele)

32°～0.45° (Wide-Tele)

Focus

Auto/Manual/Semi-auto

Cooled MWIR

Detector type

Mercury Cadmium Telluride Medium Wave Cooled Infrared   Detector

Resolution

640 × 512

Spectrum

3.7～4.8μm

NETD

≤20mK@F1.0,300K

Cooling time

≤7 minutes

Focal length

15mm～300mm

35mm～690mm

FOV

35.5°×28.7°～1.8°×1.5°

15.6°×12.5°～0.8°×0.6°

IFOV

1～0.05mrad

0.43～0.02mrad

Focus/Zoom type

Electric focus/zoom

Frame rate

50Hz/100Hz

50Hz/100Hz

Digital   zoom

1×/2×/3×/4×

Pseudo

White Hot / Black Hot / Rainbow / Iron Red / Lava / Sky   / Purple Orange / Gradient Red / Gradient Green / Gradient Blue

Image   process

Non-uniformity Correction/Digital Filter Noise   Reduction/DDE

Gimbal

Pan speed

0.01°～30°/s

Tilt speed

0.01°～15°/s

Preset

Max 256

Pan

360° rotating continuously

Tilt

-45°～+45°

Cruise

200, 4 tracks

Dimension

Encode

H.265/H.264

Interface protocol

ONVIF/GB28181

Communication

1×BNC/1×RJ45

Power

DC24V

RH

<90%RH

Protection   grade

IP66

Anti-salt-fog

PH value 6.5～7.2, continuous spraying for 48 hours, no surface   change

Operation temp

-40℃～+55℃

Storage temp

-55℃～+65℃

Consumption

≤110W

Weight

≤50Kg

Dimension

370mm × 593mm × 550mm

Start a free consultation with our engineer   to discuss detailed and customization options.



Overview of Product


Weighing ≤50kg, this heavy-duty platform integrates cooled MWIR imaging with long-range visible optics in a structurally reinforced housing. It supports electric focus and zoom, digital magnification up to 4×, and advanced image processing including non-uniformity correction and digital noise filtering. This system represents a high-end surveillance asset engineered for mission-critical applications requiring maximum detection range, thermal sensitivity, and operational stability.



Product Features


Superior detection range enabled by cooled MWIR technology.

Dual-spectrum fusion improves detection-to-identification workflow.

Heavy-duty precision gimbal ensures stable imaging under wind load.

Engineered for continuous, long-term deployment in harsh climates.


Applications


National strategic facilities

Military-grade perimeter security

Coastal defense systems

Cross-regional monitoring networks



Customization Options

Supporting fully customizable controls of every sensor, gimbal function and pan tilt size to your specifications. Tell us your requirements, let us design your unique solution.
