Long-Range Vehicle-Mounted EO/IR LWIR Thermal Camera System with Laser Rangefinder

This EO/IR multi-spectral system integrates a high-definition daylight camera, long-wave infrared thermal imager, and laser rangefinder into a compact vehicle-mounted platform. It is specifically designed to deliver long-range detection, recognition, and identification (DRI) capabilities under dynamic operating conditions. The LWIR sensor provides high thermal sensitivity, enabling clear imaging of heat signatures in complete darkness or visually obscured environments. Combined with precision ranging and intelligent tracking, the system offers a comprehensive situational awareness solution.
Availability:
Inquiry Add to Basket


Overview


Built for mission-critical operations, this vehicle-mounted EO/IR system empowers security teams with superior long-range vision. From highways to remote borders, it ensures reliable monitoring regardless of lighting or weather conditions. Its multi-sensor integration transforms raw imagery into actionable intelligence, helping operators detect, track, and respond to threats faster and more accurately.



Features


Dual-channel visible + LWIR imaging

High-sensitivity uncooled LWIR detector

Long-distance laser ranging capability

Real-time image fusion technology

Rugged vehicle-mounted design

IP66/IP67 environmental protection

Continuous 24/7 operation





Technical Specs

Day Camera

Sensor   type

1/1.8" Progressive Scan CMOS

Pixel

2MP

Frame   rate

50/60Hz

Minimum   illumination

Color: 0.001 lux @ (F1.5, AGC ON); B/W: 0.0001 lux @ (F1.5, AGC ON)

Resolution

1920(H) × 1080(V)

Focal   length

6mm～210mm

Zoom   speed

4.5s±0.5s (Wide-Tele)

Optical/Digital   zoom

35×/16×

Iris

F1.5～F4.8

FOV

61.9°×37.2°～1.9°×1.1° (Wide-Tele)

Minimum   working distance

1m～5m (Wide-Tele)

Focus

Auto/Manual/Semi-auto

Thermal Camera

Detector   type

Uncooled Vanadium Oxide Microbolometer

Resolution

1280 × 1024@12μm

Spectrum

8～14μm

NETD

≤40mK@F1.0,300K

Focal   length

45mm/135mm/F1.2

FOV

9.8°×7.8°/3.3°×2.6°

FOV   Switching Time

≤0.8s

Focus

Auto/Manual

Digital   zoom

1×/2×/4×/8×

Pseudo

White Hot / Black Hot / Rainbow / Iron Red / Lava / Sky / Purple   Orange / Gradient Red / Gradient Green / Gradient Blue

Image   process

Non-uniformity Correction/Digital Filter Noise Reduction/DDE

LRF

Operating   Wavelength

1535 nm ± 10 nm

Maximum Range Measurement Capability

≥3000m

The measurement performance is tested using a 2.3m × 2.3m target   board (or equivalent target) with a reflectivity of 0.3, under environmental   conditions of visibility ≥10km and relative humidity ≤60%.

Minimum Range Measurement Distance

≤20m

Measurement   Accuracy

≤±2m

Detection   Probability

≥98%

Measurement   Frequency

Single, 1Hz, 5Hz, 10Hz selectable

General

Encode

H.265/H.264

Interface   protocols

ONVIF, НТТР,   TCP/IP, UDP, RTP, RTSP, RTCP, DNS, DDNS, DHCP, FTP, NTP, PPPOE, SMTP, UPNP;

Communication

1×RJ45/1×RS422/1×SDI

Power

DC24V

RH

<95%RH

Protection   grade

IP66

Anti-salt-fog

PH value 6.5～7.2, continuous spraying for 48 hours, no surface change

Operation   temp

-40℃～+55℃

Storage   temp

-55℃～+65℃

Consumption

≤24W Static / ≤100W Peak

Weight

≤10Kg

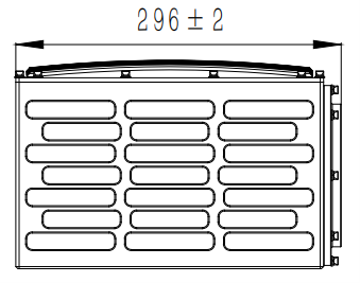

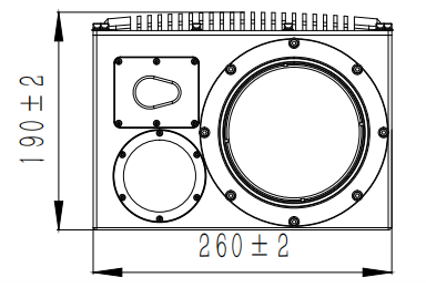

Dimension

317mm × 260mm × 190mm


Customization Options

Start a free consultation with our engineer  to discuss detailed and customization options.
