Relying solely on standalone RF radar leaves operators without visual identification. Standalone EO/IR sensors remain vulnerable to adverse weather and narrow fields of view. High-stakes environments demand a robust approach. You need systems providing all-weather, long-range detection while delivering high-resolution positive identification (PID). This must happen without increasing false alarm rates or overwhelming operator cognitive load. An integrated Radar Optical Imaging System serves as the definitive architecture for bridging early warning detection with precision tracking. By fusing volumetric search capabilities with targeted visual confirmation, these platforms eliminate the blind spots inherent to single-sensor deployments. Understanding how sensor fusion dictates procurement and deployment success helps you evaluate the right technology for your operational environment.
Sensor Synergy: A true radar optical imaging system relies on automated "slew-to-cue" mechanics, where radar handles volumetric search and early detection, instantly directing EO/IR sensors for target verification.
Evaluation Priority: The primary differentiator between commercial and protection-grade systems is the level of sensor fusion (data-level vs. decision-level) and the latency of the tracking handoff.
Implementation Reality: Success hinges on managing SWaP-C (Size, Weight, Power, and Cost) constraints and mitigating calibration drift between the RF and optical axes over time.
Future-Proofing: Emerging technologies, such as photonic integrated circuits (PICs) and Joint Radar and Communication (JRC) architectures, are actively reducing the hardware footprint of radio-optical arrays, fundamentally altering long-term procurement strategies.
Radar delivers round-the-clock, all-weather situational awareness through continuous 360° or sector scanning. Using Doppler processing, it separates moving threats from static background objects and calculates target speed; X-band radar offers sharp resolution for small targets such as drones, while S-band radar works better in poor weather for maritime and coastal long-range monitoring. Pulse compression helps achieve fine range resolution without losing long-range detection power, and coherent integration combines multiple signal echoes to pick up faint low-RCS targets amid heavy background noise.

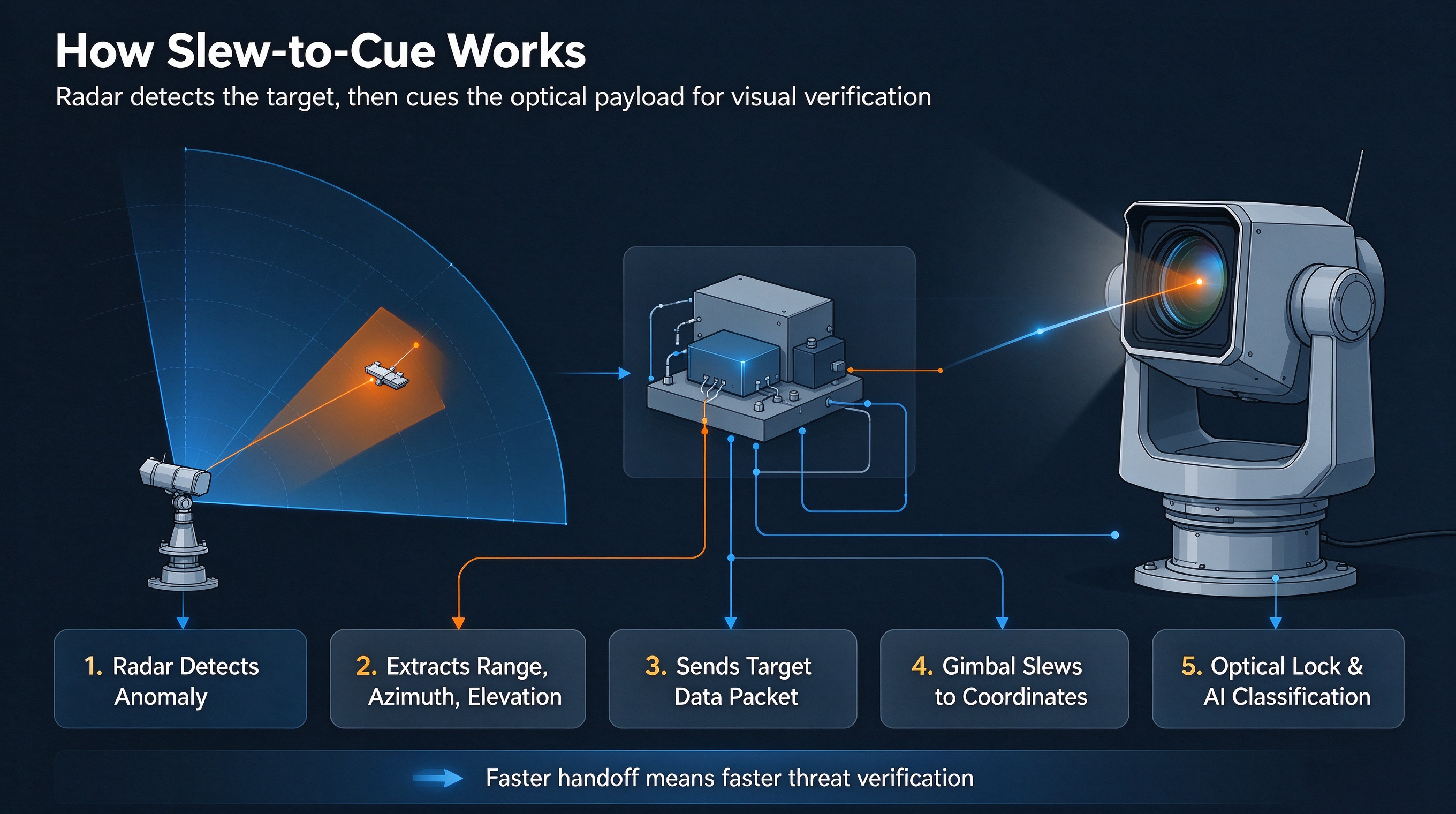

EO/IR payloads add visual confirmation to radar detections, combining daylight cameras, thermal sensors and laser rangefinders. Daylight cameras deliver clear color footage for identification, MWIR thermal sensors suit humid coastal sites, and LWIR sensors perform well in dry, dusty areas, while laser rangefinders supply precise target distance data. The core capability is slew-to-cue: once radar spots a target and calculates its 3D position and speed, it sends coordinates to the gimbal, which quickly rotates the optical camera onto the target. The lens then focuses automatically, and AI analyzes the video to classify the object.
Photonic Integrated Circuits (PICs) use light instead of electrons to process signals, replacing bulky copper radio hardware with tiny silicon optical waveguides. This technology cuts signal loss, power draw and heat output, removes the need for large cooling systems, and supports wider bandwidth for higher-quality data. PIC-based radar-optical arrays are much smaller and lighter than traditional designs, making it possible to install integrated sensor systems in space-constrained locations.
| Component Feature | Traditional RF Architecture | PIC-Based Architecture |
|---|---|---|
| Signal Transmission | Copper cables and heavy waveguides | Optical fibers and silicon waveguides |
| Bandwidth Capacity | Limited by electronic bottlenecks | Ultra-wideband optical processing |
| Thermal Output | High (requires active cooling) | Low (passive cooling often sufficient) |
| Form Factor | Bulky and heavy | Highly miniaturized and lightweight |
Real-world security faces heavy background interference from ground clutter, sea waves, and atmospheric noise, which complicates the detection of small, low-RCS targets such as low-flying drones that create false radar echoes over choppy water. Modern systems use precise SNR standards and adaptive CFAR algorithms to dynamically adjust detection thresholds, allowing the radar to maintain high sensitivity in clear conditions while filtering wave clutter, rain noise, and false ghost tracks in complex environments.
Excessive false alarms reduce operator reliability and cause missed real threats, making intelligent filtering essential for modern security systems. Radar first filters targets based on movement speed and trajectory to rule out slow or erratic non-threats, while AI-powered optical and thermal analysis further classifies objects in real time. This layered fusion method accurately distinguishes wildlife, floating debris, and weather disturbances from dangerous drones or human activity, ensuring only valid security or rescue events trigger system alerts.
Fast threat tracking depends on low system latency and fast mechanical gimbal performance to lock onto agile, high-speed targets before they move out of view. High-performance radar-optical systems deliver near-instant slew-to-cue handoff, far exceeding industry basic response standards, while high-speed brushless direct-drive motors support fast pan-and-tilt movement above 60 degrees per second. Optimized data buses and streamlined processing ensure radar coordinates reach the optical sensor without delay, enabling continuous, accurate target locking in dynamic scenarios.
Understanding how sensors share information is vital. Systems generally employ either decision-level fusion or data-level fusion. In decision-level fusion, the radar and optical sensors process their data independently. They only combine their final outputs at the command interface. The radar identifies coordinates and the camera looks at those coordinates to classify the object. This approach is easier to implement but can miss subtle correlations between the two data streams.
Data-level, or pixel-level fusion, merges raw RF and optical data before processing occurs. The system analyzes the radar's Doppler shift alongside the camera's pixel changes simultaneously. This creates a much richer dataset for the AI algorithms to analyze. Evaluating which fusion architecture aligns with your specific operational requirements and processing budgets is essential for long-term success. Data-level fusion requires significantly more computing power but offers superior tracking in highly contested environments.
| Fusion Architecture | Data Processing Location | System Latency | Hardware Demands |
|---|---|---|---|
| Decision-Level Fusion | Independent sensor processors | Moderate (500ms - 2s) | Standard edge computing units |
| Data-Level Fusion | Centralized fusion engine | Ultra-Low (Under 100ms) | High-performance GPU accelerators |
Radar and optical sensors perform differently in harsh weather, so integrated systems balance their strengths for consistent protection. Rain weakens high-frequency radar signals, while fog and darkness disable regular daylight cameras. Thermal vision works at night and cuts through light smoke, and radar sustains long-range detection even in heavy fog when visual identification fails. For reliable outdoor operation, choose rugged IP67/IP68-rated enclosures and DLC-coated lenses that resist water, dust, and sand abrasion.
Modern radar-optical security systems support flexible expansion and easy network integration. The emerging JRC (Joint Radar and Communication) design shares one antenna for target detection and high-speed data transmission, saving size, weight, and power on limited payload platforms. Compatible with standard IP networks, VMS, and C2 systems, these open-architecture solutions avoid vendor lock-in and support future upgrades, with ONVIF S/T compliance ensuring smooth video streaming and PTZ control across existing security infrastructures.
Extra hardware adds physical limitations, so you need to weigh tradeoffs when installing dual-sensor systems. Static sites can support bigger, heavier units with higher power use, but heavy pan-tilt cameras on tall masts must withstand wind forces; a 100-pound sensor package creates twisting force in strong winds, causing small vibrations that blur video. Mobile and tactical platforms need tight SWaP control to stay maneuverable. Better image resolution needs larger lenses and heavier camera mounts, while longer radar range uses much more power and creates extra heat that needs cooling. Match your target detection range to the physical limits and available power of your mounting hardware — tactical vehicles often only supply 24V DC power, restricting how large your radar array can be.
High-quality sensors produce huge volumes of data, so you need to assess your network to transfer this information. Sending HD EO/IR video plus constant radar tracking data can overload regular networks, causing missing video frames, delayed alerts and unstable operation. You can choose between edge processing or central server processing. Edge processing runs analysis right on the sensor, only sending key alerts, metadata and compressed video to save bandwidth and work with cellular or satellite connections. Centralized processing sends raw data to a main server; it needs much more network capacity but supports more advanced multi-sensor AI analysis with powerful server GPUs. Current systems use H.265 compression to shrink optical video size, though radar data still needs dedicated network bandwidth.
Define exact minimum and maximum detection range requirements based on local topography and line-of-sight limitations.
Audit existing network infrastructure to determine if edge processing is necessary to manage bandwidth constraints.
Request live technical demonstrations focused specifically on false-alarm rejection rates in high-clutter environments.
Verify the availability of open APIs and standardized data output formats with the manufacturer before finalizing procurement.
A: Radar provides continuous, all-weather, 360-degree volumetric search capabilities to detect targets at long ranges. It instantly cues the EO/IR sensor for positive visual identification. This completely overcomes the narrow field-of-view limitation inherent to standalone optical cameras.
A: Slew-to-cue is an automated tracking process. The radar detects an object and calculates its precise coordinates, including range, azimuth, and elevation. It instantly sends a command to the optical camera's pan-tilt mechanism, forcing it to immediately focus on that exact location for visual verification.
A: Coherent integration combines returns from multiple radar pulses while preserving both amplitude and phase information to detect faint targets. Pulse compression allows the system to maintain high range resolution without losing the high average power needed to detect small targets in high-noise environments.
A: PICs utilize light instead of electrons to process and transmit signals. This results in production-ready radio-optical arrays that are significantly lighter, consume far less power, and offer vastly superior bandwidth and signal integrity compared to traditional electronic circuits.
A: A JRC system is an advanced architecture that combines radar sensing and data communication capabilities into one highly efficient hardware package. This dual-use approach saves critical space, weight, and power for aerospace and advanced security applications.
A: Yes, modern systems integrate seamlessly into standard IP networks and Video Management Systems. This requires the hardware to support open protocols, robust developer SDKs, open APIs, and edge-based processing capabilities to effectively manage network bandwidth.
A: Alignment drift is caused by environmental factors such as high winds, physical vibrations, and extreme temperature fluctuations. These forces cause micro-shifts in the mounting hardware over time, leading to a mismatch between the radar's detected coordinates and the camera's actual field of view.
