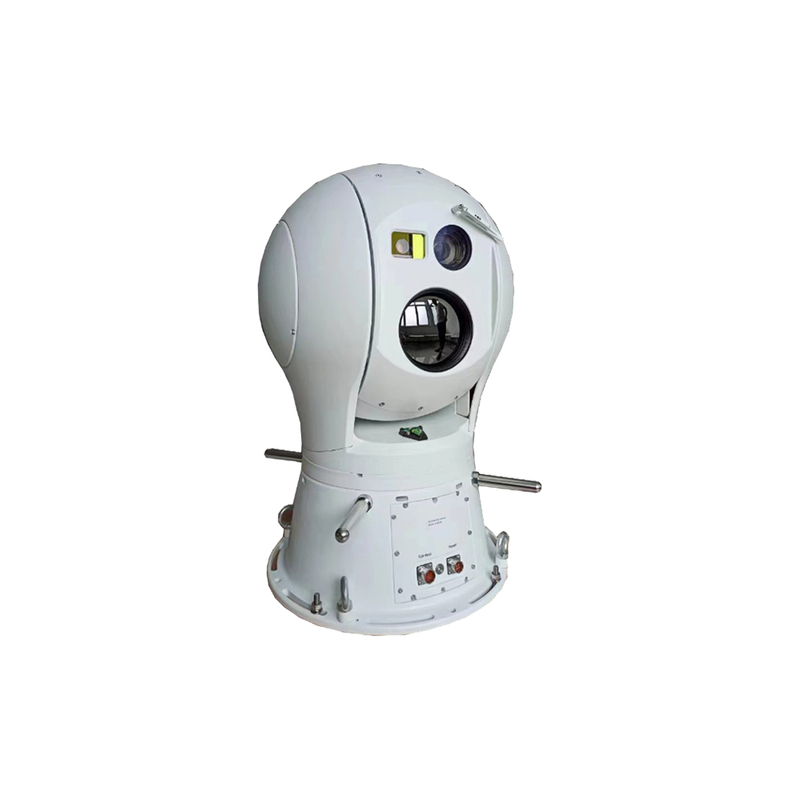

Ultra-Long Range Gyro-stabilized Thermal Optical Multi-Sensor PTZ Surveillance System

The Ultra-Long Range Thermal & Optical Multi-Sensor Surveillance System delivers reliable long-distance imaging and target tracking for critical security applications. By combining high-resolution visible cameras with advanced thermal sensors, the system provides comprehensive monitoring capability across all lighting and weather conditions.
Availability:
Inquiry Add to Basket


Model

RYAN-GQLW12VH3K-H

Day Camera

Sensor type

1/1.8" Progressive Scan CMOS

Pixel

400MP

Frame rate

25/30Hz

Minimum illumination

Color: 0.005 lux @ (F1.4, AGC ON)

Resolution

2688(H) × 1520(V)

Focal length

6mm～300mm

Zoom speed

6.5s±0.5s (Wide-Tele)

Optical/Digital zoom

50×/16×

Iris

F1.4～F4.5

HFOV

66.0°～1.4° (Wide-Tele)

Minimum working distance

1m～5m (Wide-Tele)

Focus

Auto/Manual/Semi-auto

Thermal   Camera

Detector type

Uncooled Vanadium Oxide Microbolometer

Resolution

640 × 512@12μm

Spectrum

8～14μm

NETD

≤40mK@F1.0,300K

Focal length

20mm～120mm/F1.2

FOV

21.7°×17.5°～3.7°×2.9°

Focus

Auto/Manual

Digital zoom

1×/2×/4×/8×

Pseudo

White Hot / Black Hot / Rainbow / Iron Red / Lava   / Sky / Purple Orange / Gradient Red / Gradient Green / Gradient Blue

Image process

Non-uniformity Correction/Digital Filter Noise   Reduction/DDE

Pan-Tilt

Platform

2-axis

Stable accuracy

≤0.5mrad

Pan speed

0.01°～80°/s

Tilt speed

0.01°～80°/s

Pan accelerate speed

≥80°/s2

Tilt accelerate speed

≥80°/s2

Repeat positioning accuracy

±0.01°

Preset

Max 256

Pan/ Tilt

360° rotating continuously / -75°～+75°

Motor drive type

Direct Drive

Patrol scanning

8 patrols, up to 32 presets for each patrol

General

Encode

H.265/H.264

Interface protocols

ONVIF,   НТТР, TCP/IP, UDP, RTP, RTSP, RTCP, DNS, DDNS, DHCP, FTP, NTP, PPPOE, SMTP,   UPNP;

Communication

1×RJ45/1×RS422/2×SDI

Power

DC24V

RH

<95%RH

Protection grade

IP66

Anti-salt-fog

PH value 6.5～7.2, continuous spraying for 48 hours, no surface change

Operation temp

-40℃～+55℃

Storage temp

-55℃～+65℃

Consumption

≤50W Static / ≤200W Peak

Weight

≤25Kg

Dimension

Φ310mm × 450mm

Start a free consultation with our engineer   to discuss detailed and customization options.



Overview of Product


This system incorporates advanced optical imaging, thermal detection, and optional laser sensors into a stabilized surveillance payload. High-precision positioning allows operators to monitor large areas with exceptional accuracy.



Product Features


Gyro-stabilized imaging under continuous vessel motion

Long-range day/night maritime target identification

Wide-area coastal coverage with continuous rotation

EO/IR sensor fusion for low-visibility environments

Ruggedized, corrosion-resistant design for marine use

Long-range thermal detection capability

High-definition optical zoom camera

Multi-sensor fusion imaging

Continuous 360° surveillance

Integrated video analytics

Ruggedized outdoor design



Applications


Coastal and offshore monitoring

Border defense systems

Pipeline and oilfield monitoring

Industrial perimeter security



Customization

Supporting fully customizable controls of every sensor, gimbal function and pan tilt size to your specifications. Click here to make a free enquiry
