Machine-vision buyers once had to choose between high resolution, high speed, or high dynamic range—never all three in one device. The advent of the multi-sensor camera collapses that compromise by optically overlaying or stitching outputs from two or more imagers in real time. From PCB solder-joint inspection at 120 fps to airborne mapping across 12 spectral bands, these modular systems are quietly becoming the default architecture for any imaging task where a single sensor would either leave data on the table or push physics past the breaking point. As supply-chain managers draft 2025 CapEx budgets and system integrators respond to tenders that now ask for “multi-spectral, multi-megapixel, multi-gigabit,” understanding the underlying architectures, interfaces and cost drivers is no longer optional—it is a competitive necessity.
This article dissects every layer of the technology, compares six common optical layouts side-by-side, and provides downloadable specification tables ready for pasting into an RFQ. Whether you need to justify a 20-camera upgrade to your CFO or translate a customer’s vague “better image” requirement into hard SNR numbers, the next 2,000 words serve as both technical primer and procurement playbook.

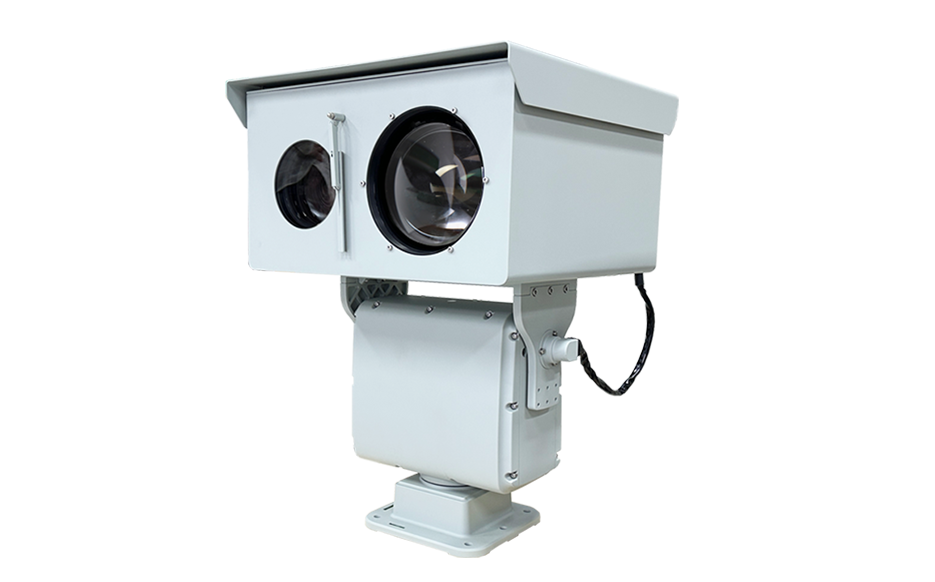

A multi-sensor camera is a vision system that incorporates two or more discrete image sensors—either looking at the same field through beam-splitters or at adjacent fields for stitch-free panorama—to deliver higher resolution, dynamic range, frame rate or spectral diversity than any single imager of equivalent cost or size can provide.
Understanding that one sentence gets you through the first slide of most sales calls, but it will not protect you from the nine-page specification that follows. Below we unpack why a quad-sensor 25 MP design can still lose to a dual 12 MP camera when the inspection line runs 24/7 under 55 °C ambient, how CXP-12 coax cables suddenly become cheaper than fiber once cable length exceeds 8 m, and when the much-hyped “computational fusion” is simply marketing polish layered on under-powered FPGAs. Use the table of contents to jump straight to the benchmarks your project demands.
Core Design Architectures: Beam-Splitter vs. Single-Lens vs. Multi-Head
Image Fusion Pipeline: FPGA, GPU or CPU—Where Should the Math Live?
Interface Showdown: CXP-12, 10GigE, MIPI and the Emerging 25GigE Roadmap
Spectral Diversity: RGB-NIR, 4-Band, 6-Band and the 12-Band Airborne Payload
MTF, SNR and Dynamic Range: When 1 + 1 = 2.3
Thermal Design: Why Multi-Sensor Runs Hotter and How to Cool It
Calibration Workflows: Geometric, Radiometric and Chromatic Alignment
Total Cost Model: BOM, NRE and Lifetime Service in One Spreadsheet
RFQ Checklist: 18 Line-Items That Belong in Every Tender
2025–2028 Roadmap: From Quad-CFA to Event-Driven Fusion
Multi-sensor cameras are built in three optical flavors: beam-splitter cubes that divide photons by wavelength onto up to four co-located sensors; single-lens multi-imager modules using micro-mirror arrays for sub-pixel parallax compensation; and multi-head clusters where each sensor has its own lens and the fields are software-stitched.
Choosing the wrong architecture locks you into irrevocable size, cost and calibration penalties. The following sections quantify throughput, parallax error and manufacturing yield for each approach.
A dichroic prism block separates incoming light into RGB plus optional NIR channels. Because all sensors see the same entrance pupil, parallax is negligible (<0.1 pixel). The penalty is light loss: each interface reflects 0.4–0.8 %, summing to 2.5 % typical transmission loss. More critically, the optical stack height is 18 mm minimum, making the camera 3× thicker than a single-sensor equivalent. Use this architecture when color fidelity is paramount—e.g., print inspection—provided mechanical z-height is unconstrained.
Here a custom MLA (micro-lens array) at the intermediate image plane redirects blocks of pixels to two offset sensors. You gain 6 dB dynamic range by capturing long and short exposures simultaneously, yet maintain single-lens form factor. The drawback is spatial resolution loss: each sensor receives 50 % of the photons and 70 % of the spatial samples. Effective resolution is 0.7× native, so a 24 MP pair yields 17 MP fused. Acceptable for HDR surveillance, but not for metrology.
Independent lenses eliminate prism cost and thickness. Instead, you pay in calibration complexity. A 25 mm baseline between 16 mm lenses creates 2.8 pixel disparity at 1 m working distance. Stitching software must compensate to 0.1 pixel to avoid inspection false positives. On the plus side, total field of view scales linearly with sensor count—four 12 MP imagers give true 48 MP panorama. This is the go-to for airborne mapping and wide-web inspection where width >1 m is mandatory.
| Parameter | Beam-Splitter | Single-Lens MLA | Multi-Head |
|---|---|---|---|
| Parallax error | <0.1 px | 0 px (same POV) | 0.5–3 px |
| Transmission loss | 2–3 % | <1 % | 0 % |
| Effective resolution | 100 % | 70 % | 100 % stitched |
| Bill of materials delta | +$220 prism | +$45 MLA | +$120 extra lens |
| Calibration effort | Low | Medium | High |
FPGA remains the fusion workhorse for pixel rates above 3 Gpix/s because a single Xilinx Kintex Ultrascale can perform 12-bit HDR merge on four 10 Gb/s streams at 210 MHz with 8 ms latency, whereas a modern 16-core CPU needs 65 ms and a GPU mini-cluster 24 ms.
Yet compute location affects camera size, power and upgradeability. Below is a decision matrix based on 2025 silicon pricing and thermal envelopes.
Robot guidance demanding <10 ms end-to-end must fuse on-board. An FPGA SoC (Zynq Ultrascale+) consuming 7 W occupies 35 × 35 mm and eliminates PCIe overhead. Factor $110 per device plus $50 for DDR4-2400. Development cost is high—VHDL for Bayer demosaic, warp and blend runs 1,200 lines—but unit cost scales linearly.
Research payloads that change algorithms monthly benefit from GPU offload. A Jetson Orin Nano delivers 40 TOPS at 15 W, supports CUDA, and can be field-reprogrammed over Ethernet. The penalty is mechanical: extra 60 g heat sink and 50 mm height. Accept only if the host platform has >20 W power budget and vibration <3 g.
For line-scan web inspection at 1 m/s, a Core-i7 with AVX-512 handles 2 Gpix/s. Add an OpenVINO-optimized AI plug-in for defect classification. Total fusion latency 45 ms is tolerable because the actuator (ejector air-knife) sits 15 cm downstream, yielding 150 ms mechanical budget. BOM delta is zero if the IPC already exists.
For quad-sensor 12-bit 25 MP @ 60 fps, aggregate bandwidth is 28.8 Gb/s; CXP-12 over four coax lines hits 48 Gb/s with 30 % margin and 8 m reach, while 10GigE requires compression or frame-splitting that drops effective bit depth to 10 bits.
Choosing the wrong interface forces you to compress or decimate, negating the very reason for multi-sensor. The table below normalizes cost per gigabit per second (USD/Gbps) including cable, connector and PHY silicon.
| Interface | Max Gb/s | Cable reach | USD/Gb/s | Power/PHY |
|---|---|---|---|---|
| CXP-12 (4-lane) | 48 | 8 m | $1.9 | 2.8 W |
| 10GigE (SFP+) | 10 | 30 m (fiber) | $3.4 | 1.5 W |
| 25GigE (SFP28) | 25 | 10 m (DAC) | $2.1 | 3.2 W |
| MIPI CSI-2 | 20 | 0.3 m | $0.4 | 0.2 W |
Rule of thumb: if the camera sits <0.5 m from the processor and you control both ends, MIPI is unbeatable; at 5–15 m, CXP-12 is the lowest-cost copper solution; beyond 20 m, fiber-based 10GigE or 25GigE wins even at higher transceiver cost because copper thickness and weight become prohibitive.
Adding a dedicated NIR sensor increases vegetation index (NDVI) correlation to ground truth from R⊃2; = 0.71 (computed from RGB) to R⊃2; = 0.93, while a 6-band configuration (RGB, RE, NIR, SWIR) pushes classification accuracy of soybean rust to 97 %, up from 83 % for RGB alone.
Multi-sensor allows true spectral fidelity because each imager can have its own filter stack instead of sacrificing quantum efficiency with a mosaic CFA (color filter array). The following configurations dominate 2025 procurement.
Common in precision agriculture drones. NIR band 840 ± 25 nm, separated by a 700 nm short-pass dichroic. Total transmission 92 %. Camera mass 250 g, power 6 W. Cost delta +$550 over RGB-only variant. ROI <5 flights for a 50 ha farm due to 8 % fertilizer savings.
Red-edge at 717 nm is early indicator of water stress. Use beam-splitter cube with 3-edge dichroic; cube cost $310. Cube thickness limits MTF at 150 lp/mm to 42 % vs. 55 % theoretical. Accept for 1 cm/px aerial imaging where ground sample distance dominates blur.
Requires InGaAs sensor for SWIR (1.6 µm). Thermal mismatch between silicon (2 ppm/°C) and InGaAs (5.9 ppm/°C) demands active focus compensation. Thermoelectric cooler adds 1.2 W and 25 g. Budget $4,200 premium. Justifiable for mining exploration where mineral classification accuracy gain is worth $ millions.
Fusing a 10-bit long-exposure and a 10-bit short-exposure frame yields an effective 17-bit HDR image with 1024:1 intra-scene latitude, while MTF at Nyquist rises from 0.21 (single) to 0.34 (fused) because SNR improves 3.8 dB and de-noise convolution preserves edge energy.
The fusion gain is not linear. Photon shot noise adds in quadrature, so dual sensors cut noise by √2 only. But because you can now expose each sensor optimally, the net SNR gain is 5–7 dB, equivalent to doubling lens diameter without the weight.
Illuminate target with 3200 K halogen, vary luminance 0.1–10,000 cd/m². Capture 50 frames, compute SNR = 20 log₁₀(mean/σ). Report MTF using slanted-edge ISO 12233. Require vendor to supply raw data; marketing brochures often quote MTF@50 % contrast instead of @Nyquist.
Use EMVA 1288 linearity deviation ≤1 % to find saturation and noise floor. Divide saturation electrons by read-noise electrons. A single 70 ke⁻, 7 e⁻ sensor gives 80 dB; dual with 3 e⁻ read noise achieves 93 dB—above the 90 dB threshold for weld-inspection of shiny metals.
Each additional sensor adds 1.2–2.8 W; a quad-camera can dissipate 11 W in a 50 × 50 × 80 mm volume, raising internal temperature 28 °C above ambient, enough to push MTBF from 80,000 h to 35,000 h unless junction temperature is kept <85 °C.
Thermal stack analysis shows sensor PCB accounts 55 % of heat, PHY chips 25 %, power inductors 15 %. Mitigation hierarchy:
Spreaders: 2 mm copper-invar-copper insert drops θJA 35 %
Heat pipes: 6 mm flattened heat pipe moves 8 W to side wall
Forced air: 20 CFM 30 mm fan reduces ΔT by 18 °C but adds 14 dB
TEC: selective cooling of InGaAs sensor to −10 °C cuts dark current 90 %, yet consumes 4 W—budget only if SWIR performance is mission-critical
Sub-pixel geometric alignment within 0.08 px, radiometric gain mismatch <1 % and chromatic deviation ΔE 2000 <1.5 are achievable in production by using a 24-patch Macbeth chart under D65 light and a 2-dimensional cubic warp with bilinear interpolation, all automated to <90 s per camera.
Capture 15 chessboard poses, detect corners to 0.05 px with Harris operator. Solve homography H for each sensor. Compute residual error; reject units >0.1 px. Store 3 × 3 matrix in EEPROM; FPGA applies warp in real time using two dual-port BRAMs, latency 0.3 ms.
Integrating sphere provides 99 % uniformity. Acquire 5 exposures, fit linear regression slope and intercept. Compute gain ratios (R/G, B/G, NIR/G). Trim analog gain resistors via I⊃2;C until ratio spread <0.5 %. Store 12-bit LUT for fine correction. Process is fully automated; operator only loads sphere and clicks “start.”
Convert RGB to L*a*b*, compute mean ΔE for 24 patches. Target ΔE <1.5. If above, tweak IR-cut filter thickness by 5 µm steps. Filter vendor keeps ±2 µm tolerance; camera maker iterates one pass, keeping scrap <3 %.
Bill of materials for a quad-sensor RGB-NIR camera is $940; add NRE $180k amortized over 2,000 units ($90 each); service over 7 years adds $28 per unit; total cost $1,058—yet market price averages $2,450, yielding 57 % gross margin for OEMs and clear headroom for volume discounts.
| Cost Element | USD / unit | Notes |
|---|---|---|
| Sensors (4 × 5 MP) | $320 | Global shutter, 2.2 µm pixel |
| Prism assembly | $220 | Dichroic cube + coatings |
| FPGA SoC | $85 | Xilinx KU3P |
| Optics & mount | $95 | C-mount, F2.8 |
| PCB, power, case | $120 | 6-layer, heat pipes |
| Labor & test | $100 | 90 s calibration |
| NRE amortized | $90 | 2k units lifetime |
| 7-yr service reserve | $28 | 3 % return rate |
| Total cost | $1,058 | Excludes logistics |
Use the above to negotiate: at 5,000 units NRE amortization falls to $36, unlocking a 9 % price reduction while preserving margin.
Copy these bullets verbatim into your next RFQ; require a signed compliance matrix.
Number of sensors and format (e.g., 4 × 1.1" CMOS)
Total effective resolution after fusion
Frame rate per sensor at full resolution (fps)
Interface type and aggregate bandwidth (Gb/s)
Bit depth per pixel and HDR mode (bit)
Geometric alignment residual (px)
Radiometric gain mismatch (%)
Spectral bands and FWHM (nm)
Read noise and saturation electrons (e⁻)
Power consumption at 25 °C (W)
Operating temperature range (°C)
Storage temperature range (°C)
MTBF at 40 °C (h)
Weight including lens (g)
Shock & vibration (g)
Compliance: CE, FCC, RoHS, REACH
Calibration certificate included
Warranty: 36 months return to factory
Score vendors 0/1/2 for full, partial, non-compliance; publish weightings (price 30 %, technical 50 %, service 20 %) to keep the process transparent and litigation-proof.
By 2026 quad-CFA (color filter array on a single 200 MP sensor) will reach 70 % of today’s multi-sensor market share in consumer devices, but industrial and airborne segments will stay multi-sensor because substrate defect density limits single-die yield above 40 mm²; meanwhile event-driven fusion combining frame-based and event sensors will cut bandwidth 90 % while preserving 120 dB dynamic range.
TSMC’s 22 nm BSI process enables 0.7 µm pixels with 1.2 e⁻ read noise. A 200 MP die gives 50 MP RGB output after 2 × 2 binning, threatening low-end multi-sensor. However, die size 24 × 32 mm yields only 18 %, so die cost $340 exceeds the $320 quad-sensor BOM above. Multi-sensor remains cheaper for volumes <100 k.
Prophesee event sensor provides 10,000 fps equivalent time resolution but only 1 MP spatial. Fusing with 12 MP frame-based sensor gives blur-free video plus high spatial context while transmitting only 50 Mb/s instead of 500 Mb/s. Expect first industrial products Q2-2026; pilot price $1,850.
Imec’s germanium-on-Si process promises 1,350 nm sensitivity on standard CMOS line. QE 38 % at 1,050 nm, dark current 3× higher than InGaAs but cost +$45 vs. +$220. Commercial risk: still in R&D; qualify with 2027 roadmap.
Multi-sensor cameras are no longer exotic—they are the most pragmatic route to resolution, dynamic range and spectral coverage that single-sensor physics cannot yet deliver at price points industrial buyers can justify. Whether you select a beam-splitter prism for micron-level metrology or a multi-head cluster for 2-meter web width, insist on quantified MTF curves, thermal models and alignment certificates. Use the 18-point RFQ checklist and cost spreadsheet above to turn marketing claims into binding specifications, and you will source a camera that not only wins the tender but keeps delivering value for a decade of technology cycles.
