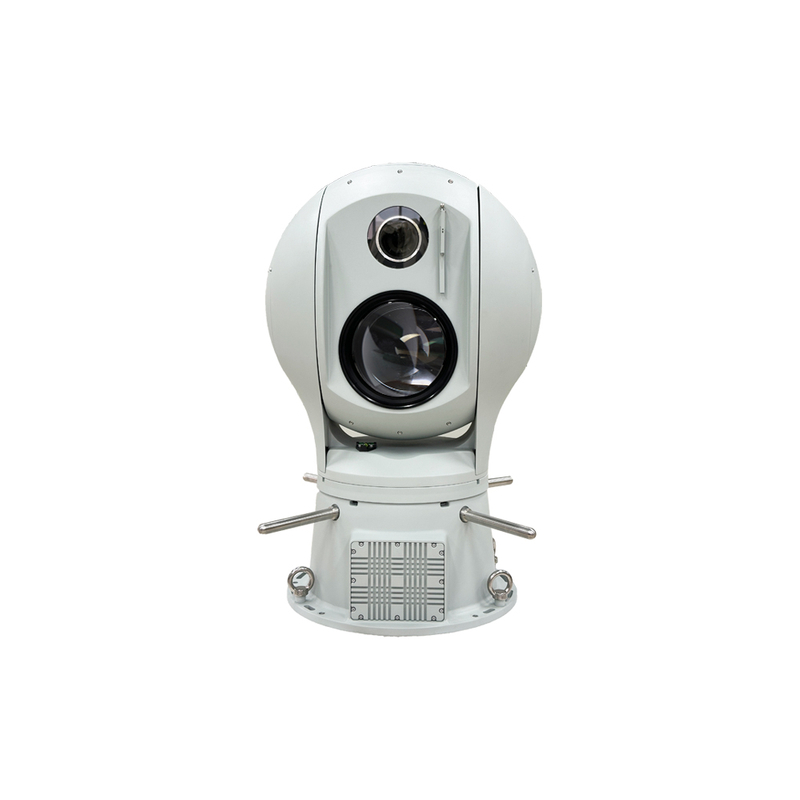

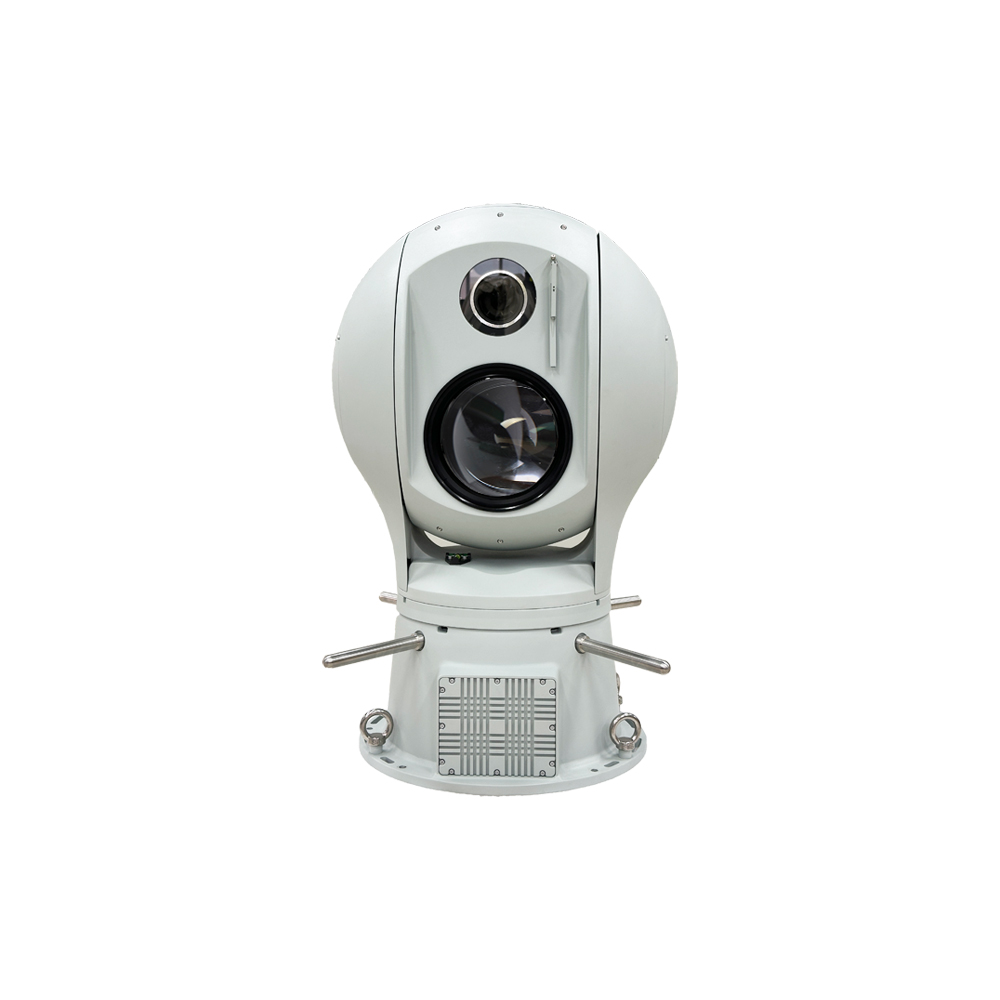

2MP 640×512 Long Range Thermal Imaging PTZ Dome Camera for Fishery Monitoring

2MP 640×512 Long Range Thermal Imaging PTZ Dome Camera for Fishery Monitoring

Optimized for long-range detection and tracking, the High-Precision Globe-Shaped Gyro Stabilization System serves as an essential optical sensor in counter-UAS and airspace monitoring systems. The gyro-stabilized platform ensures accurate target lock and continuous visual tracking of small aerial objects, even on mobile or vibrating platforms. When integrated with thermal imaging and laser ranging modules, it provides reliable visual confirmation and tracking data for anti-drone operations.


Availability:



Inquiry Add to Basket

Product Description

Gyro-stabilization	Platform	2-axis
	Stable accuracy	≤0.2mrad (RMS)
	Pan	360° continuously
	Tilt	-90°～+90°
	Pan speed	≥100°/s
	Tilt speed	≥80°/s
	Pan Accelerate speed	≥100°/s²
	Tilt Accelerate speed	≥80°/s²
	Repeat positioning accuracy	±0.01°, ±0.003°
Day Camera	Sensor type	1/1.8 '' Progressive Scan CMOS
	Pixels	2Mp, 4Mp
	Resolution	1920(H) × 1080(V), 2560(H) × 1440(V)
	Focal length	5.5mm～180mm, 6.5mm～240mm, 6.1mm～317mm, 10～550mm, 15～850mm
	Focus	Auto/Manual/Semi-auto
	Minimum illumination	Color : 0.0005Lux/F1.4/AGC ON; Black and White : 0.0001Lux/F1.4/AGC ON
	Optical fog penetration	Support
Thermal Camera	Detector type	Uncooled Vanadium Oxide Microbolometer
	Resolution	640 × 512@17μm, 1280 × 1024@12μm
	Spectrum	8～14μm
	NETD	≤40mK@F1.0,300K
	Focal length	50mm, 75mm, 100mm, 25～75mm, 20～120mm, 30～150mm, 30～180mm, 25～225mm, 20～240mm
	Focus type	Electric focus/Auto focus
	Digital zoom	1×/2×/4×/8×
	Pseudo-color	White Hot / Black Hot / Rainbow / Iron Red / Lava / Sky / Purple Orange / Gradient Red / Gradient Green / Gradient Blue
	Image process	Nonuniformity Correction/Digital Filter Noise Reduction/DDE
General	OSD	Date, time, longitude, latitude, altitude, speed, azimuth and pitch information (displaying and blanking superimposed characters)
	Encode	H.265/H.264
	Interface protocol	ONVIF/GB28181
	Communication interface	1×RS422/1×RJ45
	Power interface	DC24V, DC48V
	RH	<90%RH
	Protection grade	IP66
	Anti-salt-fog	PH value 6.5～7.2, continuous spraying for 48 hours, no surface change
	Operating temperature	-40℃～+55℃
	Storage temperature	-55℃～+65℃
	Consumption	Average power consumption ≤60W, ≤80W, ≤100W
	Weight	≤20Kg, ≤80Kg, ≤100Kg
	Dimension	Φ280mm × 420mm, Φ500mm × 800mm, Φ600mm × 1000mm,
	Laser Rangefinder	5km/10km/15km/20km Optional
	Laser lighting	500m/800m/1500m/2000m/3000m Optional

Start a free consultation with our engineer to discuss detailed and customization options.

Overview of Product

For airborne surveillance missions, the High-Precision Globe-Shaped Gyro Stabilization System delivers stabilized, high-resolution observation under high-speed flight conditions. Its lightweight yet robust spherical structure, combined with precision gyro control, enables smooth imaging during rapid maneuvering. The system supports flexible payload configurations, making it suitable for UAV-based reconnaissance, aerial patrol, and environmental assessment tasks.

Product Features

Stable long-range visual tracking of small aerial targets

Day/night drone detection with EO + thermal imaging

Precise target lock under platform motion and wind disturbance

Seamless integration with radar, RF, or C2 systems

Continuous 360° azimuth coverage for airspace monitoring

Typical Deployment Platforms

Fixed counter-UAS installations
Mobile ground vehicles
Naval vessels
Elevated towers and border outposts

Applications

Fishery Law Enforcement and Maritime Resource Protection

Deployed on fishery patrol vessels or coastal monitoring platforms, the system delivers stable, long-range visual or thermal imagery for continuous target tracking and identification. It enables effective detection of illegal fishing activities and improves evidence collection reliability in rough sea conditions.

Critical Infrastructure Perimeter Security

Ideal for power plants, ports, oil & gas facilities, pipelines, substations, and industrial parks, the system provides 24/7 wide-area surveillance with early intrusion detection capability, significantly enhancing the overall security level of high-value assets and sensitive sites.

Forest Fire Early Warning and Detection

When equipped with a thermal sensor, the system continuously monitors temperature anomalies and potential hotspots across large forested or grassland areas, enabling early-stage fire detection and rapid alarm generation to gain critical response time for emergency teams.

Mobile Surveillance and Emergency Command Vehicles & UAV and Airborne Reconnaissance

Mounted on emergency response vehicles, border patrol vehicles, or special mission trucks, the system maintains stable imaging while on the move, supporting real-time situational awareness, rapid scene assessment, and efficient on-site command operations. Integrated with drones or light aviation platforms, the gyro-stabilized system compensates for turbulence and platform movement, enabling clear aerial observation for missions such as border surveillance, search and rescue, power line inspection, and large-area reconnaissance.

Port, Harbor, and Vessel Security Monitoring

Installed on port observation towers or shipborne masts, the system provides continuous monitoring of waterways, docking areas, and surrounding waters, supporting early detection of suspicious vessels, unauthorized access, and abnormal maritime behavior.

Customization

Supporting fully customizable controls of every sensor, gimbal function and pan tilt size to your specifications. Click here to make a free enquiry
