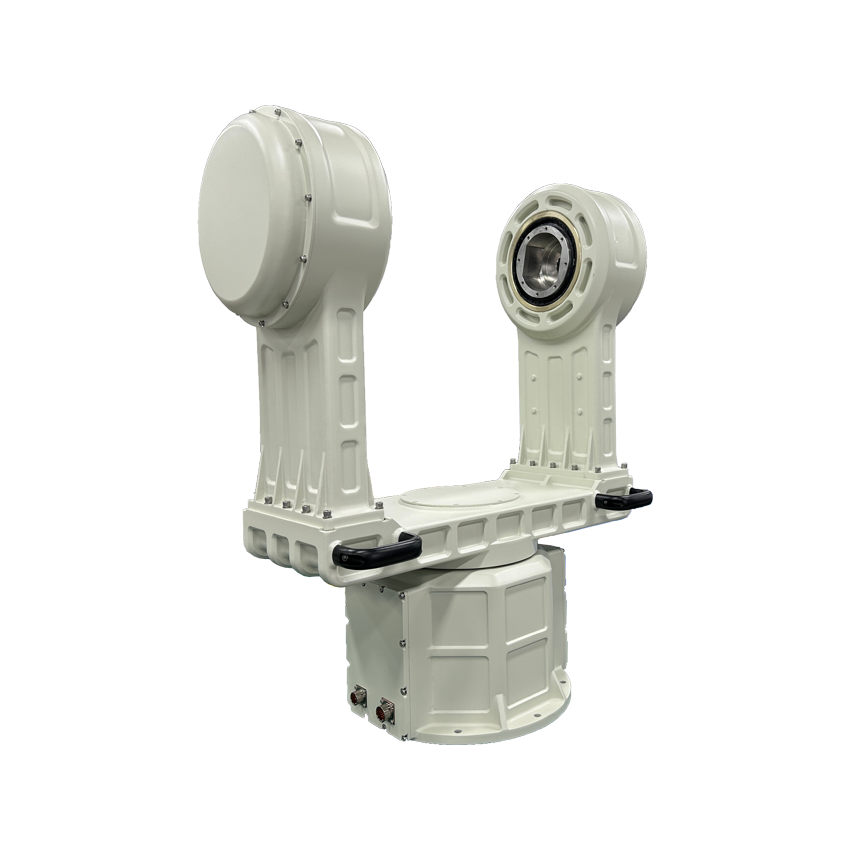

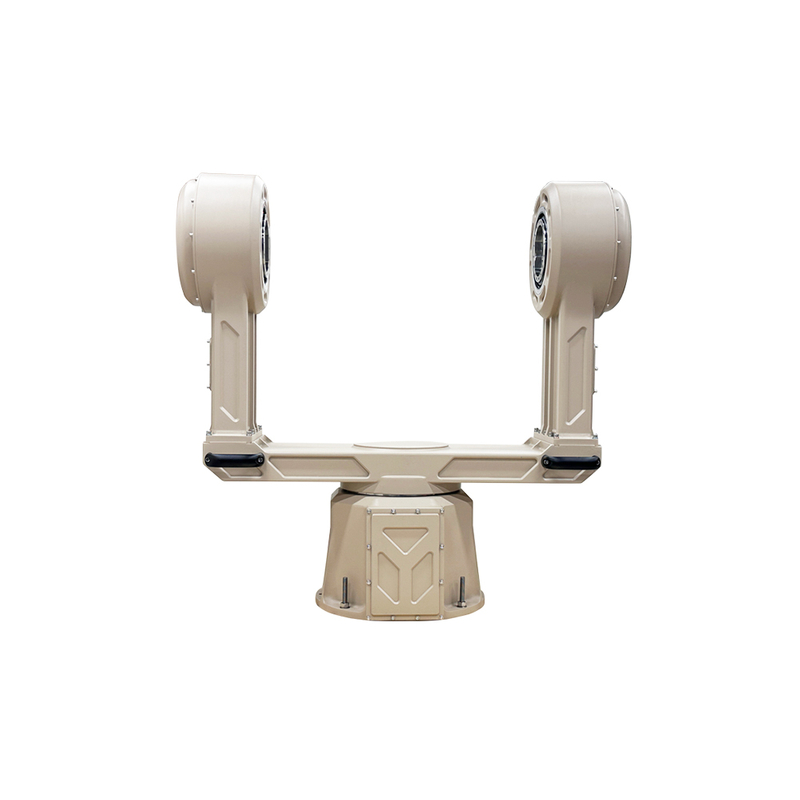

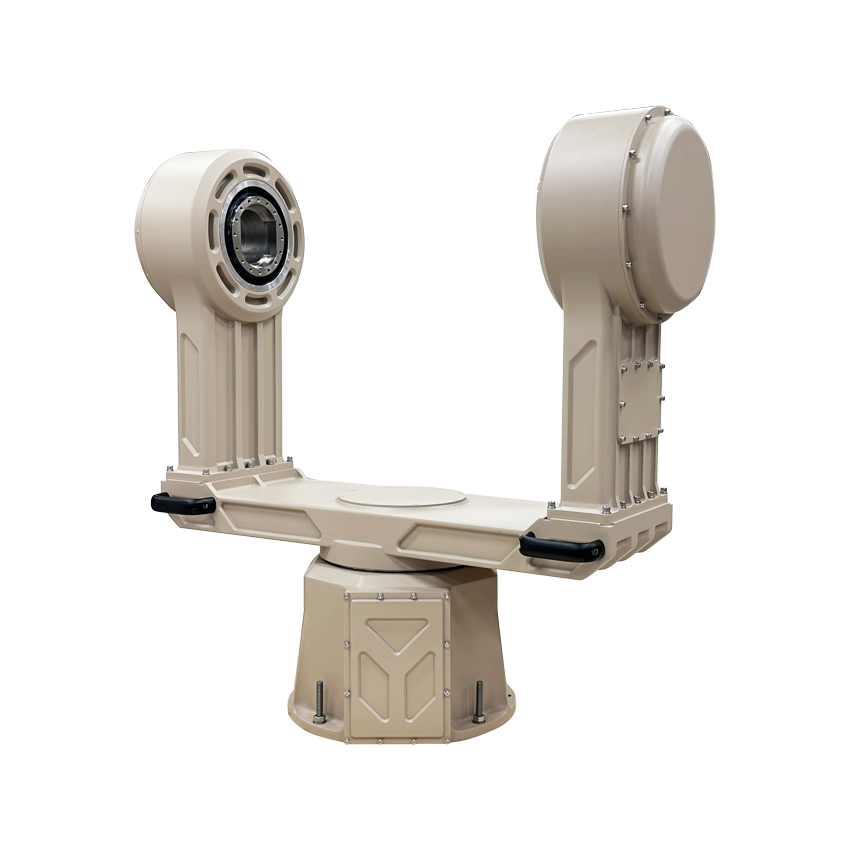

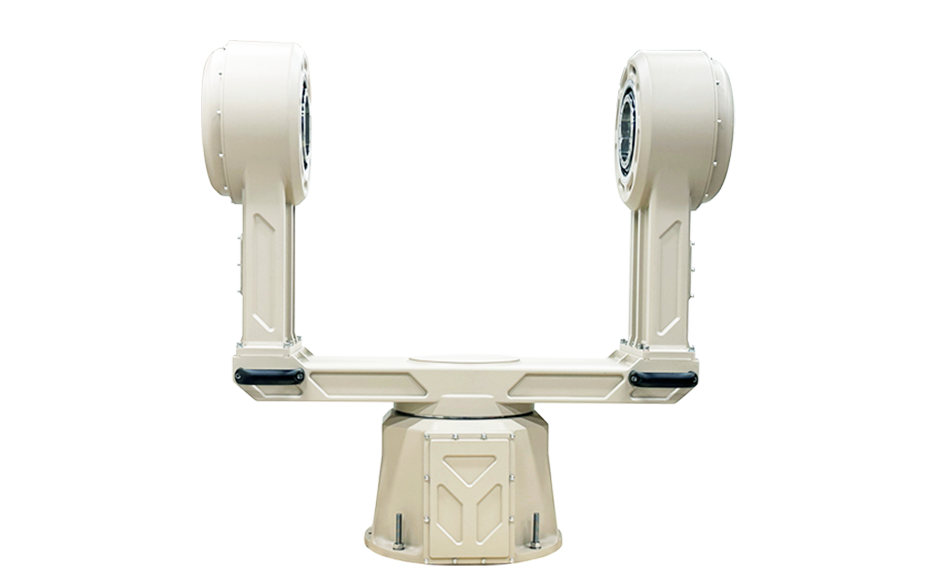

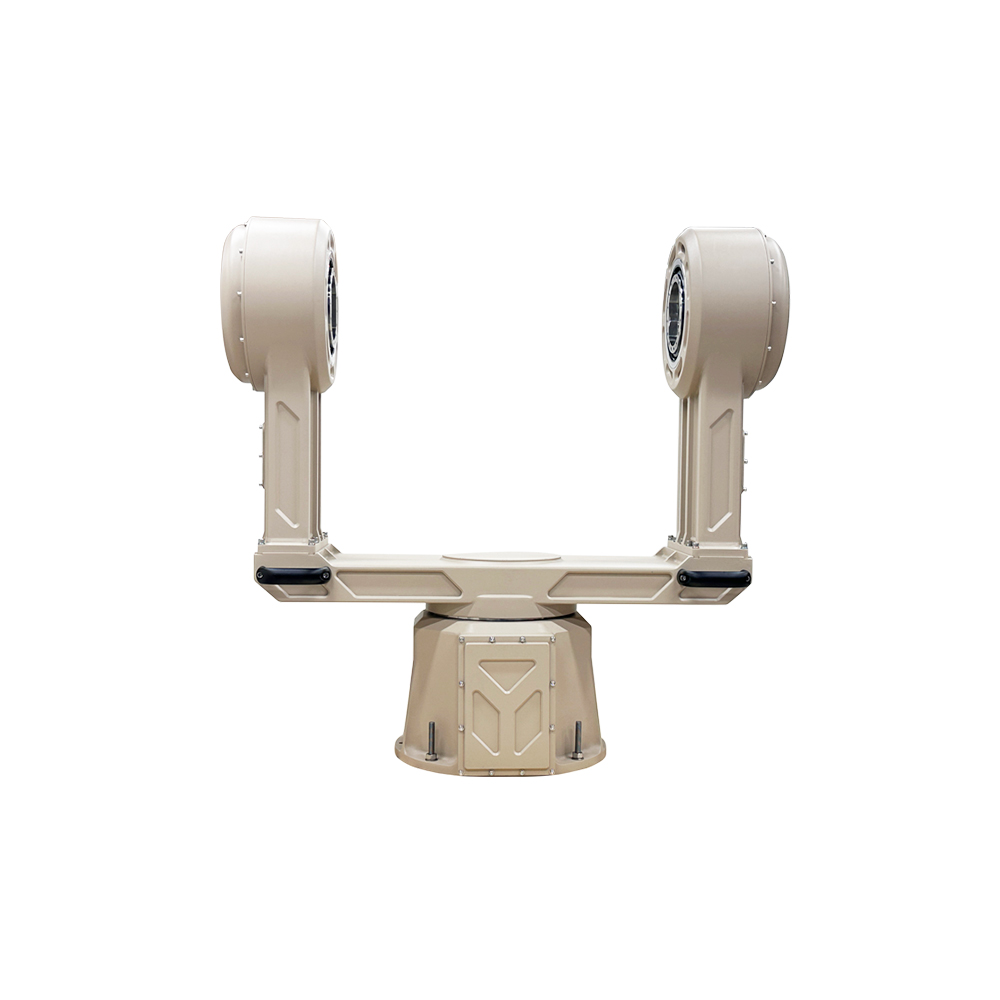

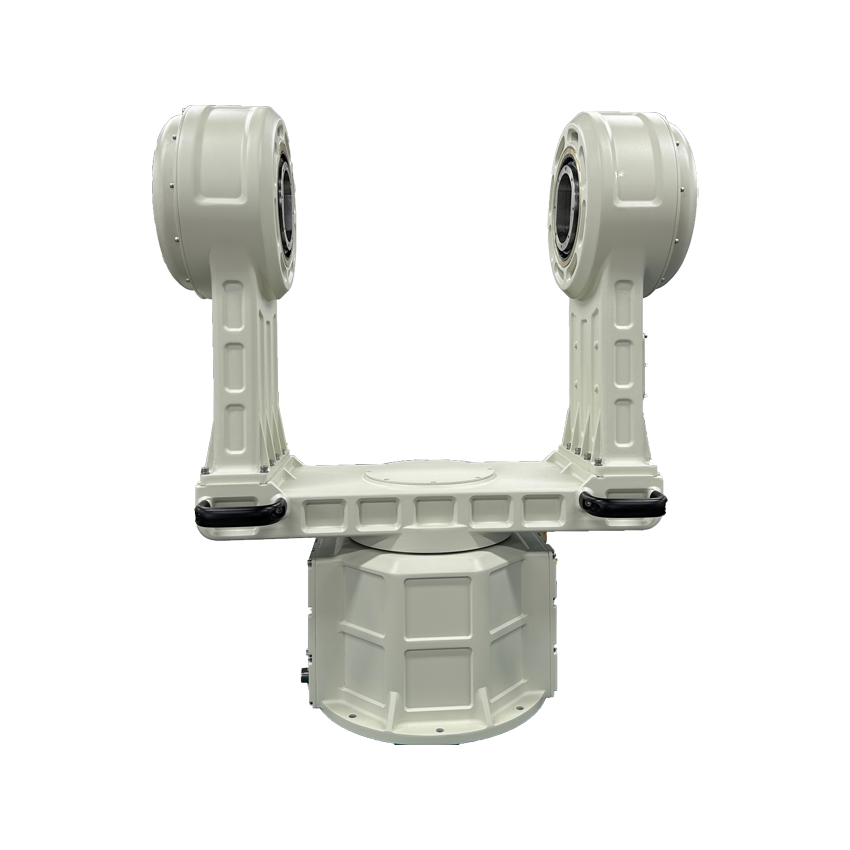

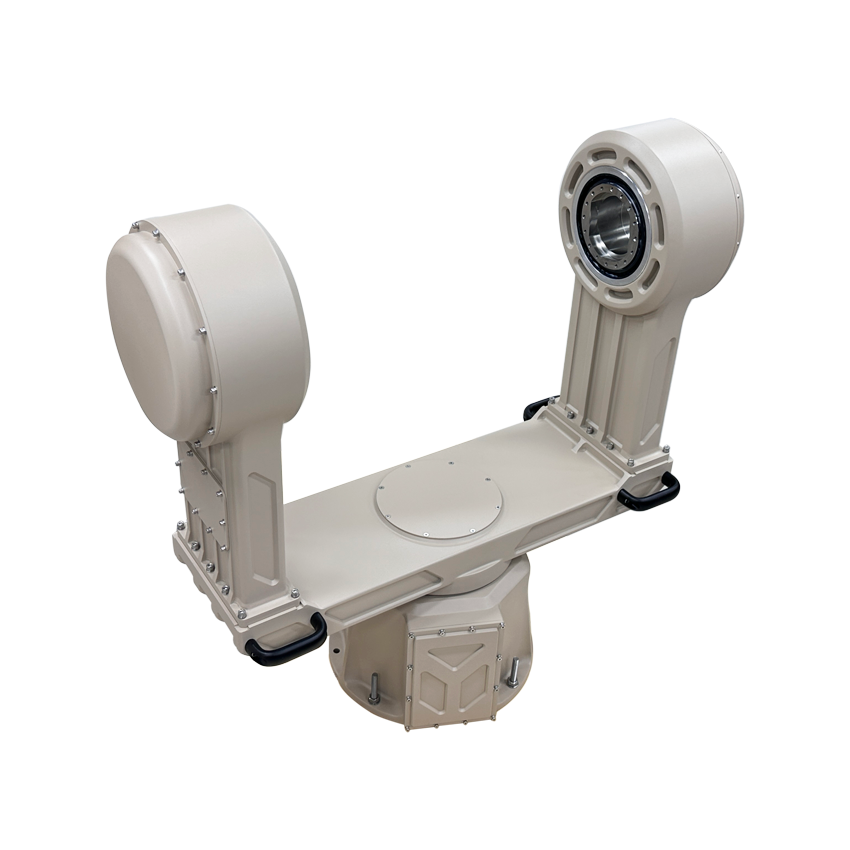

The U-Shaped Pan Tilt is an advanced electro-optical platform that integrates high-precision optical sensors (including HD visible-light cameras, infrared thermal imagers, and laser rangefinders) with a high-speed, servo-controlled rotational mechanism. Its signature U-shaped support structure delivers exceptional balance of rigidity, precision, and stability, enabling two-degree-of-freedom movement for rapid, accurate targeting and locking of spatial objects. Designed to excel in harsh environments, this pan tilt system serves as the core of modern high-end observation, tracking, and targeting solutions, catering to critical needs across military, security, and industrial sectors. Whether deployed in battlefield surveillance, urban security, or industrial monitoring, it provides reliable performance that meets the most demanding operational requirements.
The U-shaped framework forms a robust "cradle" for optical sensors, effectively suppressing inertial torques and vibrations during high-speed start-stop and turning movements. This stability ensures blur-free imaging even in dynamic scenarios, laying the foundation for precise data collection and target tracking. The structural design eliminates flexing, maintaining consistent performance under extreme operational stress.
Capable of carrying heavy, diverse electro-optical payloads such as multi-spectral sensor fusion systems, the pan tilt system boasts minimal shaft deflection thanks to its high-rigidity construction. It achieves microradian-level pointing and tracking accuracy, ensuring that even minute target movements are captured and followed with unparalleled precision. This capability makes it ideal for applications requiring exact target designation and long-range monitoring.
Equipped with high-performance servo controls, the system delivers exceptional angular velocities and accelerations, enabling rapid acquisition, locking, and tracking of high-speed maneuvering targets. Control command response delay is minimized, ensuring that operators can react swiftly to emerging threats or dynamic scenes. This responsiveness is critical for time-sensitive missions such as drone interception and real-time surveillance.
The U-shaped housing facilitates high-standard sealing, achieving IP67+ waterproof rating, anti-salt spray, anti-mold, anti-moisture, and dustproof capabilities. Many configurations offer explosion-proof certification, allowing reliable operation in extreme environments such as field operations, maritime settings, and industrial hazardous areas. It withstands temperature ranges from -40℃ to 70℃, ensuring year-round functionality in harsh climates.
Featuring a built-in slip ring assembly, the pan tilt system enables uninterrupted 360° rotation without cable wrap limitations. This eliminates monitoring blind spots, supporting continuous target tracking across full spatial coverage. Whether scanning large areas or following moving targets, it maintains seamless operation without manual intervention.
Deployed for 24/7 automated patrol, target recognition, early warning, and tracking in vast areas. Serves as an electro-optical mast or fire control system, providing target designation, range-finding, and battle damage assessment for weapons such as machine guns, artillery, and missiles. Integrates with IR/visible light sensors to detect, track, and identify drones, guiding jammers or lasers for soft/hard kill operations.
Installed on highways and key intersections for license plate recognition, traffic flow monitoring, violation capture (speeding, illegal parking), and accident evidence collection. Its rapid response and high precision ensure clear imaging of fast-moving vehicles, supporting efficient traffic management and law enforcement.
Provides wide-area surveillance for airports, ports, nuclear plants, and large squares. Supports facial recognition, abnormal behavior analysis, and real-time alerting, enhancing security in high-risk and crowded areas. The robust environmental design ensures reliable operation in urban environments with varying weather conditions.
Utilized for forest fire prevention via IR thermal imaging, wildlife monitoring, and anti-smuggling operations. Its all-weather capability penetrates smoke, fog, and haze, enabling early detection of forest fires and unauthorized activities in remote areas. The non-intrusive monitoring supports ecological conservation without disturbing natural habitats.
Yes, full customization is available. We tailor gimbal size, sensor integration, detector types, mounting options (side mount/top mount), and environmental protection features based on your specific needs (e.g., operating temperature, payload weight, and mission objectives).
Payload capacity varies by configuration, ranging from 5kg to 50kg depending on the model. We offer lightweight designs for portable applications and heavy-duty versions for industrial or military-grade sensors.
The system features a rugged, low-maintenance design with minimal moving parts. Routine maintenance primarily involves cleaning optical surfaces and inspecting sealing integrity, recommended every 6–12 months depending on operating environment harshness.
Yes, it supports seamless integration with most standard HD visible-light cameras, infrared thermal imagers, laser rangefinders, and multi-spectral sensors. We provide compatibility testing and interface customization to ensure optimal performance with your preferred equipment.
The system delivers ultra-fast response times, with command-to-movement delays as low as 10ms. This ensures real-time control and tracking of high-speed targets, critical for time-sensitive missions.
