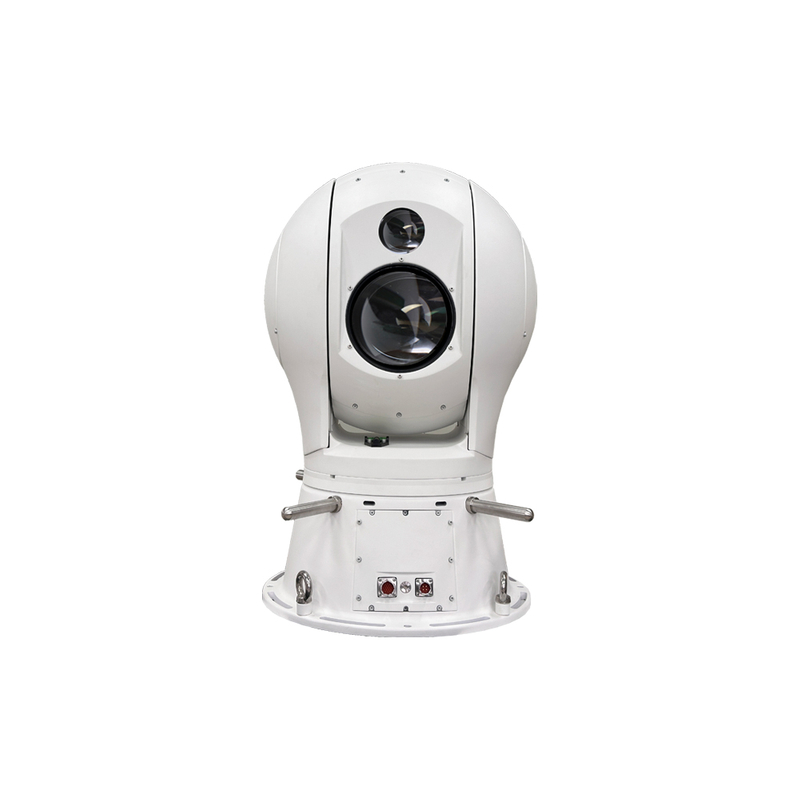

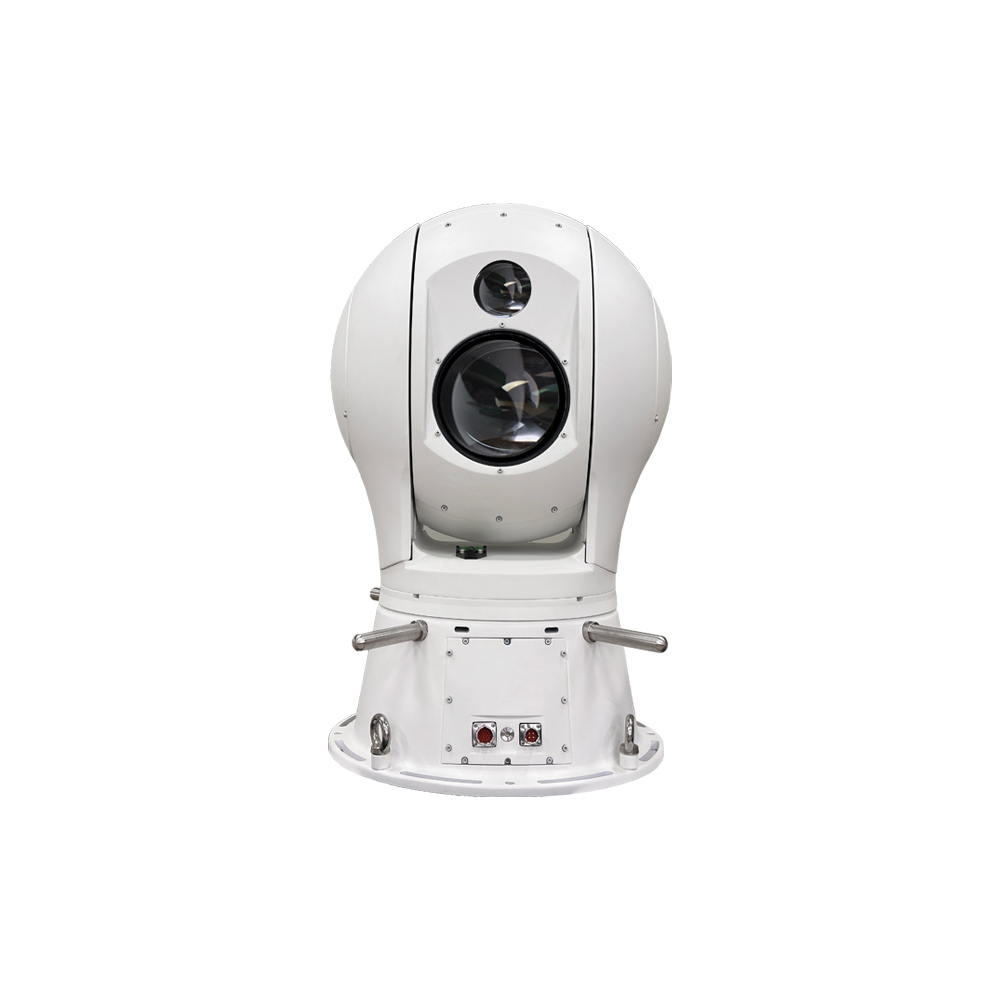

Airbone Mounted Ultra Long Range Multi Sensor Camera with Auto Tracking for Counter-UAS

The High-Precision Globe-Shaped Gyro Stabilization System serves as a stabilized EO/IR sensor node within counter-drone architectures. Its high-accuracy gyro stabilization ensures precise visual tracking of small, fast-moving aerial targets, even when mounted on mobile or vibrating platforms.

Integrated visible and thermal sensors enable reliable detection and confirmation of UAVs under varying lighting and weather conditions. When combined with radar or RF detection systems, the platform provides essential visual verification and target tracking for threat assessment and response coordination.


Availability:



Inquiry Add to Basket

Product Description

	Model	RYAN-GQLW20V8K-HT
Day Camera	Sensor type	1/1.8" Progressive Scan CMOS
	Pixel	200MP
	Frame rate	25/30Hz
	Minimum illumination	Color: 0.05 lux @ (F2.8, AGC ON)
	Resolution	1920(H) × 1080(V)
	Focal length	15mm～850mm
	Zoom speed	8.0s±0.5s (Wide-Tele)
	Optical/Digital zoom	57×/16×
	Iris	F2.8～F8.2
	HFOV	29.1°～0.5° (Wide-Tele)
	Minimum working distance	1m～10m (Wide-Tele)
	Focus	Auto/Manual/Semi-auto
Thermal Camera	Detector type	Uncooled Vanadium Oxide Microbolometer
	Resolution	640 × 512@12μm
	Spectrum	8～14μm
	NETD	≤40mK@F1.0,300K
	Focal length	20mm～200mm/F1.2
	FOV	21.7°×17.5°～2.2°×1.8°
	Focus	Auto/Manual
	Digital zoom	1×/2×/4×/8×
	Frame rate	25Hz
	Pseudo	White Hot / Black Hot / Rainbow / Iron Red / Lava / Sky / Purple Orange / Gradient Red / Gradient Green / Gradient Blue
	Image process	Non-uniformity Correction/Digital Filter Noise Reduction/DDE
Pan-Tilt	Platform	2-axis
	Stable accuracy	≤0.5mrad
	Pan speed	0.01°～80°/s
	Tilt speed	0.01°～80°/s
	Pan accelerate speed	≥80°/s²
	Tilt accelerate speed	≥80°/s²
	Repeat positioning accuracy	±0.01°
	Preset	Max 256
	Pan/ Tilt	360° rotating continuously / -75°～+75°
	Motor drive type	Direct Drive
	Patrol scanning	8 patrols, up to 32 presets for each patrol
Target recognition and tracking	Target detection category	Supports people, cars, ships, aircraft, etc.
	Number of target detections	Supports multi-target detection
	Target detection area	Configurable rectangle
	Target size	Minimum 2 × 2 pixels, maximum 200 × 100 pixels
	Target detection algorithm	Grayscale detection, motion detection, contour detection light
	Target tracking algorithm	Phase correlation, centroid, color matching
	Target tracking target size	Minimum 2 × 2 pixels, maximum 200 × 100 pixels
	Target tracking accuracy	0.15mrad
General	Encode	H.265/H.264
	Interface protocols	ONVIF, НТТР, TCP/IP, UDP, RTP, RTSP, RTCP, DNS, DDNS, DHCP, FTP, NTP, PPPOE, SMTP, UPNP;
	Communication	1×RJ45/1×RS422/2×SDI
	Power	DC48V
	RH	<95%RH
	Protection grade	IP66
	Anti-salt-fog	PH value 6.5～7.2, continuous spraying for 48 hours, no surface change
	Operation temp	-40℃～+55℃
	Storage temp	-55℃～+65℃
	Consumption	≤75W Static / ≤300W Peak
	Weight	≤85Kg
	Dimension	Φ500mm × 795mm

Start a free consultation with our engineer to discuss detailed and customization options.

Overview of Product

The High-Precision Globe-Shaped Gyro Stabilization System is an advanced electro-optical observation platform engineered for long-range, all-weather surveillance in highly dynamic environments. Featuring a compact spherical architecture with continuous 360° rotation, the system delivers uninterrupted situational awareness across air, sea, and land domains. Equipped with high-precision multi-axis gyro stabilization, the system effectively compensates for platform motion caused by vibration, wind, wave impact, or high-speed maneuvering, ensuring consistently stable and clear imagery during long-distance observation and target tracking.

Product Features

360° continuous coverage with spherical gimbal design

High-precision gyro stabilization for long-range imaging

Modular EO / IR / LRF sensor integration

All-weather, day-night operational capability

Compatible with fixed, mobile, and maritime platforms

Applications

Fishery Law Enforcement and Maritime Resource Protection

Deployed on fishery patrol vessels or coastal monitoring platforms, the system delivers stable, long-range visual or thermal imagery for continuous target tracking and identification. It enables effective detection of illegal fishing activities and improves evidence collection reliability in rough sea conditions.

Critical Infrastructure Perimeter Security

Ideal for power plants, ports, oil & gas facilities, pipelines, substations, and industrial parks, the system provides 24/7 wide-area surveillance with early intrusion detection capability, significantly enhancing the overall security level of high-value assets and sensitive sites.

Forest Fire Early Warning and Detection

When equipped with a thermal sensor, the system continuously monitors temperature anomalies and potential hotspots across large forested or grassland areas, enabling early-stage fire detection and rapid alarm generation to gain critical response time for emergency teams.

Mobile Surveillance and Emergency Command Vehicles & UAV and Airborne Reconnaissance

Mounted on emergency response vehicles, border patrol vehicles, or special mission trucks, the system maintains stable imaging while on the move, supporting real-time situational awareness, rapid scene assessment, and efficient on-site command operations. Integrated with drones or light aviation platforms, the gyro-stabilized system compensates for turbulence and platform movement, enabling clear aerial observation for missions such as border surveillance, search and rescue, power line inspection, and large-area reconnaissance.

Port, Harbor, and Vessel Security Monitoring

Installed on port observation towers or shipborne masts, the system provides continuous monitoring of waterways, docking areas, and surrounding waters, supporting early detection of suspicious vessels, unauthorized access, and abnormal maritime behavior.

Customization

Supporting fully customizable controls of every sensor, gimbal function and pan tilt size to your specifications. Click here to make a free enquiry
