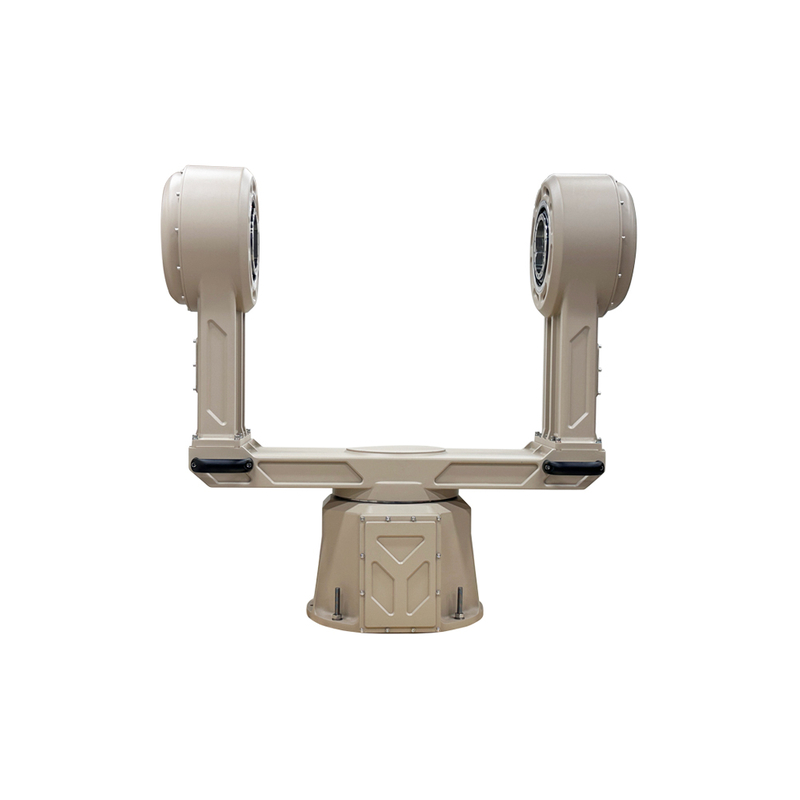

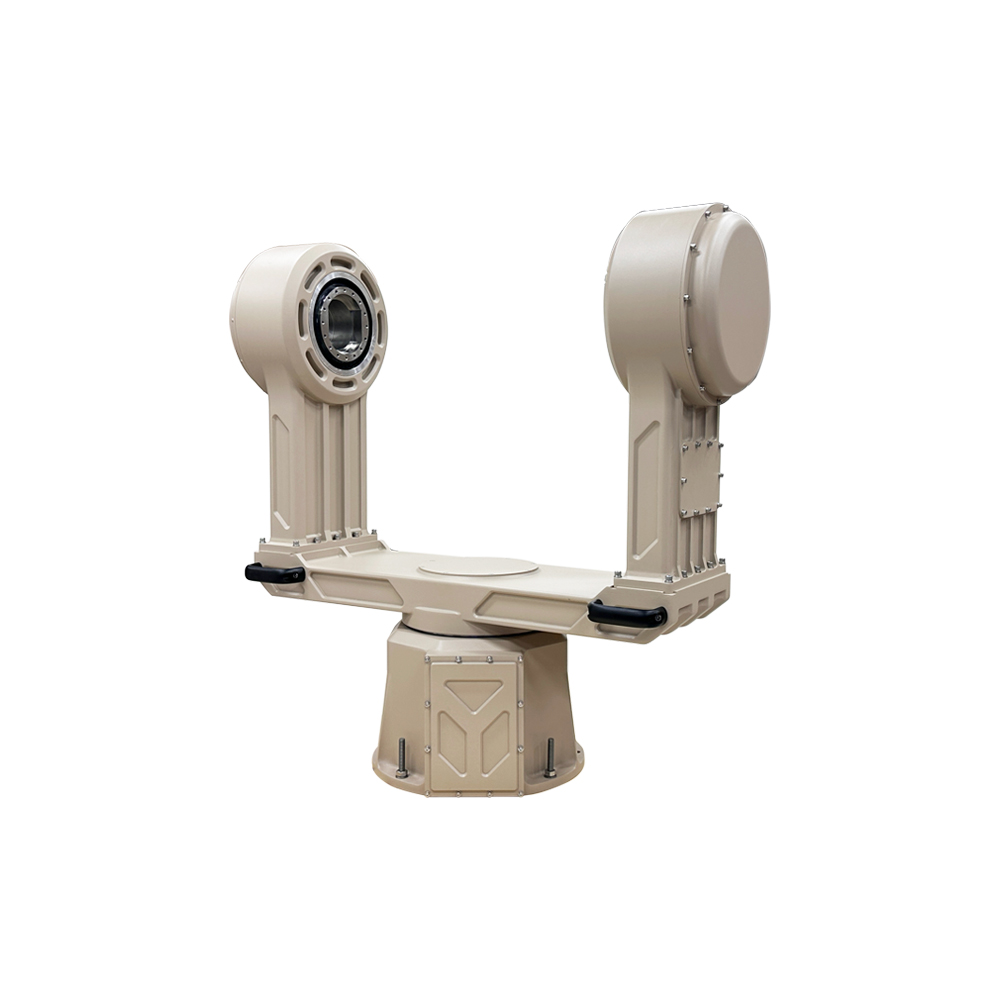

Dual-axis Heavy-Duty Multi-Payload U-Shaped Pan Tilt

The Heavy-Duty U-Shaped Pan Tilt System is a professional long-range surveillance platform designed for advanced electro-optical applications. Its rigid U-frame structure provides superior load capacity and stability, enabling integration of long-range thermal cameras, HD optical zoom cameras, laser rangefinders, and multi-sensor detection systems. With 360-degree continuous rotation and precision elevation control, the platform ensures accurate target positioning and smooth tracking performance for mission-critical operations.
Availability:
Inquiry Add to Basket


Overview of Product


Optimized for high-performance EO/IR imaging systems, the U-Shaped Pan Tilt Platform delivers outstanding pointing accuracy, structural durability, and environmental resistance. The platform serves as the foundation of many long-range surveillance, drone detection, and security monitoring systems used worldwide.



Product Features


High-rigidity mechanical frame ensures stable sensor operation.

Advanced servo control provides precise tracking performance.

Compatible with long-range electro-optical payloads.

Supports continuous 360° panoramic scanning.

Designed for reliable operation in harsh weather environments.



Applications


Long-range border surveillance

Anti-drone security systems

Maritime observation platforms

Highway monitoring systems

Critical infrastructure protection



Customization Options

Supporting fully customizable controls of every sensor, gimbal function and pan tilt size/ color/ load to your specifications.

Click here to make an inquiry


U-shaped Pan Tilt Dual-Axis Rotation Stage U-shaped turntable Electro Optical Pantilt System precision positioner 360° Continuous Rotation pan tilt unit long range PTZ camera Heavy-Duty Multi-Payload
