Gyro-stabilization | Platform | 2-axis |
Stable accuracy | ≤0.2mrad (RMS) | |
Pan | 360° continuously | |
Tilt | -90°～+90° | |
Pan speed | ≥100°/s | |
Tilt speed | ≥80°/s | |
Pan Accelerate speed | ≥100°/s2 | |
Tilt Accelerate speed | ≥80°/s2 | |
Repeat positioning accuracy | ±0.01°, ±0.003° | |
Day Camera | Sensor type | 1/1.8 '' Progressive Scan CMOS |
Pixels | 200Mp, 400Mp | |
Resolution | 1920(H) × 1080(V), 2560(H) × 1440(V) | |
Focal length | 10～550mm, 15～850mm, 11.3～1000mm, 15～120mm | |
Focus | Auto/Manual/Semi-auto | |
Minimum illumination | Color : 0.0005Lux/F1.4/AGC ON; Black and White : 0.0001Lux/F1.4/AGC ON | |
Optical fog penetration | Support | |
Thermal Camera | Detector type | Uncooled Vanadium Oxide Microbolometer |
Resolution | 640 × 512@17μm, 1280 × 1024@12μm | |
Spectrum | 8～14μm | |
NETD | ≤40mK@F1.0,300K | |
Focal length | 20～120mm, 30～150mm, 30～180mm, 25～225mm, 20～240mm, 30～300mm | |
Focus type | Electric focus/Auto focus | |
Digital zoom | 1×/2×/4×/8× | |
Pseudo-color | White Hot / Black Hot / Rainbow / Iron Red / Lava / Sky / Purple Orange / Gradient Red / Gradient Green / Gradient Blue | |
Image process | Nonuniformity Correction/Digital Filter Noise Reduction/DDE | |
General | OSD | Date, time, longitude, latitude, altitude, speed, azimuth and pitch information (displaying and blanking superimposed characters) |
Encode | H.265/H.264 | |
Interface protocol | ONVIF/GB28181 | |
Communication interface | 1×RS422/1×RJ45 | |
Power interface | DC24V, DC48V | |
RH | <90%RH | |
Protection grade | IP66 | |
Anti-salt-fog | PH value 6.5～7.2, continuous spraying for 48 hours, no surface change | |
Operating temperature | -40℃～+55℃ | |
Storage temperature | -55℃～+65℃ | |
Consumption | Average power consumption ≤80W, ≤100W | |
Weight | ≤50Kg, ≤100Kg | |
Dimension | 400mm × 600mm × 650mm, 920mm × 650mm × 930mm | |
Laser Rangefinder | 5km/10km/15km/20km Optional | |
Laser lighting | 500m/800m/1500m/2000m/3000m Optional |
Start a free consultation with our engineer to discuss detailed and customization options.

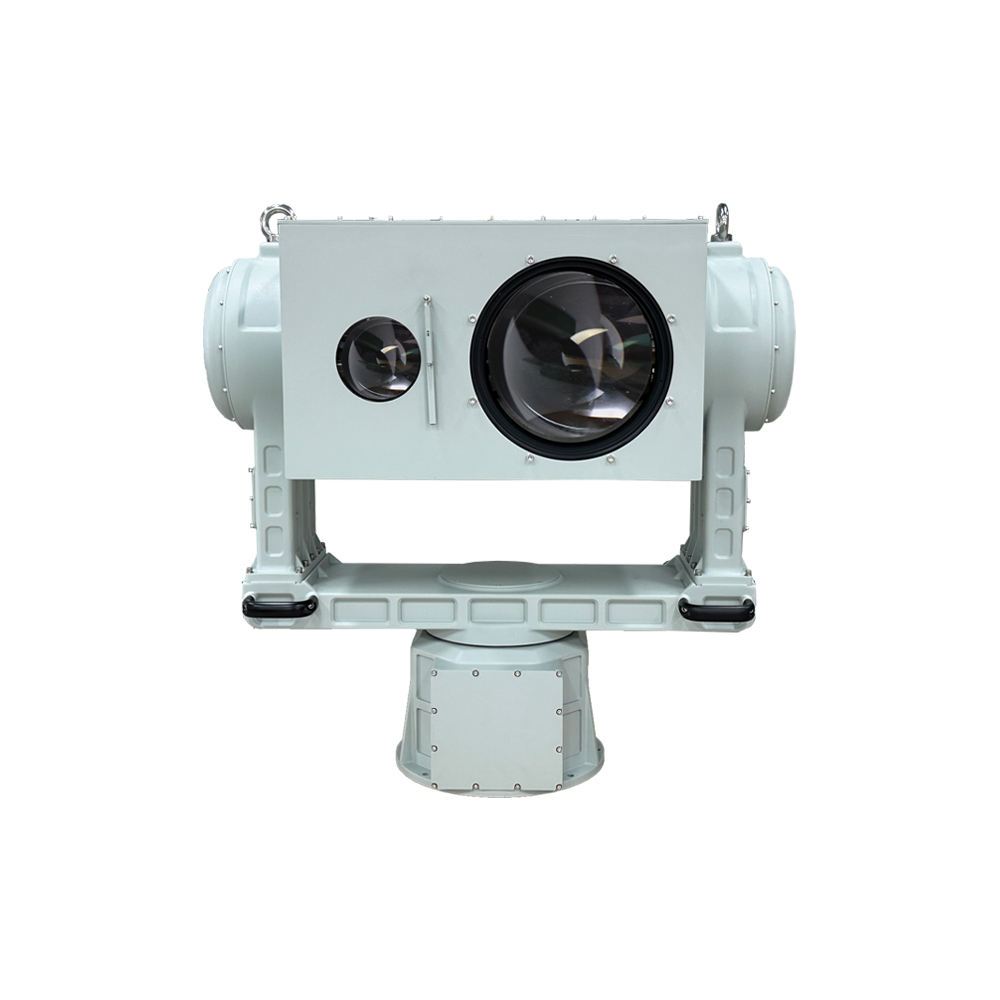

The U-Shaped Dual-Axis Stabilized EO/IR Platform is designed for mission-critical ISR operations requiring high-mass payload integration and optical precision. Dual-axis inertial stabilization maintains line-of-sight accuracy under dynamic maritime or mobile deployment conditions, making the system suitable for border security, naval ISR, counter-UAS, and tactical reconnaissance.
Built for heavy payloads and uncompromising missions, the High-Precision U-Shaped Gyro Stabilization System delivers superior stability where it matters most. Its open U-frame architecture enables unrestricted integration of long-range optics, multi-sensor payloads, and laser systems—making it ideal for complex, high-demand deployments. Advanced dual-axis stabilization preserves image clarity during rapid maneuvers, strong winds, and turbulent sea conditions.
From maritime surveillance and military reconnaissance to counter-UAV operations and critical infrastructure protection, this platform ensures stable targeting, real-time monitoring, and mission-ready performance in the world’s most challenging environments.
Open U-configuration mechanical architecture supporting large-aperture optics and multi-sensor payload suites
Precision dual-axis inertial stabilization maintaining line-of-sight integrity during dynamic deployment
Long-range visible imaging with focal lengths up to 1000mm for extended identification capability
Starlight-level sensitivity with integrated fog penetration optics
LWIR 8–14μm uncooled VOx detector with NETD ≤40mK for enhanced target discrimination
1280×1024 high-definition thermal resolution option for improved classification accuracy
Multi-stage digital zoom (1×–8×) with real-time image enhancement algorithms
Military-grade structural reliability and environmental durability
Deployed on patrol vessels, enforcement ships, and coastal defense platforms, the system provides 24/7 monitoring and evidence collection for ports, waterways, and offshore zones. It excels in anti-smuggling, intrusion detection, and law enforcement missions, maintaining stable imagery even at high speeds or in rough seas. For marine defense, it supports long-range target recognition and tactical command on shipborne, vehicle-mounted, or fixed posts.
Integrated into large UAVs, helicopters, or fixed-wing aircraft, it enables long-duration aerial surveillance and ground target tracking. It is particularly effective for cross-regional patrols, disaster monitoring, and battlefield surveillance, enhancing aerial intelligence gathering. Additionally, it can carry counter-UAV jammers or laser interceptors to protect airports and military bases from low-altitude drone threats.
In energy exploration and industrial inspection, the system monitors offshore drilling rigs, oil & gas pipelines, and wind farms using integrated visible and thermal sensors. It detects hazards in real time, reducing operational risks. For critical infrastructure like sea-crossing bridges and ports, it ensures round-the-clock protection by identifying suspicious vessels or potential threats.
The system is engineered to support heavy electro-optical payloads, including long-range cameras, infrared imagers, and laser systems. Specific payload limits vary by configuration, but it is optimized for high-weight equipment required in complex missions.
Yes, its open architecture and standardized interfaces (ONVIF/GB28181 protocol support) enable seamless integration with most third-party video processing units, consoles, UAVs, and ground vehicles.
Absolutely. With military-grade protection (IP66 rating, salt-fog resistance) and an operating temperature range of -40℃ to +55℃, it performs reliably in harsh environments like heavy rain, strong winds, and high humidity.
