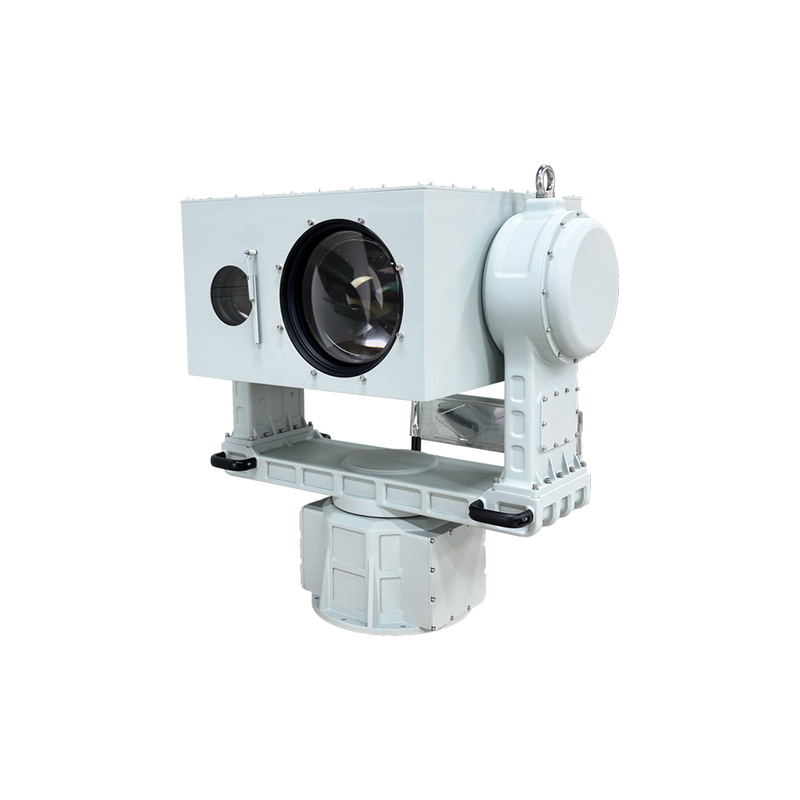

20Km Vehicle-Mounted Long Range Thermal Imaging Camera for Security Suvellience LRF Border Security

20Km Vehicle-Mounted Long Range Thermal Imaging Camera for Security Suvellience LRF Border Security

Its 1/1.8" CMOS visible camera delivers ultra-clear imagery with exceptional low-light performance, while the VOx thermal module enables accurate temperature anomaly detection within the 8–14μm spectrum.

Multiple lens configurations (20–300mm thermal, up to 1000mm visible) allow system customization for refineries, oil & gas facilities, mining operations, and large-scale infrastructure inspection. Stable dual-axis gyro control ensures reliable imaging even when installed on moving platforms such as inspection vehicles or offshore structures.


Availability:



Inquiry Add to Basket Download

Product Description

Gyro stabilization	Platform	2-axis
	Stable accuracy	≤0.2mrad (RMS)
	Pan	360° continuously
	Tilt	-90°～+90°
	Pan speed	≥100°/s
	Tilt speed	≥80°/s
	Pan Accelerate speed	≥100°/s²
	Tilt Accelerate speed	≥80°/s²
	Repeat positioning accuracy	±0.01°, ±0.003°
Day Camera	Sensor type	1/1.8 '' Progressive Scan CMOS
	Pixels	200Mp, 400Mp
	Resolution	1920(H) × 1080(V), 2560(H) × 1440(V)
	Focal length	10～550mm, 15～850mm, 11.3～1000mm, 15～120mm
	Focus	Auto/Manual/Semi-auto
	Minimum illumination	Color : 0.0005Lux/F1.4/AGC ON; Black and White : 0.0001Lux/F1.4/AGC ON
	Optical fog penetration	Support
Thermal Camera	Detector type	Uncooled Vanadium Oxide Microbolometer
	Resolution	640 × 512@17μm, 1280 × 1024@12μm
	Spectrum	8～14μm
	NETD	≤40mK@F1.0,300K
	Focal length	20～120mm, 30～150mm, 30～180mm, 25～225mm, 20～240mm, 30～300mm
	Focus type	Electric focus/Auto focus
	Digital zoom	1×/2×/4×/8×
	Pseudo-color	White Hot / Black Hot / Rainbow / Iron Red / Lava / Sky / Purple Orange / Gradient Red / Gradient Green / Gradient Blue
	Image process	Nonuniformity Correction/Digital Filter Noise Reduction/DDE
General	OSD	Date, time, longitude, latitude, altitude, speed, azimuth and pitch information (displaying and blanking superimposed characters)
	Encode	H.265/H.264
	Interface protocol	ONVIF/GB28181
	Communication interface	1×RS422/1×RJ45
	Power interface	DC24V, DC48V
	RH	<90%RH
	Protection grade	IP66
	Anti-salt-fog	PH value 6.5～7.2, continuous spraying for 48 hours, no surface change
	Operating temperature	-40℃～+55℃
	Storage temperature	-55℃～+65℃
	Consumption	Average power consumption ≤80W, ≤100W
	Weight	≤50Kg, ≤100Kg
	Dimension	400mm × 600mm × 650mm, 920mm × 650mm × 930mm
	Laser Rangefinder	5km/10km/15km/20km Optional
	Laser lighting	500m/800m/1500m/2000m/3000m Optional

Start a free consultation with our engineer to discuss detailed and customization options.

Overview of Product

The U-Shaped Stabilized Imaging Platform provides high-precision visual and thermal monitoring for industrial environments. Its 1/1.8" CMOS visible camera delivers ultra-clear imagery with exceptional low-light performance, while the VOx thermal module enables accurate temperature anomaly detection within the 8–14μm spectrum. Multiple lens configurations (20–300mm thermal, up to 1000mm visible) allow system customization for refineries, oil & gas facilities, mining operations, and large-scale infrastructure inspection.

The visible camera supports focal lengths up to 1000mm with optical fog penetration, ensuring reliable observation across sea haze and variable lighting conditions. The thermal module, available in 640×512 or 1280×1024 resolution, delivers precise heat signature detection even in complete darkness. Stable dual-axis gyro control ensures reliable imaging even when installed on moving platforms such as inspection vehicles or offshore structures.

Product Features

Flexible integration of visible and thermal modules for inspection tasks
High-resolution CMOS imaging for structural and equipment assessment
Thermal imaging for anomaly detection and temperature differential monitoring
Electric/auto focus mechanisms for precise long-distance inspections
Wide focal length selection for facility-scale coverage
Image processing algorithms ensuring stable performance in dusty or high-heat environments
Reliable dual-axis stabilization for mobile or offshore installations
Customizable system configuration for oil & gas, mining, and infrastructure applications

Applications

Maritime Surveillance & Coastal Security

Military Reconnaissance & Tactical ISR

Industrial & Infrastructure Protection

Counter-UAV / Counter-Drone Operations

Airborne Observation Platforms

Border & Perimeter Monitoring

Search and Rescue (SAR)

FAQ

What is the maximum payload capacity of the U-shaped gyro stabilization system?

The system is engineered to support heavy electro-optical payloads, including long-range cameras, infrared imagers, and laser systems. Specific payload limits vary by configuration, but it is optimized for high-weight equipment required in complex missions.

Is the system compatible with third-party sensors and platforms?

Yes, its open architecture and standardized interfaces (ONVIF/GB28181 protocol support) enable seamless integration with most third-party video processing units, consoles, UAVs, and ground vehicles.

Can the system operate in extreme weather conditions?

Absolutely. With military-grade protection (IP66 rating, salt-fog resistance) and an operating temperature range of -40℃ to +55℃, it performs reliably in harsh environments like heavy rain, strong winds, and high humidity.
