Gyro-stabilization | Platform | 2-axis |
Stable accuracy | ≤0.2mrad (RMS) | |
Pan | 360° continuously | |
Tilt | -90°～+90° | |
Pan speed | ≥100°/s | |
Tilt speed | ≥80°/s | |
Pan Accelerate speed | ≥100°/s2 | |
Tilt Accelerate speed | ≥80°/s2 | |
Repeat positioning accuracy | ±0.01°, ±0.003° | |
Day Camera | Sensor type | 1/1.8 '' Progressive Scan CMOS |
Pixels | 2Mp, 4Mp | |
Resolution | 1920(H) × 1080(V), 2560(H) × 1440(V) | |
Focal length | 5.5mm～180mm, 6.5mm～240mm, 6.1mm～317mm, 10～550mm, 15～850mm | |
Focus | Auto/Manual/Semi-auto | |
Minimum illumination | Color : 0.0005Lux/F1.4/AGC ON; Black and White : 0.0001Lux/F1.4/AGC ON | |
Optical fog penetration | Support | |
Thermal Camera | Detector type | Uncooled Vanadium Oxide Microbolometer |
Resolution | 640 × 512@17μm, 1280 × 1024@12μm | |
Spectrum | 8～14μm | |
NETD | ≤40mK@F1.0,300K | |
Focal length | 50mm, 75mm, 100mm, 25～75mm, 20～120mm, 30～150mm, 30～180mm, 25～225mm, 20～240mm | |
Focus type | Electric focus/Auto focus | |
Digital zoom | 1×/2×/4×/8× | |
Pseudo-color | White Hot / Black Hot / Rainbow / Iron Red / Lava / Sky / Purple Orange / Gradient Red / Gradient Green / Gradient Blue | |
Image process | Nonuniformity Correction/Digital Filter Noise Reduction/DDE | |
General | OSD | Date, time, longitude, latitude, altitude, speed, azimuth and pitch information (displaying and blanking superimposed characters) |
Encode | H.265/H.264 | |
Interface protocol | ONVIF/GB28181 | |
Communication interface | 1×RS422/1×RJ45 | |
Power interface | DC24V, DC48V | |
RH | <90%RH | |
Protection grade | IP66 | |
Anti-salt-fog | PH value 6.5～7.2, continuous spraying for 48 hours, no surface change | |
Operating temperature | -40℃～+55℃ | |
Storage temperature | -55℃～+65℃ | |
Consumption | Average power consumption ≤60W, ≤80W, ≤100W | |
Weight | ≤20Kg, ≤80Kg, ≤100Kg | |
Dimension | Φ280mm × 420mm, Φ500mm × 800mm, Φ600mm × 1000mm, | |
Laser Rangefinder | 5km/10km/15km/20km Optional | |
Laser lighting | 500m/800m/1500m/2000m/3000m Optional |
Start a free consultation with our engineer to discuss detailed and customization options.

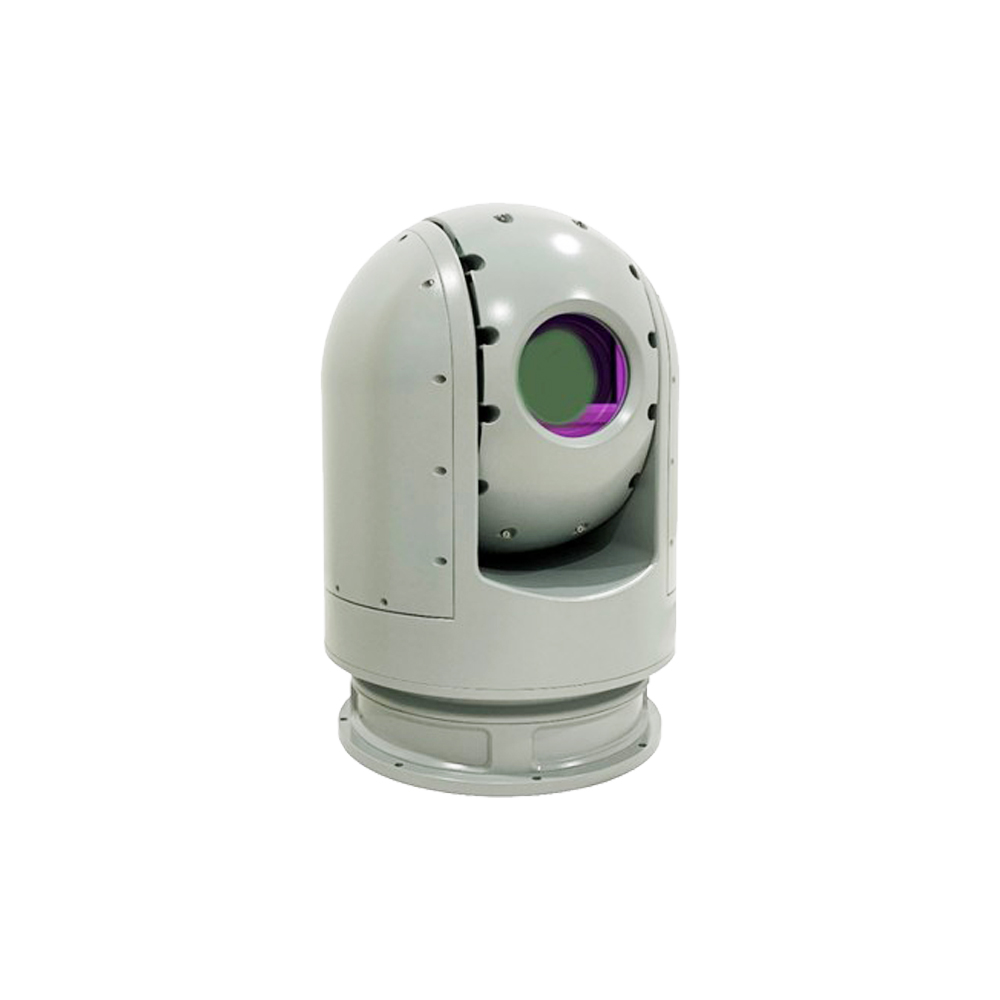

Based on the globe-shaped gyro stabilization platform, we have developed an enhanced all-weather single-sensor imaging system. This system integrates a high-resolution thermal imager or a daylight camera and is housed in a rugged IP66-rated enclosure, ensuring reliable operation in harsh, dusty, or wet environments. Its advanced gyro-stabilization core delivers exceptionally clear and steady video output even during high-speed motion or in complex conditions. The spherical design allows for full 360-degree rotation and wide-area coverage, making it ideal for specialized monitoring applications such as fishery security surveillance, perimeter protection of critical infrastructure, and fire warning & detection missions. With its robust vibration resistance, proven reliability, and flexible mounting options for aerial, maritime, and ground vehicles, this system provides continuous, all-directional intelligence and monitoring support for safeguarding assets, detecting intrusions, and enabling early hazard response.
Equipped with multi-axis gyroscopes and high-speed servo control algorithms, the system actively compensates for vibration, shocks, and platform movement in real time, delivering exceptionally clear and stable video output even during high-speed motion or in harsh operational conditions.
The system supports integration of either a high-resolution daylight camera or a high-sensitivity thermal imager, enabling reliable all-weather imaging performance for continuous day/night surveillance and long-range target detection.
The globe-shaped stabilized structure enables continuous 360° azimuth rotation and wide tilt-angle coverage, eliminating blind zones and providing full-area situational awareness.
Reinforced mechanical structure combined with advanced stabilization algorithms allows stable performance when installed on high-speed moving platforms such as UAVs, patrol boats, and ground vehicles, maintaining image clarity even under severe vibration conditions. Housed in an IP66-rated enclosure, the system offers excellent protection against dust, heavy rain, salt fog, moisture, and corrosion, ensuring reliable long-term operation in marine, desert, high-humidity, and other extreme outdoor environments.
Designed for seamless integration with aerial, maritime, and ground platforms, it supports mast mounting, vehicle mounting, and fixed-site installation, and can be easily connected with radar systems, command-and-control platforms, and third-party security software. Built with industrial-grade components and a modular design, the system supports long-duration continuous operation, requires minimal maintenance, and is ideal for unattended, mission-critical surveillance tasks.
Deployed on fishery patrol vessels or coastal monitoring platforms, the system delivers stable, long-range visual or thermal imagery for continuous target tracking and identification. It enables effective detection of illegal fishing activities and improves evidence collection reliability in rough sea conditions.
Ideal for power plants, ports, oil & gas facilities, pipelines, substations, and industrial parks, the system provides 24/7 wide-area surveillance with early intrusion detection capability, significantly enhancing the overall security level of high-value assets and sensitive sites.
When equipped with a thermal sensor, the system continuously monitors temperature anomalies and potential hotspots across large forested or grassland areas, enabling early-stage fire detection and rapid alarm generation to gain critical response time for emergency teams.
Mounted on emergency response vehicles, border patrol vehicles, or special mission trucks, the system maintains stable imaging while on the move, supporting real-time situational awareness, rapid scene assessment, and efficient on-site command operations. Integrated with drones or light aviation platforms, the gyro-stabilized system compensates for turbulence and platform movement, enabling clear aerial observation for missions such as border surveillance, search and rescue, power line inspection, and large-area reconnaissance.
Installed on port observation towers or shipborne masts, the system provides continuous monitoring of waterways, docking areas, and surrounding waters, supporting early detection of suspicious vessels, unauthorized access, and abnormal maritime behavior.
Supporting fully customizable controls of every sensor, gimbal function and pan tilt size to your specifications. Click here to make a free enquiry
