Pan speed | The level is 0.01°~180°/S |
Pan accelerate speed | The horizontal velocity is 0.01°~100°/s⊃2; |
Pan | Rotate continuously from 0 to 360° |
Preset | 200 |
Repeatability accuracy | ≤±0.005° |
Positioning accuracy | ≤±0.05° |
angular resolution | 0.0002° |
Driving forms | Direct-Drive |
Real-time feedback on angles | Support , Output of current azimuth via RS422 |
Autonomous cruise | There are 8 strips, each of which can set 10 cruise points |
Autoreset | The automatic reset time can be set from 1 to 60 minutes |
Autoscan | One |
Continuous scanning | Support |
Auto reset | The motor resets automatically upon power-on |
Protocol | Pelco-D and Pelco-P are optional Platform Control via RS422 Platform Control via Ethernet |
Communication port rate | 115,200 bps (customizable) |
Interfaces to the load | A set of RS422 A set of Gigabit Ethernet A set of power supply |
Control interface | A Gigabit Ethernet group |
Input power supply | DC48V/DC60V ±10% |
Power Consumption | ＜150W |
Operation temp | -40℃～+55℃ |
Storage temp | -55℃～+65℃ |
Protection grade | IP66 |
Anti-salt-fog | PH value 6.5～7.2, continuous spraying for 48 hours, no surface change |
Load-bearing | ＞35Kg |
Self-weight of turntable | ＜10Kg |
Size | 216mm × 208mm × 209mm |
Color | RAL6003 (Supports customer customization) |
Start a free consultation with our engineer to discuss detailed and customization options.

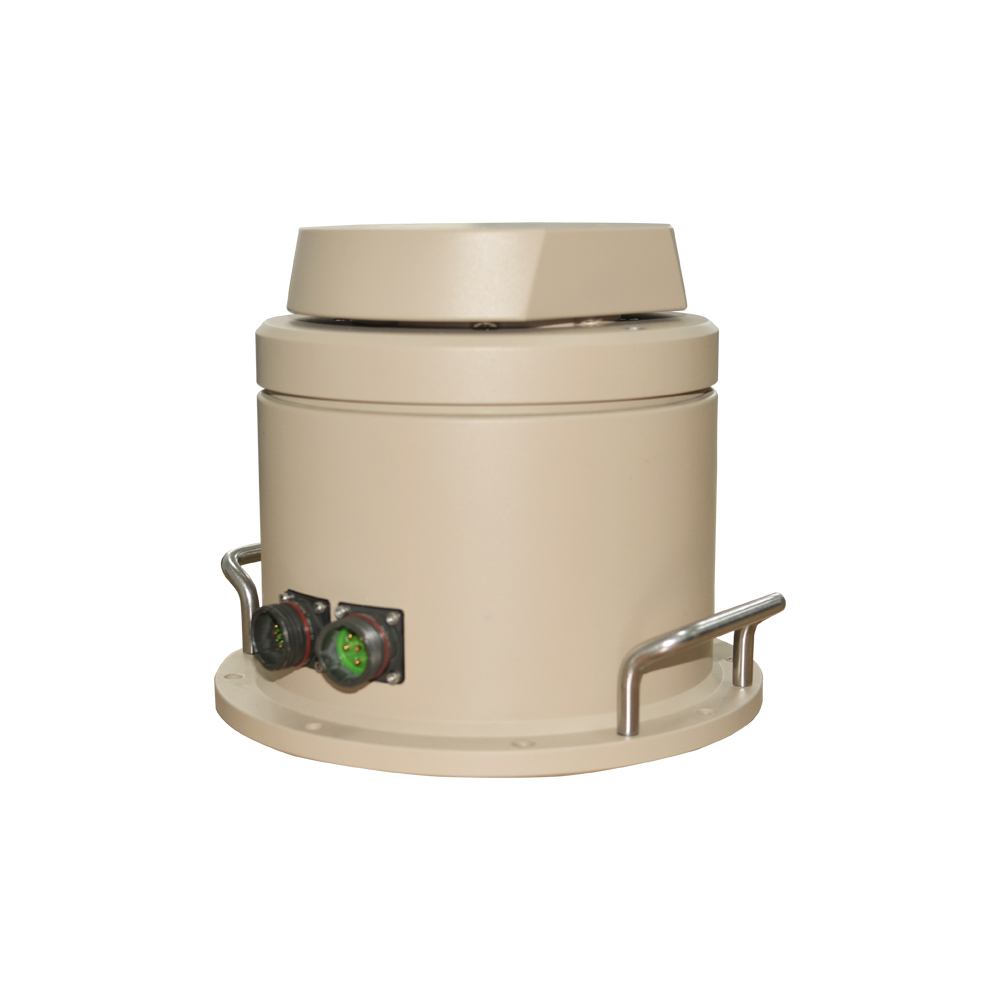

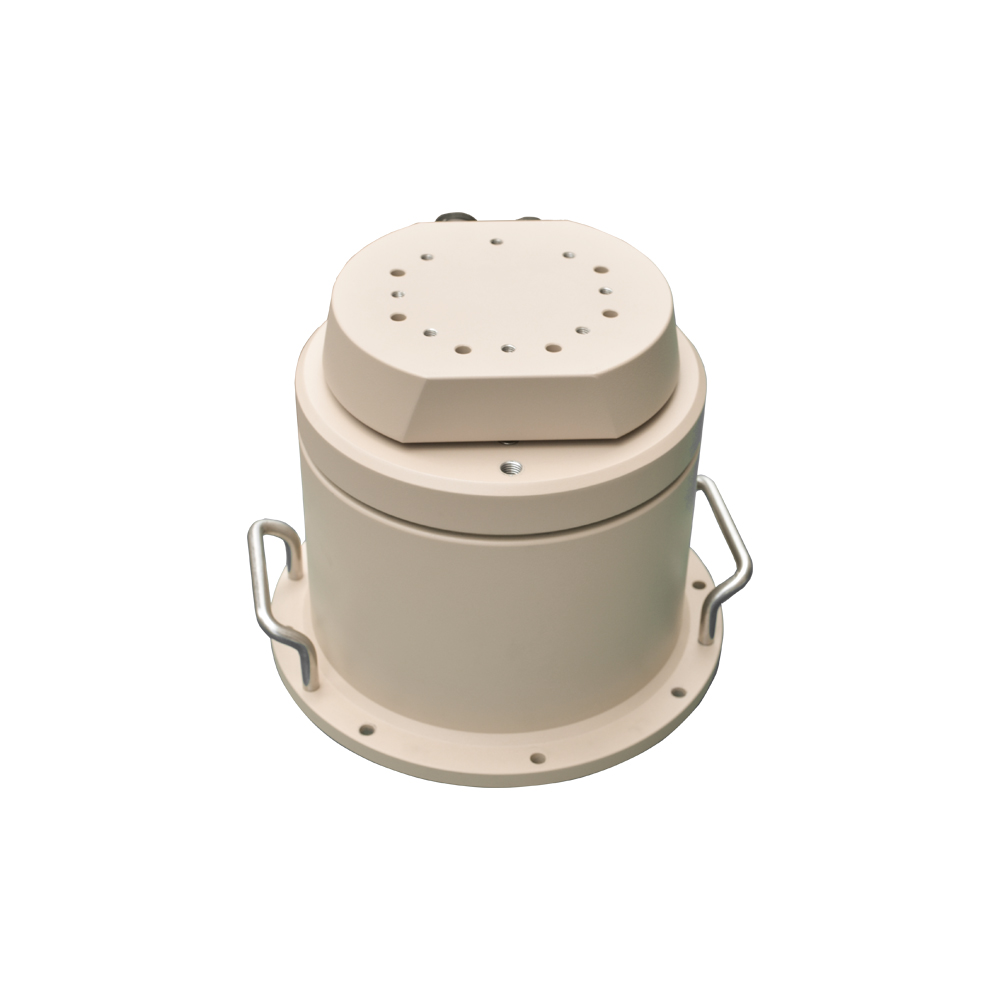

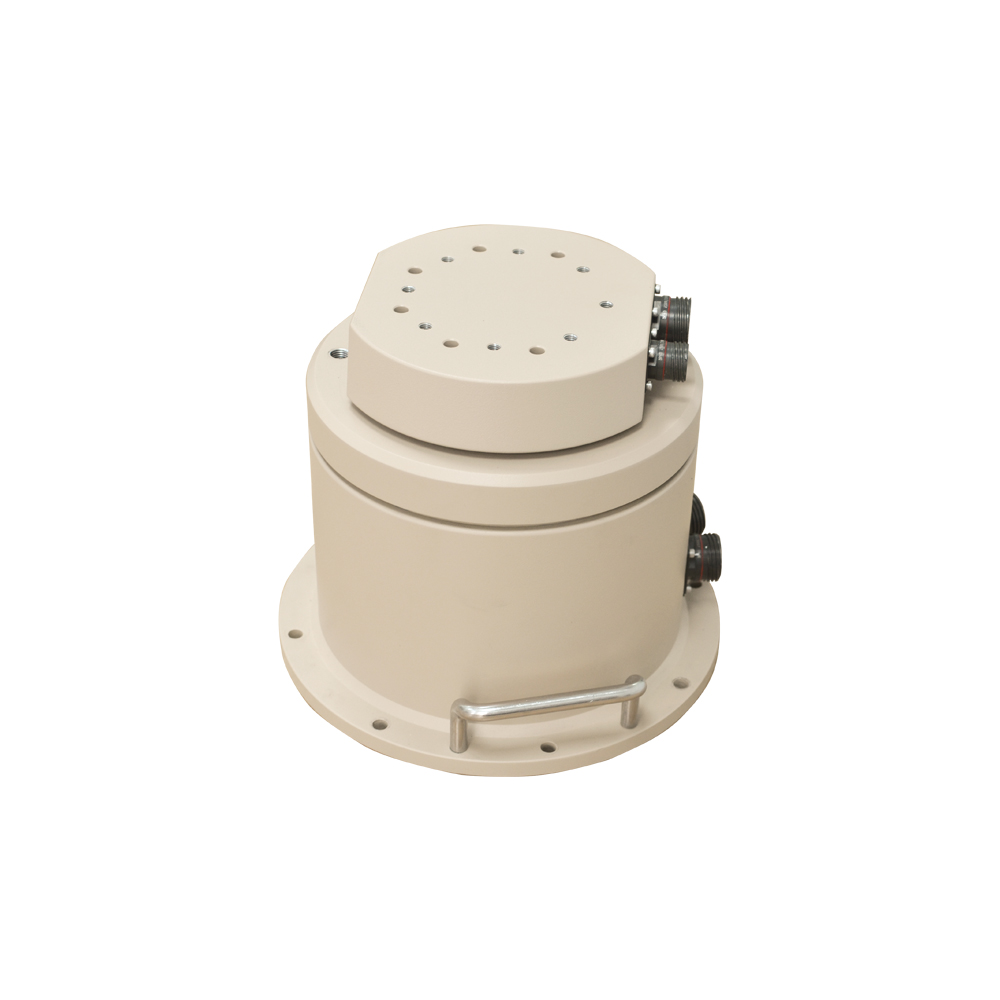

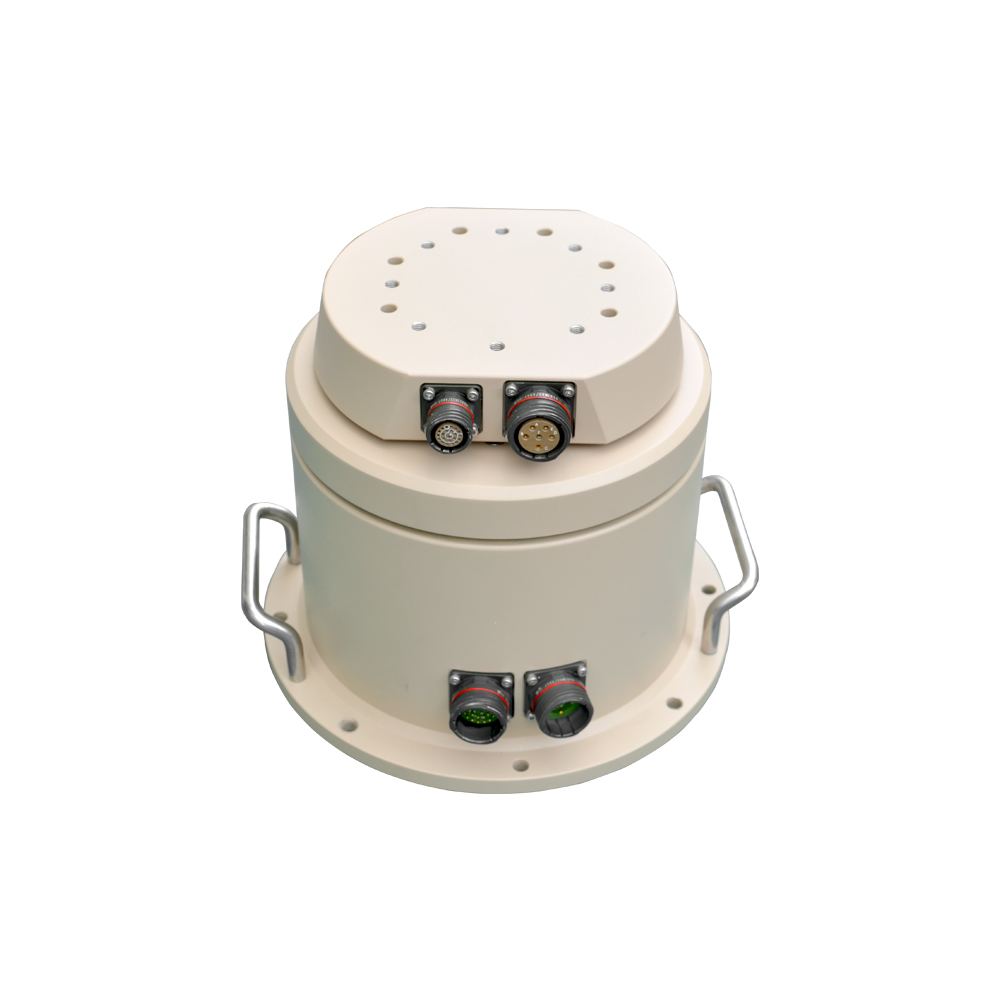

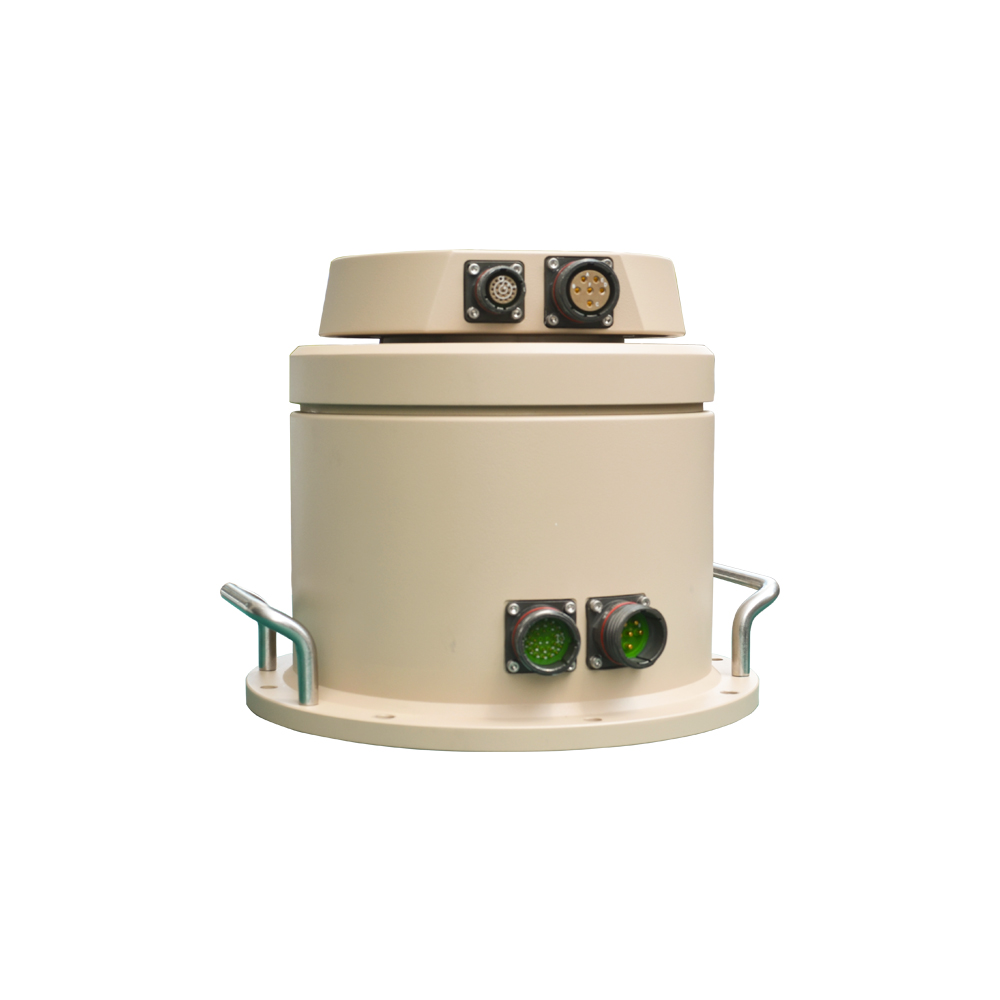

Featuring a single-axis horizontal architecture, the platform removes unnecessary elevation mechanisms, significantly reducing mechanical complexity, overall weight, and system cost. This streamlined design improves dynamic response, positioning accuracy, and long-term reliability—making it especially well suited for fixed or semi-fixed radar installations where elevation control is handled electronically or is not required.
The platform supports high-precision motion control with absolute position feedback, preset azimuth positions, and programmable scanning modes, enabling seamless integration with radar control and command systems. Its proven performance in counter-UAV radar, border and coastal surveillance, critical infrastructure protection, and persistent monitoring applications demonstrates its robustness and operational stability.
Dedicated azimuth-only rotation architecture eliminates unnecessary elevation mechanisms, reducing system complexity, weight, and cost while improving reliability and response speed.
Equipped with absolute position feedback to ensure accurate angular positioning, repeatability, and stable long-term operation for continuous radar scanning.
Supports uninterrupted 360° rotation, preset positions, and customizable scan patterns to meet diverse radar operational requirements.
Designed for seamless integration with radar control and command systems, supporting synchronized scanning and system-level coordination.
Successfully deployed in counter-UAV, border and coastal surveillance, and critical infrastructure protection, delivering reliable operation in harsh and demanding environments.
Streamlined mechanical structure lowers manufacturing and maintenance costs while maintaining high load capacity and structural stability.
Ground-Based Surveillance Radar
Ideal for fixed or semi-mobile ground radar stations, the positioner ensures smooth 360° scanning for border surveillance, perimeter protection, early-warning systems, and high-accuracy detection tasks. It delivers stable rotation even in harsh environments such as deserts, high-altitude regions, and high-wind areas.
Vehicle-Mounted Radar Platforms
For tactical vehicles, armored reconnaissance units, or mobile command stations, the positioner provides reliable azimuth rotation for compact surveillance radars. Its shock-and-vibration-resistant design ensures consistent performance during on-the-move operations.
Marine and Shipborne Radar Systems
The positioner’s corrosion-resistant materials and high load capacity make it an excellent match for shipborne navigation radars, coastal defense radars, and harbor monitoring systems. It maintains precise rotation under salt spray, humidity, and constant vessel movement.
Short-Range Tracking and Fire-Control Radar
The positioner supports rapid and accurate azimuth adjustments for short-range tracking radar systems used in counter-UAV, perimeter defense, and fire-control applications. Its fast and stable rotation improves target acquisition efficiency and tracking accuracy.
Industrial and Special-Purpose Radar Solutions
Suitable for industrial radar applications such as traffic monitoring, drone detection networks, environmental monitoring radar, and airfield surveillance systems. Its modular interface and customizable control protocols allow seamless integration with diverse radar types.
