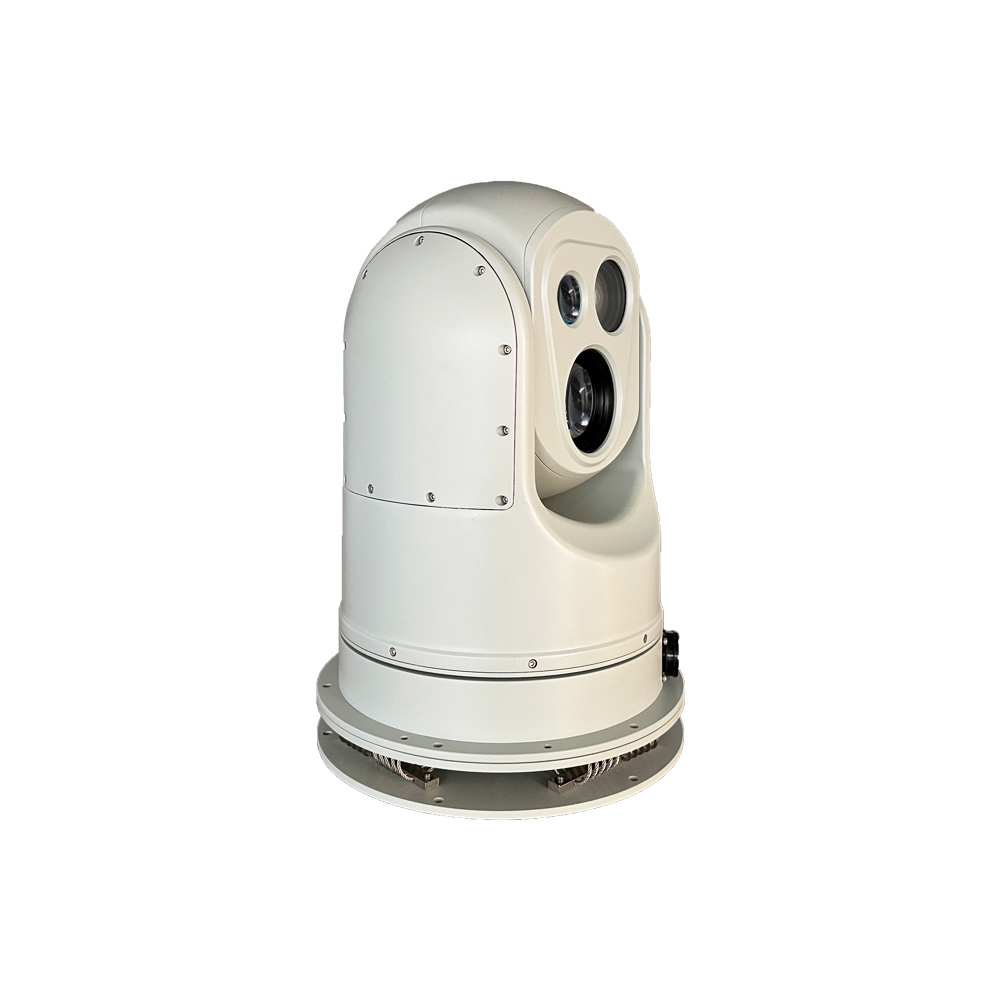

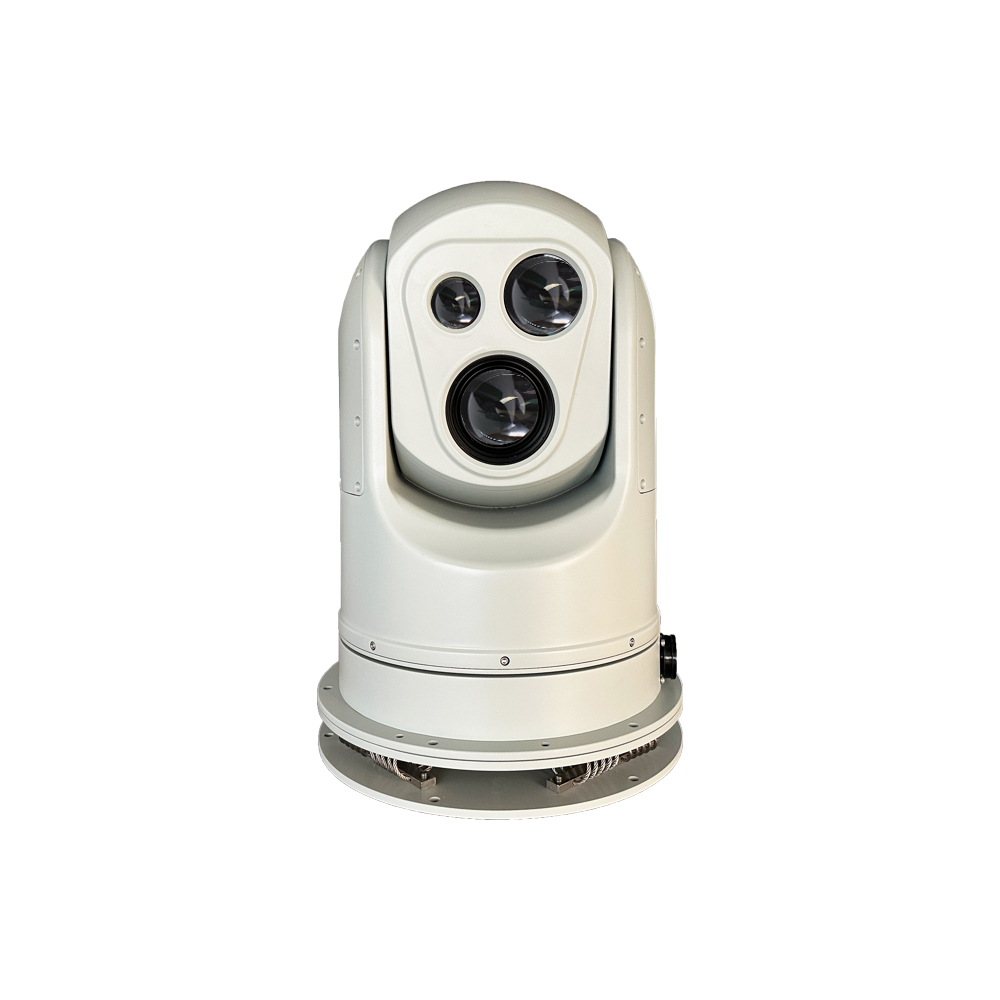

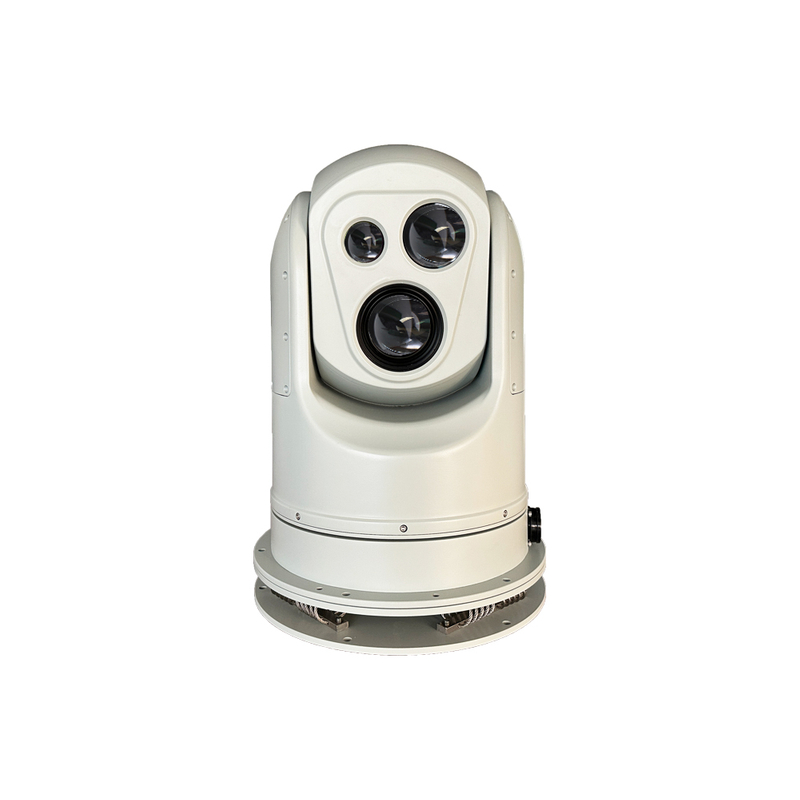

640×512 25km Long Range Detection Multi Spectrum Thermal Stabilized Imaging PTZ Camera for Aircraft

This gyro-stabilized imaging system combines a high-resolution thermal camera, HD visible sensor, and integrated laser rangefinder in a compact pan-tilt platform. Intelligent video tracking and a dedicated fire-response mode with isotherm color display and spot temperature measurement enhance target detection in smoke, steam, and low-visibility conditions. Precision stabilization and advanced onboard image processing ensure clear imagery on moving platforms, while a built-in spotlight supports nighttime identification. Rugged weatherproof construction and multiple video output options enable reliable operation and flexible system integration.


Availability:



Inquiry Add to Basket

Product Description

Gyro-stabilization	Platform	2-axis
	Stable accuracy	≤1mrad (RMS)
	Pan	360° continuously
	Tilt	-90°～+90°
	Pan speed	≥80°/s
	Tilt speed	≥60°/s
	Pan Accelerate speed	≥80°/s²
	Tilt Accelerate speed	≥60°/s²
	Repeat positioning accuracy	±0.01°
Day Camera	Sensor type	1/1.8 '' Progressive Scan CMOS
	Pixels	200Mp, 400Mp
	Resolution	1920(H) × 1080(V), 2560(H) × 1440(V)
	Focal length	5.5mm～180mm, 6.5mm～240mm, 6.1mm～317mm
	Focus	Auto/Manual/Semi-auto
	Minimum illumination	Color : 0.0005Lux/F1.4/AGC ON; Black and White : 0.0001Lux/F1.4/AGC ON
	Optical fog penetration	Support
Thermal Camera	Detector type	Uncooled Vanadium Oxide Microbolometer
	Resolution	640 × 512@17μm, 1280 × 1024@12μm
	Spectrum	8～14μm
	NETD	≤40mK@F1.0,300K
	Focal length	50mm, 75mm, 100mm, 25～75mm
	Focus type	Electric focus/Auto focus
	Digital zoom	1×/2×/4×/8×
	Pseudo-color	White Hot / Black Hot / Rainbow / Iron Red / Lava / Sky / Purple Orange / Gradient Red / Gradient Green / Gradient Blue
	Image process	Nonuniformity Correction/Digital Filter Noise Reduction/DDE
General	OSD	Date, time, longitude, latitude, altitude, speed, azimuth and pitch information (displaying and blanking superimposed characters)
	Encode	H.265/H.264
	Interface protocol	ONVIF/GB28181
	Communication interface	1×RS422/1×RJ45
	Power interface	DC24V
	RH	<90%RH
	Protection grade	IP66
	Anti-salt-fog	PH value 6.5～7.2, continuous spraying for 48 hours, no surface change
	Operating temperature	-40℃～+55℃
	Storage temperature	-55℃～+65℃
	Consumption	Average power consumption ≤60W
	Weight	≤12Kg
	Dimension	Φ260mm × 400mm
	Laser Rangefinder	5km/10km/15km Optional
	Laser lighting	500m/800m Optional

Start a free consultation with our engineer to discuss detailed and customization options.

Overview of Product

Designed for demanding field operations, this multisensor stabilized camera system delivers day-and-night situational awareness with thermal imaging, low-light visible vision, and laser rangefinder. Target tracking and a heat-detection mode help operators quickly identify people, vehicles, and hotspots in obscured environments. The stabilized pan-tilt unit maintains a steady view during motion, and the sealed all-weather housing ensures dependable outdoor performance. Broad video interface support allows easy integration into mobile, marine, and fixed security platforms.

通用2-2

Product Features

Multisensor Imaging Payload

Combines a high-resolution thermal imager, HD low-light visible camera, and integrated laser rangefinder for detection, identification, and distance measurement in a single platform.

Precision Gyro Stabilization

Stabilized pan-tilt mechanism maintains clear, steady imagery on moving vehicles, vessels, and elevated installations.

Intelligent Video Tracking

Automatically locks onto and follows moving targets, reducing operator workload and improving tracking reliability.

Advanced Onboard Image Processing

Real-time enhancement improves contrast, sharpness, and scene clarity in complex environments.

Flexible Video & Control Interfaces

Supports IP Ethernet, HD-SDI, and analog outputs with absolute positioning feedback for seamless system integration.

24/7/365 Operational Readiness

Engineered for continuous operation in surveillance, search and rescue, driver vision enhancement, and perimeter security missions.

Applications

Disaster Response & Emergency Management

Assists in post-disaster assessment, survivor location, and hazard identification in environments affected by smoke, dust, debris, or power outages.

Critical Infrastructure Protection

Monitors power plants, pipelines, transportation hubs, and industrial sites, enabling early detection of unauthorized activity or overheating equipment.

Border & Perimeter Surveillance

Supports vessel detection, navigation safety monitoring, and threat identification in coastal and port environments. Stabilization ensures clear imagery despite vessel motion and rough water.
