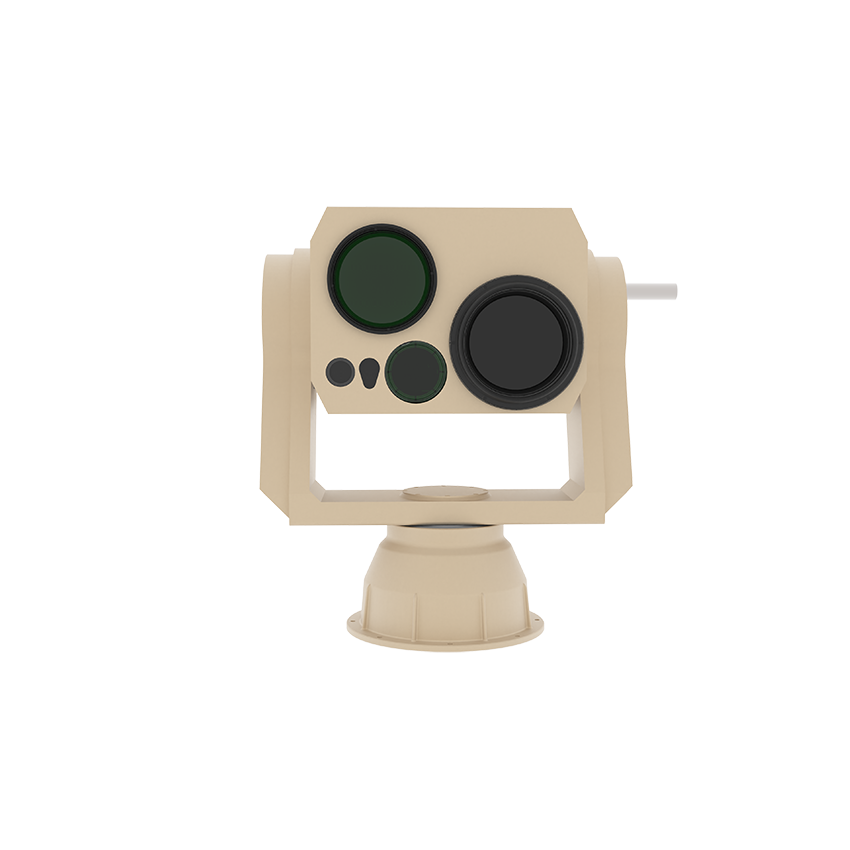

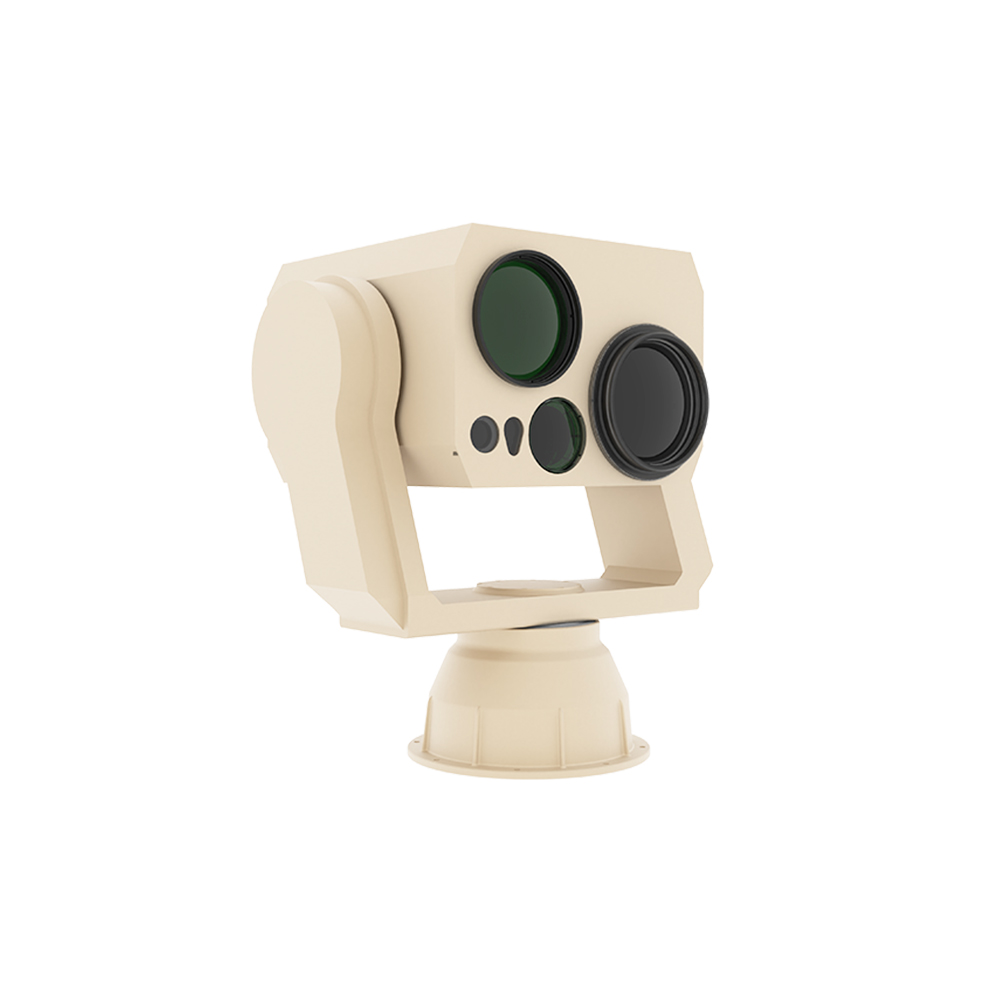

It integrates high-definition visible imaging, infrared thermal detection, and laser rangefinding into a compact, vehicle-compatible unit, delivering stable, clear imagery even when the host vehicle is moving at high speeds or traversing rough terrain. Equipped with dual-axis gyro stabilization technology (≤0.05° precision) and military-grade durability, it addresses the key challenge of maintaining imaging integrity in dynamic ground environments. From law enforcement patrols and border security to critical infrastructure monitoring and event security, it provides 24/7 real-time surveillance, target tracking, and evidence collection—empowering operators with actionable intelligence on the move.
Dual-axis gyro stabilization counteracts pitch and roll caused by vehicle motion, road bumps, or uneven terrain. With a stable accuracy of ≤0.2mrad (RMS) and repeat positioning accuracy of ±0.01°, it delivers blur-free imagery even at vehicle speeds up to 120km/h.
The system features a 400Mp visible camera (1920×1080/2560×1440 resolution) with a focal length range of 10–550mm, enabling long-range target identification. It also includes an infrared thermal camera (8–14μm spectrum, ≤40mK NETD) for low-light/night operations and a laser rangefinder (up to 15km optional) for precise distance measurement.
Compact design (400mm × 600mm × 650mm) and lightweight options (≤50Kg) ensure easy integration with various vehicles—including patrol cars, SUVs, and armored vehicles. It operates on DC24V/48V vehicle power and features shock-resistant mounting to withstand vehicle vibrations.
Built to withstand harsh ground environments, it has an IP66 protection grade, dust resistance, and temperature tolerance of -40℃ to +55℃. It performs reliably in rain, snow, dust storms, and extreme temperatures, ensuring uninterrupted operation in diverse climates.
Equipped with a 1×RJ45/RS422 communication interface and support for 4G/5G modules (optional), it transmits high-definition video and sensor data to on-board or remote control centers in real time. It supports ONVIF/GB28181 protocols for seamless integration with existing security systems.
Mounted on patrol vehicles, it supports high-speed pursuit monitoring, traffic enforcement, and criminal surveillance. It captures clear evidence footage, tracks suspects, and monitors border crossings to prevent illegal immigration and smuggling.
Used for monitoring power lines, pipelines, railways, and industrial facilities, it detects unauthorized access, equipment defects, or potential threats. Operators can conduct remote inspections without stopping the vehicle, improving patrol efficiency.
Deployed at large events, rallies, or high-security areas, it provides crowd monitoring and threat detection. It identifies suspicious behavior, tracks potential hazards, and supports rapid response to ensure public safety.
In natural disasters like floods, earthquakes, or wildfires, it assists in search-and-rescue operations. The thermal camera detects heat signatures of trapped individuals, while the stabilized imaging navigates chaotic disaster zones to guide rescue teams.
It has an average power consumption of ≤80W, enabling continuous operation as long as the vehicle’s power system is active. It also supports backup battery integration (optional) for 2–4 hours of off-vehicle operation.
Yes, it supports remote control via secure network connections. Operators can adjust camera angles, zoom, and tracking parameters from a central command center, eliminating the need for on-site manual operation.
The visible camera operates at 0.0005Lux (color)/0.0001Lux (black and white) with AGC ON, ensuring clear imaging in low-light conditions like night or overcast weather.
