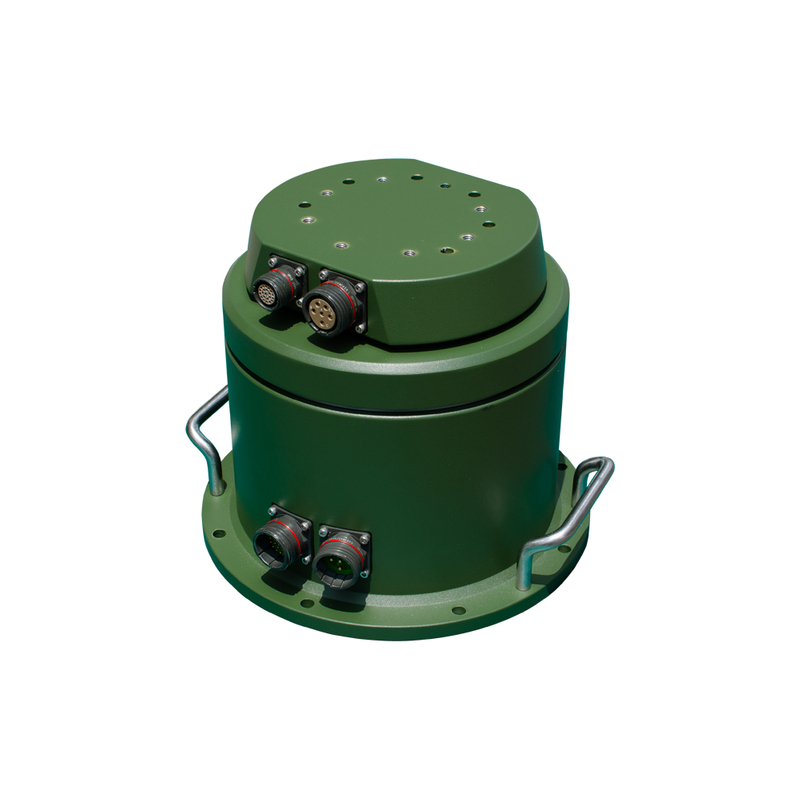

The Single-Axis Radar Pan rotator Positioner is a specialized positioning platform engineered for precise rotation along a single horizontal (azimuth) axis, providing high stability, repeatability, and accurate directional control for fixed-mounted systems where elevation movement is not required. The simplified single-axis design reduces mechanical complexity while improving positioning accuracy, dynamic response, and long-term reliability. With a wide payload capacity ranging from 3 kg to 300 kg, the platform supports everything from lightweight camera systems and antennas to heavy-duty radar payloads including large radar antennas used in counter-UAV, border and coastal defense, and telecommunications systems.
The platform supports standard Pelco P/D control over RS-485, RS-422, or RS-232 interfaces and provides full motion control functions equivalent to pan-tilt systems, including preset positions, programmable scanning, and absolute position feedback, delivering higher rotational speed, minimal backlash, and superior positioning accuracy for fast-response and precision-tracking applications. Designed for continuous operation in demanding environments, the Single-Axis Radar Positioner serves as a reliable positioning and tracking core for radar, surveillance, and communication systems.
Designed exclusively for horizontal (azimuth) rotation, the platform eliminates unnecessary elevation mechanisms, resulting in higher reliability, faster response, and improved positioning accuracy for applications requiring continuous or indexed horizontal scanning.
A scalable mechanical architecture supports a broad range of payloads, from compact EO cameras and antennas to large radar systems, ensuring stable operation under both light and heavy loads.
Supports Pelco P/D protocol over RS-485 / RS-422 / RS-232, with full motion control functions including presets, programmable scanning, and absolute position feedback, enabling seamless integration into existing surveillance and command systems.
Deployed in counter-UAV, border security, coastal surveillance, and telecommunications systems, the platform is engineered for continuous operation in harsh outdoor environments.
Supporting fully customizable controls of every sensor, gimbal function and pan tilt size/color to your specifications.
