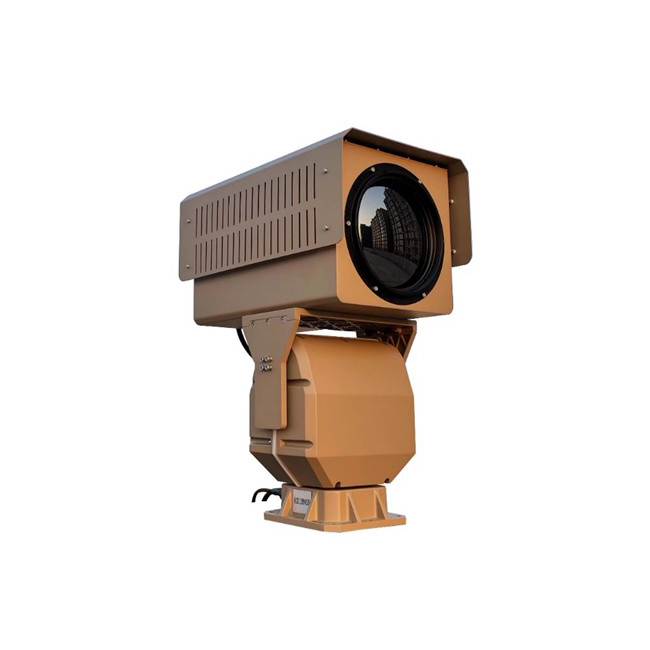

The PTZ Day/ Night Surveillance Camera Systems with Thermal Imaging is a high-performance single-spectrum long-wave thermal imaging system designed for long-range surveillance, target search, and 24/7 perimeter protection. Built on the latest uncooled LWIR technology, the system integrates a high-sensitivity FPA detector, advanced imaging electronics, and a specially-designed long-focal-length thermal lens to deliver superior detail, stability, and environmental adaptability.
With a high resolution of 1280 × 1024, NETD≤ 50 mK, and a suite of digital image-enhancement algorithms, the camera maintains high-contrast thermal images even under fog, haze, rain, snow, or total darkness. The system is optimized for long-distance detection — ideal for large-scale monitoring such as airports, borders, coastal areas, industrial facilities, and security-critical assets. An integrated aluminum-alloy housing ensures IP66 weather protection and long-term outdoor reliability. Combined with optional pan tilt units supporting 360° continuous rotation, the system delivers uninterrupted wide-area surveillance without blind spots.
High-resolution 1280 × 1024 LWIR detector（640×512 Optional）
Provides fine image detail suitable for long-distance observation and target recognition.
High thermal sensitivity (NETD ≤ 50 mK)
Captures small temperature differences, ensuring clear imaging in low-contrast environments such as fog or heavy humidity.
Optimized long-wave thermal lens
Designed for extended detection ranges (up to 9 km depending on lens configuration and target type).
Advanced digital image processing
Includes non-uniformity correction (NUC), dynamic range optimization, SDE image enhancement, noise suppression, and multi-palette pseudo-color modes.
True all-weather performance
Capable of penetrating fog, haze, rain, snow, dust, and operating in complete darkness without auxiliary lighting.
Robust outdoor construction
One-piece aluminum alloy housing with IP66 rating; dustproof, waterproof, anti-corrosion, suitable for harsh climates.
Optional Pan Tilt integration
Digital control with 360° continuous rotation, sma
ll dithering, stable long-term operation.Low power consumption & long service life
Uncooled detector architecture with zero maintenance for TEC or cryogenic modules.
Airport and runway surveillance
Border and coastline monitoring
Critical infrastructure protection
Perimeter security for industrial and energy facilities
Search & rescue in night / smoke / fog
Wildlife monitoring and environmental observation
Anti-intrusion and early-warning systems
Technical Specification
Thermal Camera | |||
Focal length | 20mm～200mm | 20mm～240mm | 30mm～300mm |
Iris | F1.0～F1.2 | F1.0～F1.2 | F1.0～F1.2 |
FOV | 34.2°× 25.9°～3.5°× 2.6° | 34.2°× 25.9°～2.9°× 2.2° | 23.1°× 17.5°～2.3°× 1.8° |
IFOV | 0.6～0.06mrad | 0.6～0.05mrad | 0.4～0.04mrad |
Detector type | Uncooled Vanadium Oxide Microbolometer | ||
Resolution | 1280 × 1024 (640 × 512 optional） | ||
Pixel size | 12μm | ||
Spectrum | 8～14μm | ||
NETD | ≤50mK@F1.0,300K | ||
Lens control | Electric zoom/focus | ||
Frame rate | 30Hz | ||
Digital zoom | 1×/2×/3×/4× | ||
Pseudo-color | White Hot / Black Hot / Rainbow / Iron Red / Lava / Sky / Purple Orange / Gradient Red / Gradient Green / Gradient Blue | ||
Image process | Non-uniformity Correction/Digital Filter Noise Reduction/Digital Detail Enhancement | ||
Visible light imaging | |||
Optional | |||
Laser rangefinder | |||
5km/10km/15km/20km/30km/40km optional | |||
Pan Tilt | |||
Pan speed | 0.01°～30°/s | ||
Tilt speed | 0.01°～15°/s | ||
Preset | Max 256 | ||
Pan angle | 360° rotation continuously | ||
Tilt angle | -45°～+45° | ||
Cruise | 200 presets, 4 tracks | ||
General | |||
Encode | H.265/H.264 | ||
Interface protocol | ONVIF/GB28181 | ||
Communication interface | 1×RJ45 | ||
Power | DC24V | ||
RH | <90%RH | ||
Protection grade | IP66 | ||
Anti-salt-fog | PH value 6.5～7.2, continuous spraying for 48 hours, no surface change | ||
Working temp | -40℃～+55℃ | ||
Storage temp | -40℃～+65 ℃ | ||
Consumption | ≤90W | ||
Weight | ≤45Kg | ||
Dimension | 520mm × 362mm × 678mm | ||
Supporting fully customizable controls of every sensor, gimbal function and pan tilt size to your specifications. Individual system-related components can be supplied upon request.
