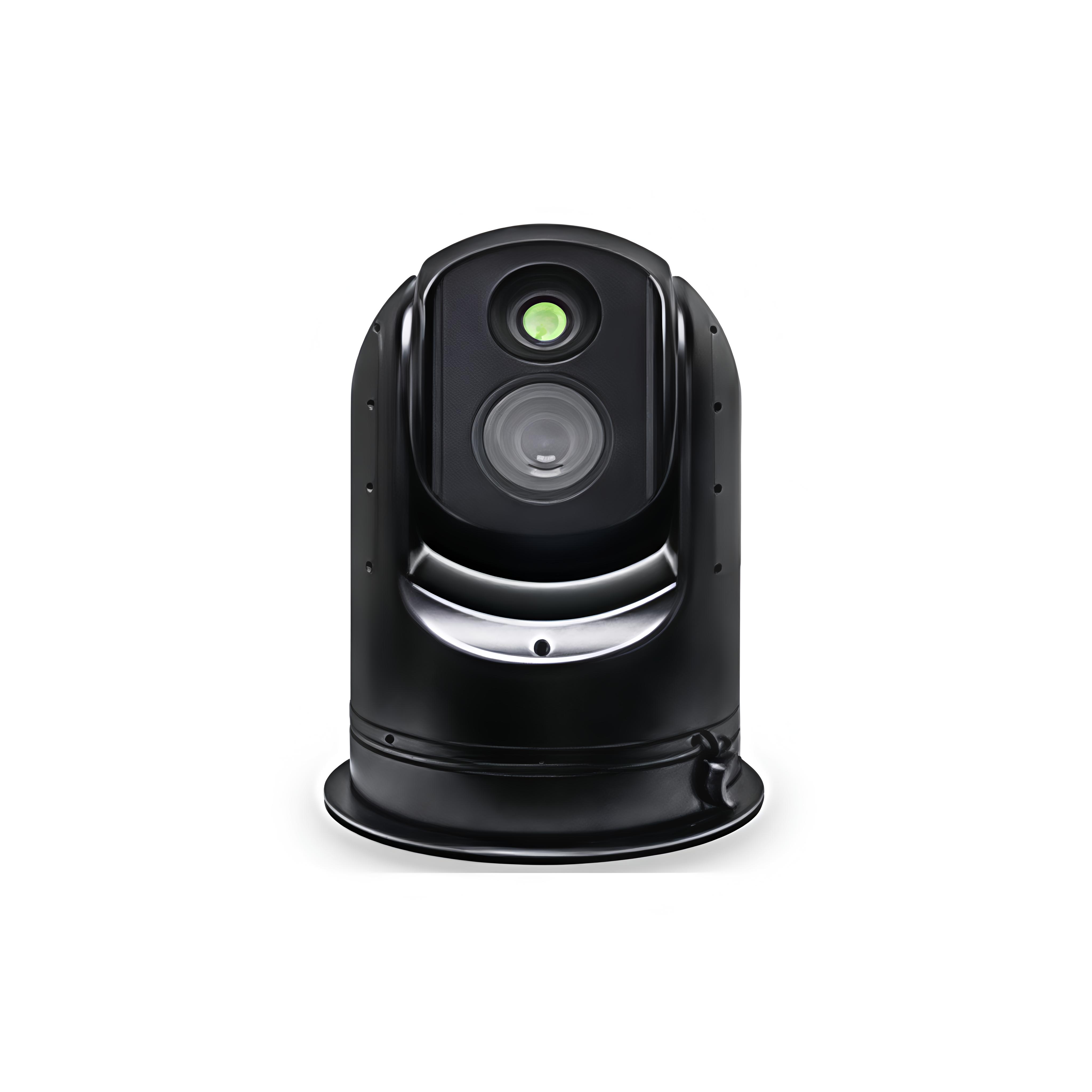

Ship Mounted Gyro Stabilized PTZ Thermal Security Camera for Maritime Navigation

Multispectral Marine Surveillance Cameras are engineered to deliver exceptional situational awareness on the water. Equipped with a high-definition ultra-low-light visible camera and advanced thermal imaging sensors, these systems provide clear, reliable vision even in challenging environmental conditions. By fusing visible and thermal imagery, they produce enhanced colorized thermal views that help mariners confidently identify navigation aids, nearby vessels, and potential hazards within the scene. Integrated active gyro-stabilization ensures a steady, high-performance image, maintaining precise awareness even in rough seas and highly dynamic maritime environments.
Availability:
Inquiry Add to Basket


Gyro-stabilization

Platform

2-axis

Stable accuracy

≤1mrad (RMS)

Pan

360° continuously

Tilt

-90°～+90°

Pan speed

≥80°/s

Tilt speed

≥60°/s

Pan Accelerate   speed

≥80°/s2

Tilt Accelerate   speed

≥60°/s2

Repeat   positioning accuracy

±0.01°

Day Camera

Sensor type

1/1.8 '' Progressive Scan CMOS

Pixels

200Mp, 400Mp

Resolution

1920(H) × 1080(V), 2560(H) × 1440(V)

Focal length

5.5mm～180mm, 6.5mm～240mm, 6.1mm～317mm

Focus

Auto/Manual/Semi-auto

Minimum   illumination

Color :   0.0005Lux/F1.4/AGC ON;

Black and White : 0.0001Lux/F1.4/AGC ON

Optical  fog penetration

Support

Thermal Camera

Detector type

Uncooled Vanadium Oxide Microbolometer

Resolution

640 × 512@17μm, 1280 × 1024@12μm

Spectrum

8～14μm

NETD

≤40mK@F1.0,300K

Focal length

50mm, 75mm, 100mm, 25～75mm

Focus type

Electric focus/Auto focus

Digital zoom

1×/2×/4×/8×

Pseudo-color

White Hot / Black Hot / Rainbow / Iron   Red / Lava / Sky / Purple Orange / Gradient Red / Gradient Green / Gradient   Blue

Image process

Nonuniformity Correction/Digital Filter   Noise Reduction/DDE

General

OSD

Date, time, longitude, latitude,   altitude, speed, azimuth and pitch information (displaying and blanking   superimposed characters)

Encode

H.265/H.264

Interface   protocol

ONVIF/GB28181

Communication   interface

1×RS422/1×RJ45

Power interface

DC24V

RH

<90%RH

Protection grade

IP66

Anti-salt-fog

PH value 6.5～7.2, continuous spraying for 48 hours, no surface   change

Operating   temperature

-40℃～+55℃

Storage   temperature

-55℃～+65℃

Consumption

Average power consumption ≤60W

Weight

≤12Kg

Dimension

Φ260mm × 400mm

Laser   Rangefinder

5km/10km/15km Optional

Laser lighting

500m/800m Optional

Start a free consultation with our engineer  to discuss detailed and customization options.


Overview of Product


This system integrates a high-precision transmission mechanism with an advanced gyro-stabilization platform, and is equipped with both infrared thermal sensing and visible-light imaging payloads. It enables rapid target search, accurate tracking, and precise positioning across maritime, aerial, and coastal three-dimensional operational environments. Designed with an intuitive human–machine interface and extensive external control interfaces, the system can be seamlessly integrated with shipborne control systems, airborne platforms, and vehicle-mounted solutions. It plays a critical role in emergency response and surveillance missions, including maritime patrol, search and rescue (SAR), environmental monitoring, and forest fire detection.



Product Features


2-Axis  Stabilization

Integrated gyro-stabilization actively compensates for vessel motion, delivering a stable and clear image even in rough sea conditions.


Superior Thermal and Ultra-Low-Light Night Vision Performance

The system represent the universal models in  marine camera series, Integrates thermal imaging core with a high-definition visible camera, delivering exceptional nighttime and low-visibility imaging capability.


Two Camera Payload

High-sensitivity thermal detection enables reliable target detection in total darkness, sun glare, haze, and light fog where conventional cameras struggle. Multispectral sensing fuses thermal and visible-spectrum imaging to deliver superior maritime situational awareness across all lighting conditions.


Rugged Marine-Grade Construction (IPX6)

Sealed pan-tilt housing is engineered to withstand harsh maritime environments, including heavy seas, wind, spray, and salt exposure.


Advanced Onboard Image Processing

Embedded processing enhances contrast, sharpness, and scene clarity in real time, improving operator decision-making in dynamic conditions.



Applications


Waterway & Port Security

Coastal & Inland Water Surveillance

Fisheries & Law Enforcement

Infrastructure Protection

Yachts Security

Marine Defense



Customization Options

Click here to make an enquiry
