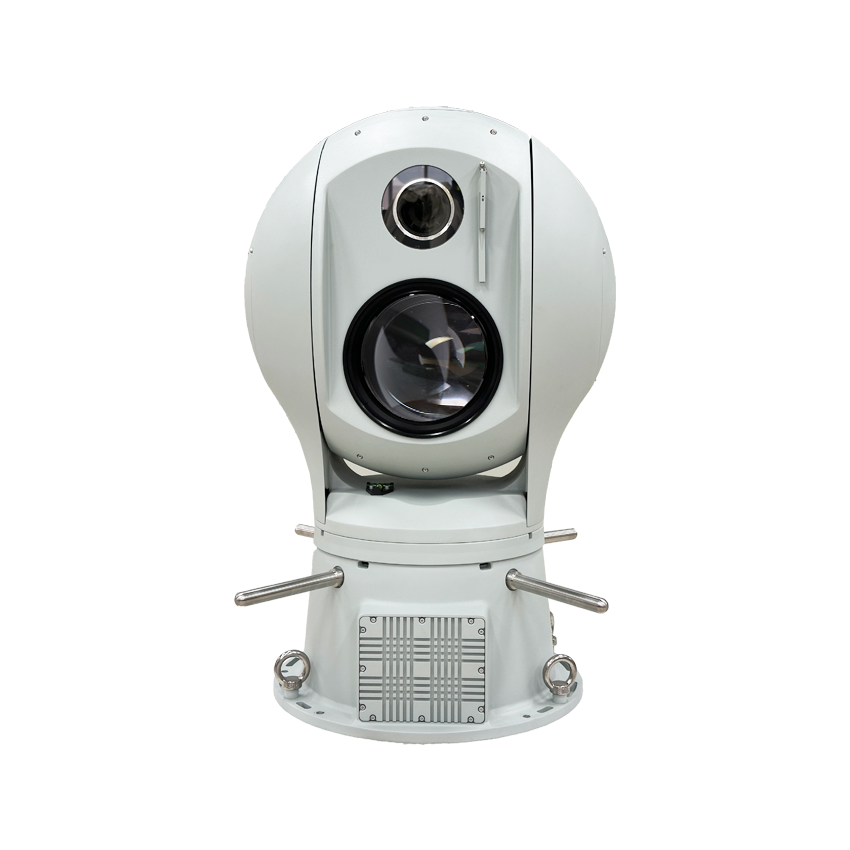

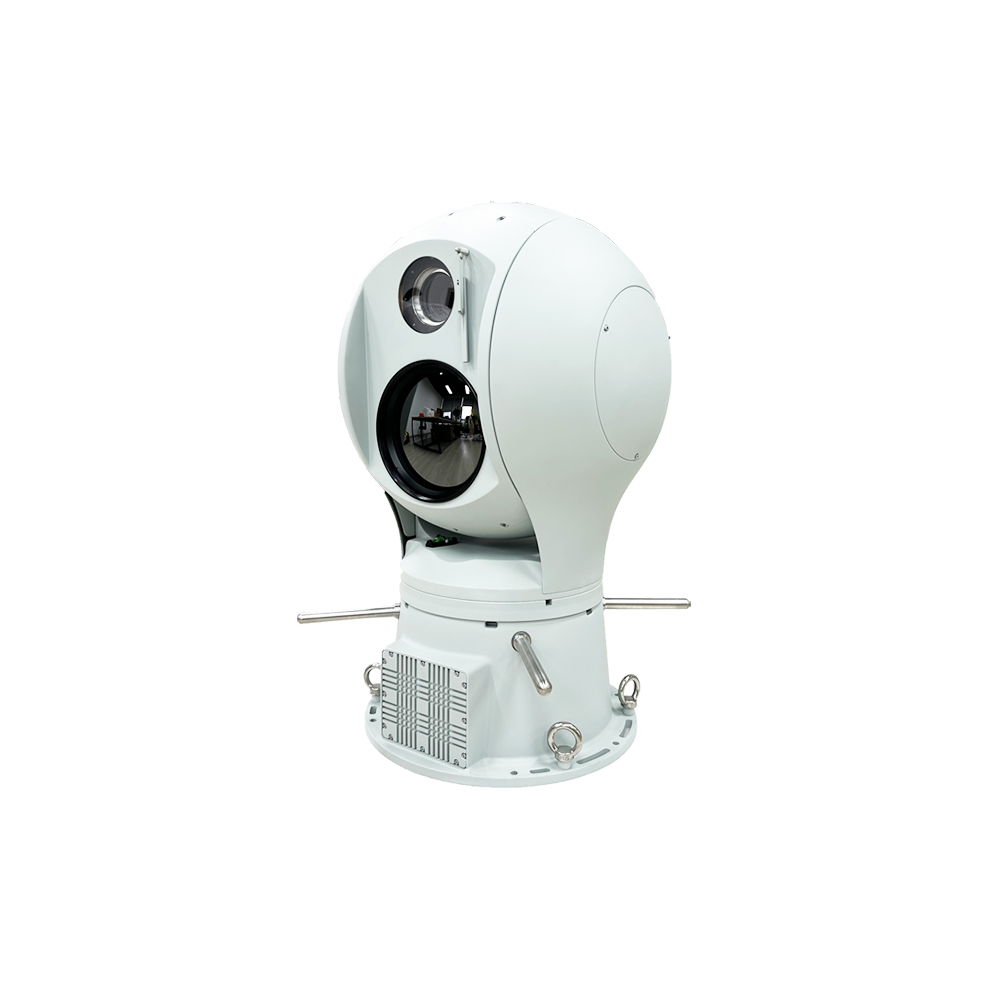

The Globe-shaped Pan Tilt is a critical, high-precision motion component designed to serve as the backbone of advanced electro-optical systems. Its spherical electro-optical turntable structure enables stable, continuous operation, delivering exceptional positioning accuracy and image stabilization for a wide range of critical applications. Engineered to meet the demands of mission-critical environments, this pan tilt system combines durability, versatility, and intelligent performance, supporting seamless integration with various payloads—including thermal imagers, laser designators, and high-definition cameras. Whether deployed in harsh military settings, busy transportation hubs, or precision industrial facilities, it ensures the capture of steady, high-definition data, overcoming challenges like vibration, extreme temperatures, and dynamic target tracking. As an all-weather, all-terrain solution, it empowers electro-optical systems to perform reliably in the most complex optical scenarios.
This Globe-shaped Pan Tilt is built to withstand extreme conditions, featuring optical fog penetration technology for clearer imaging in misty or humid environments. It is resistant to corrosion and acid rain, with a military-grade housing that meets IP68 protection standards. An independent defogging and defrosting module effectively eliminates lens fog caused by temperature differences, ensuring unobstructed vision in outdoor settings. The system operates reliably in temperatures ranging from -40℃ to 65℃ and can endure shock and vibration up to 15G, making it suitable for deployment in coastal areas, desert regions, and high-altitude locations.
Designed with low power consumption in mind, the system consumes only ≤25W during continuous operation, extending battery life for mobile applications like drone payloads or vehicle-mounted surveillance. Its compact, space-efficient design—with a minimum footprint of 180mm×180mm—allows installation in limited spaces without sacrificing performance. The pan tilt supports customized imaging system integration, with high positioning accuracy of ±0.05° to ensure precise target alignment. Whether mounted on moving vehicles, fixed structures, or portable devices, it maintains stable performance, adapting to uneven terrain and dynamic movement.
The core strength of this system lies in its high-precision motion control, enabling rapid and accurate positioning for target tracking and inspection. It supports dual-axis rotation with a pan range of 360° continuous rotation and a tilt range of -90° to +90°, ensuring full coverage of the surveillance area. The built-in stabilization algorithm compensates for external vibrations, delivering shake-free images even when mounted on moving platforms like ships or trucks. With a maximum angular velocity of 100°/s, it can quickly lock onto fast-moving targets, making it ideal for applications like traffic violation capture and military target tracking.
Integrated with thermal imaging technology, the Globe-shaped Pan Tilt achieves 24/7 continuous monitoring, capturing clear images in complete darkness (0 lux) and low-light conditions. The thermal imaging module detects temperature differences as small as 0.08℃, enabling the identification of hidden objects, human targets, or equipment overheating. This capability is critical for nighttime security patrols, border surveillance, and industrial equipment monitoring, where visibility is limited but situational awareness is essential.
In military and defense settings, the pan tilt system serves as a core component for target tracking, surveillance, and fire control. It enables precise, rapid aiming of sensors—such as thermal imagers and laser designators—on tanks, warships, and fixed installations. The system’s resistance to shock, vibration, and extreme temperatures ensures reliable operation in combat zones, supporting drone payload stabilization, electro-optical countermeasures, and perimeter security. It can detect and track targets at distances of up to 5km in daylight and 3km at night, providing critical early warning for security personnel.
Deployed in intelligent transportation systems, the Globe-shaped Pan Tilt enables automated traffic enforcement and real-time traffic management. It accurately captures violations like speeding (detection accuracy ±3 km/h) and red-light running, with rapid repositioning to cover multiple lanes simultaneously. The system’s all-weather performance ensures consistent operation in rain, snow, or fog, supporting traffic flow analysis and vehicle tracking. For city traffic management, it provides data-driven insights to optimize signal timing and reduce congestion, enhancing road safety and efficiency.
In industrial and scientific settings, the pan tilt system excels at precision measurement and automated inspection. It is widely used for antenna pattern measurement, laser communication alignment, environmental simulation, and high-speed product defect detection on production lines. The ±0.05° positioning accuracy and repeatability ensure reliable, verifiable results for quality control and research applications. For example, in manufacturing, it can inspect micro-defects on electronic components or monitor equipment wear in real time, reducing downtime and improving production efficiency.
The standard model supports a maximum payload of 15kg, with customized versions available for heavier sensors (up to 30kg) to meet specific application needs. The flexible bracketing system ensures compatibility with most electro-optical payloads, including cameras, thermal imagers, and laser rangefinders.
The pan tilt features an integrated thermal management system, including heating and cooling modules, to maintain optimal performance in temperatures from -40℃ to 65℃. The defogging and defrosting function prevents lens fogging caused by sudden temperature shifts, ensuring continuous visibility in harsh environments.
Yes, the system supports multiple control interfaces, including Ethernet, RS485, and wireless (Wi-Fi/Bluetooth), enabling remote operation from a central control room or mobile device. It also integrates with third-party control software, allowing seamless integration into existing surveillance or automation systems.
With military-grade construction and high-quality components, the system has an operational lifespan of 8–10 years under normal usage. We provide a 3-year warranty for hardware defects, along with technical support and maintenance services to extend its service life.
