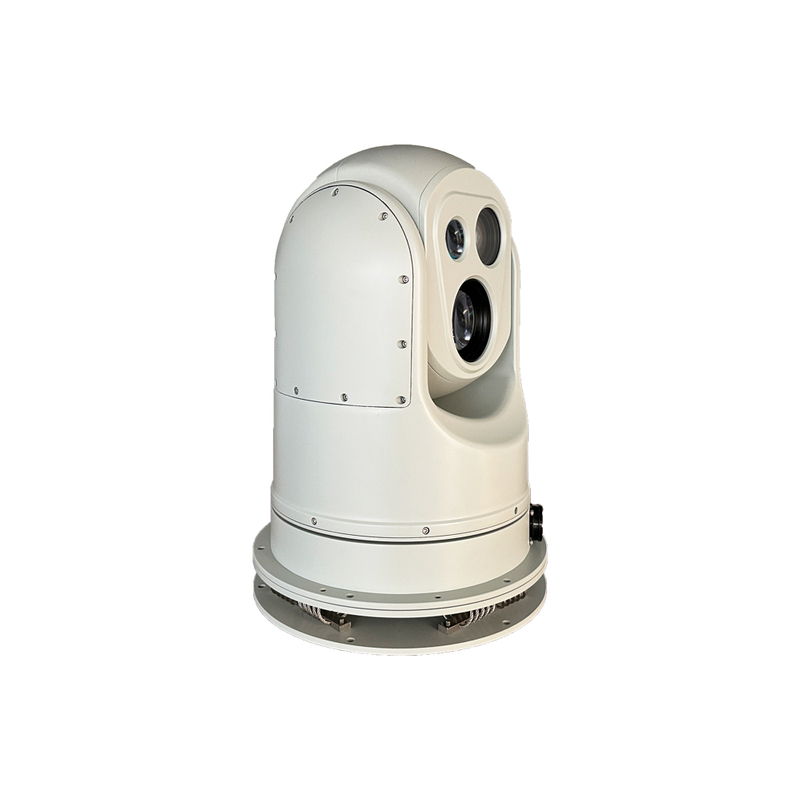

The large Universal Low-Cost Marine Gyro-Stabilized Camera is a cost-efficient, high-performance solution designed for large-scale maritime monitoring and budget-sensitive deployments. It combines high-definition visible imaging, infrared thermal sensing, and laser-assisted night vision into a single stabilized platform, enabling reliable multi-spectral detection, rapid target acquisition, and consistent situational awareness in complex marine environments. Built on military-grade gyro stabilization technology, the system provides full 360° continuous stabilization and delivers tracking accuracy of approximately 0.05°, effectively compensating for vessel motion caused by waves, wind, and high-speed maneuvering. This ensures clear, steady imagery even under rough-sea conditions, delivering land-level image stability on open water. Through structural optimization and the use of standardized, proven components, the system achieves an excellent balance between performance and cost. It significantly lowers deployment barriers while retaining core stabilization and imaging capabilities, making it an ideal choice for maritime law enforcement, port and harbor security, coastal patrol, and routine sea-based surveillance operations.
- Full HD crystal-clear video for reliable marine visibility
- Multi-stream viewing on a single display for efficient situational awareness
- Excellent low-light performance with built-in infrared illumination
- Compact, marine-grade design for easy and discreet installation
- Flexible mounting with image flip and rotation functions
- Simple plug-and-play power and network options
- Rugged IP66 housing for harsh marine environments
- Seamless integration with third-party security and navigation systems
Designed for real-time maritime visual awareness, the camera provides crew with clear, stable video of surrounding waters, improving navigation safety and collision avoidance in congested waterways, ports, and coastal areas.
Ideal for port authorities and harbor operators, the system enables continuous visual monitoring of docks, restricted zones, and vessel traffic, helping to enhance perimeter security and respond quickly to potential threats or unauthorized access.
The camera supports comprehensive onboard visual observation, including deck surveillance, blind-spot monitoring, and engine room supervision, improving operational safety and crew efficiency in both commercial and work vessels.
When used in rescue and emergency response vessels, the system delivers reliable real-time video in low-light and adverse weather conditions, assisting crews in rapid target identification and effective mission coordination.
Well suited for patrol boats, fishing vessels, tugboats, and offshore support vessels, the camera improves operational visibility and reduces human error during docking, maneuvering, and daily maritime tasks.
Model | GQLW10V5K | GQLW2575V8K | |
Gyro-stabilization | Platform | 2-axis (3-axis optional) | |
Stable accuracy | ≤0.5mrad (RMS) | ||
Optical axis coincidence | ≤2 pixels | ||
Pan | 360° continuously; ≥100°/s | ||
Tilt | -90°～+90°; ≥100°/s | ||
Accelerate speed | ≥60°/s2 | ||
Visible light imaging | Sensor type | 1/1.8 '' Progressive Scan CMOS | |
Pixels | 200Mp | ||
Resolution | 1920(H) × 1080(V) | ||
Focal length | 8mm～560mm | 22.2mm～755mm | |
Optical/ Digital zoom | 70×/16× | 34× | |
Iris | F1.4～F5 | / | |
HFOV | 56.0°～0.8° (Wide-Tele) | 15.72°～0.48° (Wide-Tele) | |
Thermal imaging | Detector type | Uncooled Vanadium Oxide Microbolometer | |
Resolution | 640 × 512@17μm (12μm, 1280 × 1024 optional) | ||
Spectrum | 8～14μm | ||
NETD | ≤40mK@F1.0,300K | ||
Focal length | 25~100mm | 30～150mm | |
FOV | 24.6°×18.5°～6.2°×4.7° | 20.6°×15.5°～4.2°×3.1° | |
Focus/Zoom type | Electric focus/zoom; Auto-focus | ||
Digital zoom | 1×/2×/3×/4× | ||
Pseudo-color | White Hot / Black Hot / Rainbow / Iron Red / Lava / Sky / Purple Orange / Gradient Red / Gradient Green / Gradient Blue | ||
Image process | Nonuniformity Correction/Digital Filter Noise Reduction/Digital Detail Enhancement | ||
Laser Rangefinder | 5km/10km/15km/20km/30km/40km Optional | ||
General | OSD | Date, time, longitude, latitude, altitude, speed, azimuth and pitch information (displaying and blanking superimposed characters) | |
Encode | H.265/H.264 | ||
Interface protocol | ONVIF/GB28181 | ||
Communication interface | 1×RS422; 1×BNC; 1×HD-SDI; 1×RJ45 | ||
Power interface | DC30V | ||
RH | <90%RH | ||
Protection grade | IP66 | ||
Anti-salt-fog | PH value 6.5～7.2, continuous spraying for 48 hours, no surface change | ||
Operating temperature | -40℃～+55℃ | ||
Storage temperature | -55℃～+65℃ | ||
Consumption | ≤180W | ||
Weight | ≤80Kg | ||
Dimension | Φ500mm × 794mm | ||
Supporting fully customizable controls of every sensor, gimbal function and pan tilt size to your specifications.
