Gyro-stabilization | Platform | 2-axis |
Stable accuracy | ≤0.2mrad (RMS) | |
Pan | 360° continuously | |
Tilt | -90°～+90° | |
Pan speed | ≥100°/s | |
Tilt speed | ≥80°/s | |
Pan Accelerate speed | ≥100°/s2 | |
Tilt Accelerate speed | ≥80°/s2 | |
Repeat positioning accuracy | ±0.01°, ±0.003° | |
Day Camera | Sensor type | 1/1.8 '' Progressive Scan CMOS |
Pixels | 2Mp, 4Mp | |
Resolution | 1920(H) × 1080(V), 2560(H) × 1440(V) | |
Focal length | 5.5mm～180mm, 6.5mm～240mm, 6.1mm～317mm, 10～550mm, 15～850mm | |
Focus | Auto/Manual/Semi-auto | |
Minimum illumination | Color : 0.0005Lux/F1.4/AGC ON; Black and White : 0.0001Lux/F1.4/AGC ON | |
Optical fog penetration | Support | |
Thermal Camera | Detector type | Uncooled Vanadium Oxide Microbolometer |
Resolution | 640 × 512@17μm, 1280 × 1024@12μm | |
Spectrum | 8～14μm | |
NETD | ≤40mK@F1.0,300K | |
Focal length | 50mm, 75mm, 100mm, 25～75mm, 20～120mm, 30～150mm, 30～180mm, 25～225mm, 20～240mm | |
Focus type | Electric focus/Auto focus | |
Digital zoom | 1×/2×/4×/8× | |
Pseudo-color | White Hot / Black Hot / Rainbow / Iron Red / Lava / Sky / Purple Orange / Gradient Red / Gradient Green / Gradient Blue | |
Image process | Nonuniformity Correction/Digital Filter Noise Reduction/DDE | |
General | OSD | Date, time, longitude, latitude, altitude, speed, azimuth and pitch information (displaying and blanking superimposed characters) |
Encode | H.265/H.264 | |
Interface protocol | ONVIF/GB28181 | |
Communication interface | 1×RS422/1×RJ45 | |
Power interface | DC24V, DC48V | |
RH | <90%RH | |
Protection grade | IP66 | |
Anti-salt-fog | PH value 6.5～7.2, continuous spraying for 48 hours, no surface change | |
Operating temperature | -40℃～+55℃ | |
Storage temperature | -55℃～+65℃ | |
Consumption | Average power consumption ≤60W, ≤80W, ≤100W | |
Weight | ≤20Kg, ≤80Kg, ≤100Kg | |
Dimension | Φ280mm × 420mm, Φ500mm × 800mm, Φ600mm × 1000mm, | |
Laser Rangefinder | 5km/10km/15km/20km Optional | |
Laser lighting | 500m/800m/1500m/2000m/3000m Optional |
Start a free consultation with our engineer to discuss detailed and customization options.

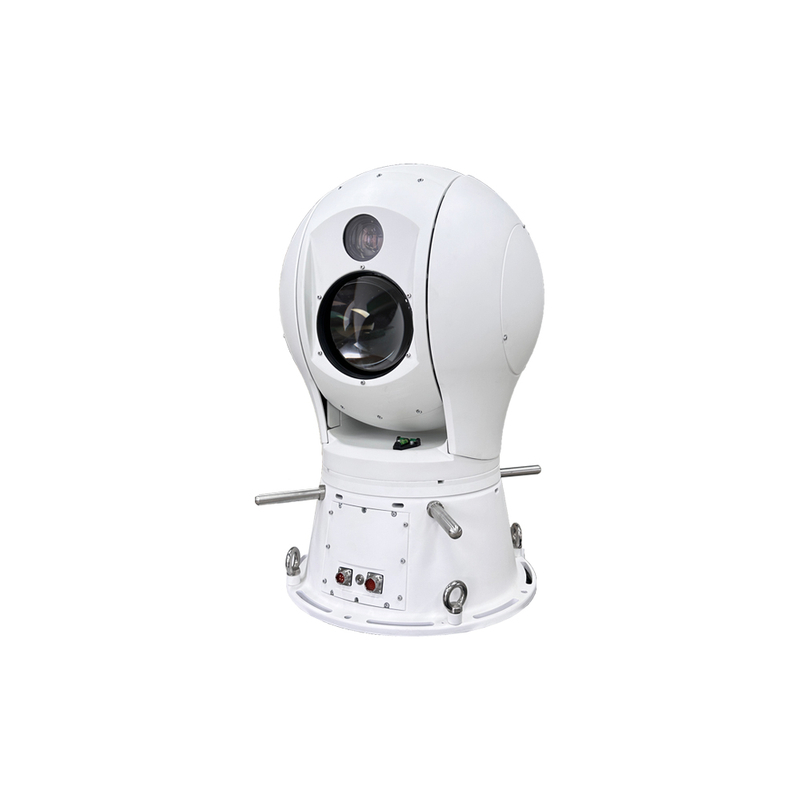

Optimized for harsh maritime conditions, the High-Precision Globe-Shaped Gyro Stabilization System delivers stabilized EO/IR imaging from shipborne and coastal platforms. The multi-axis gyro stabilization effectively compensates for roll, pitch, and yaw caused by wave motion, maintaining steady imagery during navigation and rough sea states. The system supports long-range detection and identification of vessels, small boats, and surface activities, enabling reliable situational awareness for maritime law enforcement, port security, and coastal monitoring operations.
Featuring a compact spherical architecture with continuous 360° rotation, the system delivers uninterrupted situational awareness across air, sea, and land domains. Equipped with high-precision multi-axis gyro stabilization, the system effectively compensates for platform motion caused by vibration, wind, wave impact, or high-speed maneuvering, ensuring consistently stable and clear imagery during long-distance observation and target tracking.
Patrol vessels and offshore ships
Coastal surveillance towers
Port and harbor security systems
Deployed on fishery patrol vessels or coastal monitoring platforms, the system delivers stable, long-range visual or thermal imagery for continuous target tracking and identification. It enables effective detection of illegal fishing activities and improves evidence collection reliability in rough sea conditions.
Ideal for power plants, ports, oil & gas facilities, pipelines, substations, and industrial parks, the system provides 24/7 wide-area surveillance with early intrusion detection capability, significantly enhancing the overall security level of high-value assets and sensitive sites.
When equipped with a thermal sensor, the system continuously monitors temperature anomalies and potential hotspots across large forested or grassland areas, enabling early-stage fire detection and rapid alarm generation to gain critical response time for emergency teams.
Mounted on emergency response vehicles, border patrol vehicles, or special mission trucks, the system maintains stable imaging while on the move, supporting real-time situational awareness, rapid scene assessment, and efficient on-site command operations. Integrated with drones or light aviation platforms, the gyro-stabilized system compensates for turbulence and platform movement, enabling clear aerial observation for missions such as border surveillance, search and rescue, power line inspection, and large-area reconnaissance.
Installed on port observation towers or shipborne masts, the system provides continuous monitoring of waterways, docking areas, and surrounding waters, supporting early detection of suspicious vessels, unauthorized access, and abnormal maritime behavior.
Supporting fully customizable controls of every sensor, gimbal function and pan tilt size to your specifications. Click here to make a free enquiry
